1.00mm Pitch Wire To Board Connectors series product

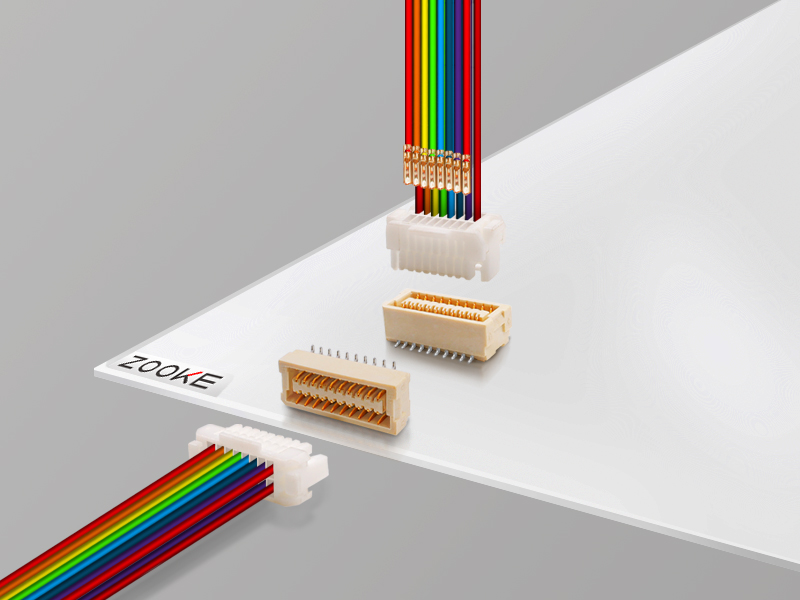

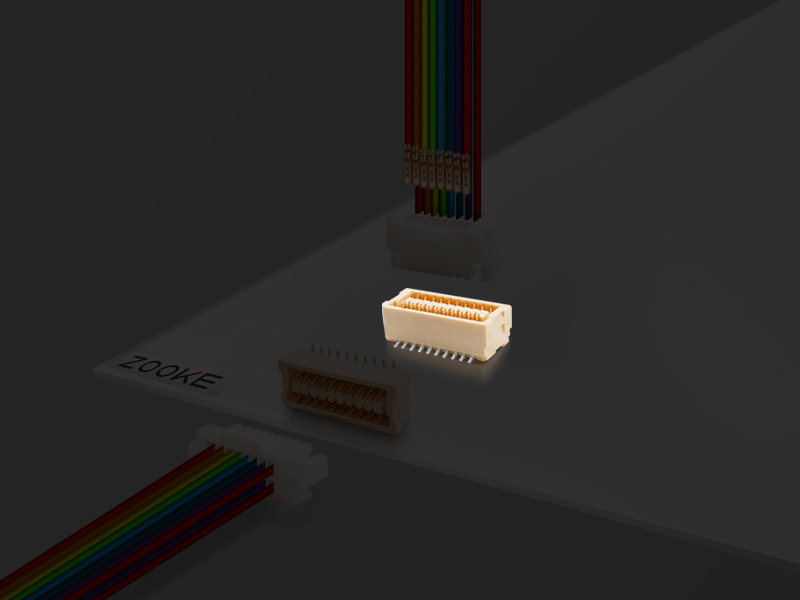

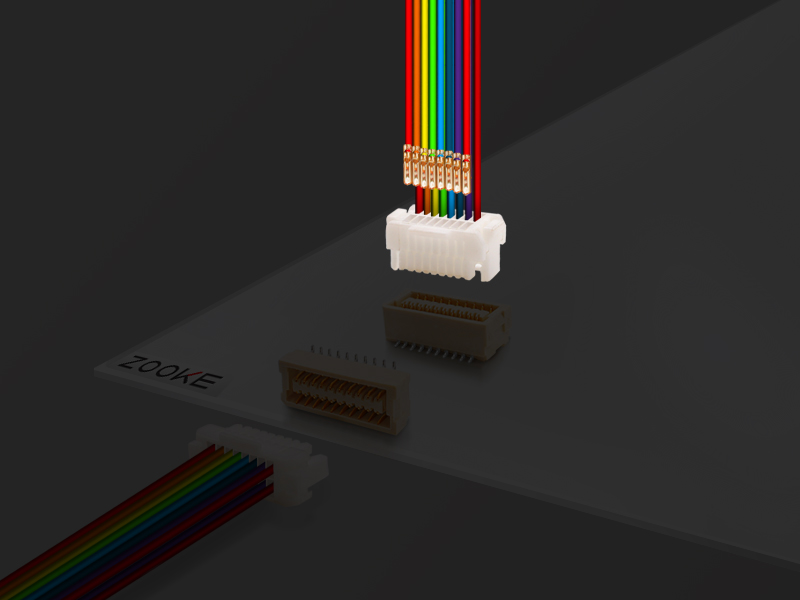

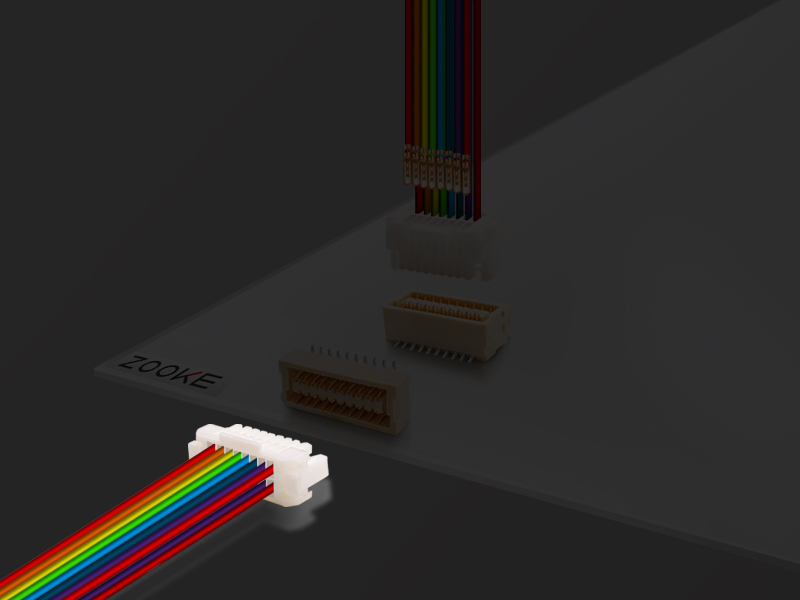

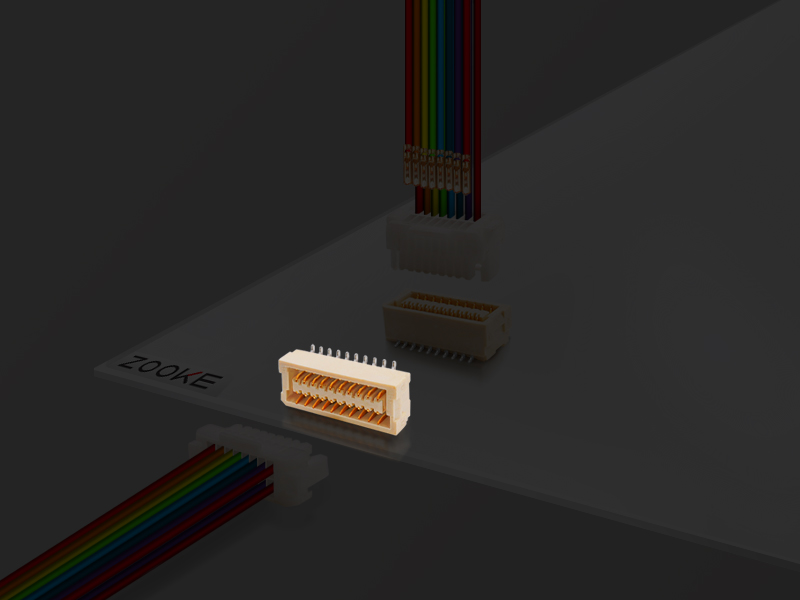

1.00mm Pitch Wire To Board ConnectorsZOOKE1006 SPECIFICATIONS Current rating：1A AC/DC Voltage rating：50V AC/DC Withstanding voltage：200V AC/miuute. Contact resistance：30MΩ Max. Insulation resistance：100MΩ Min. Temperature range：-40℃~+105℃ Wire range：AWG 28#~32#     Item Material Pin QTY Housing PA66 UL94V-0 2*04~2*25 1000Pcs/Bag Wafer PA66 UL94V-0 2*04~2*25 1000Pcs/Reel Terminal Phosphor Bronze - 20,000Pcs/Reel Wire to board connectors with a 1.00mm pitch have become increasingly popular in the electronics industry due to their compact size and high reliability. A wire to board connector is a type of electrical connector that allows for the connection of wires to a printed circuit board (PCB). These connectors are commonly used in applications where a durable and secure connection between wires and the PCB is required. The 1.00mm pitch refers to the distance between each pin or contact in the connector. A smaller pitch allows for more contacts…
