12volt hydraulic power unit

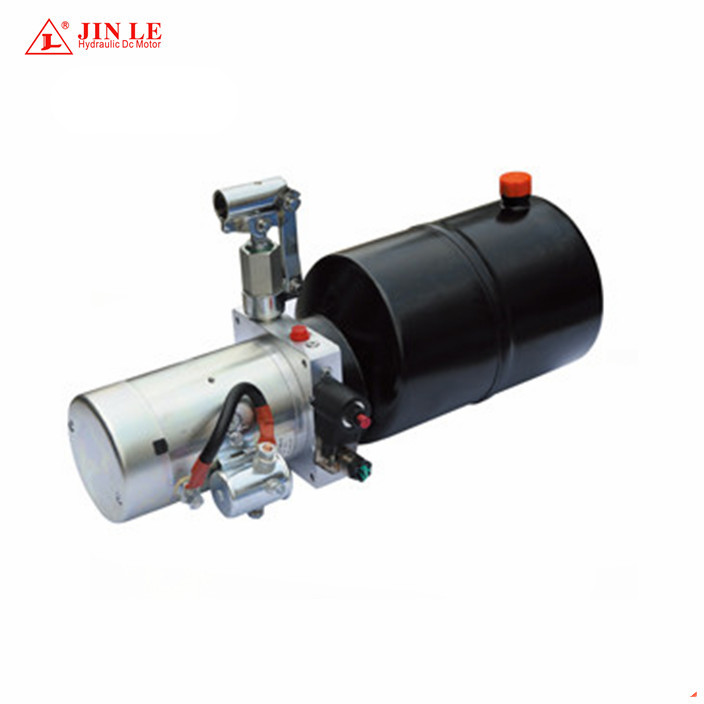

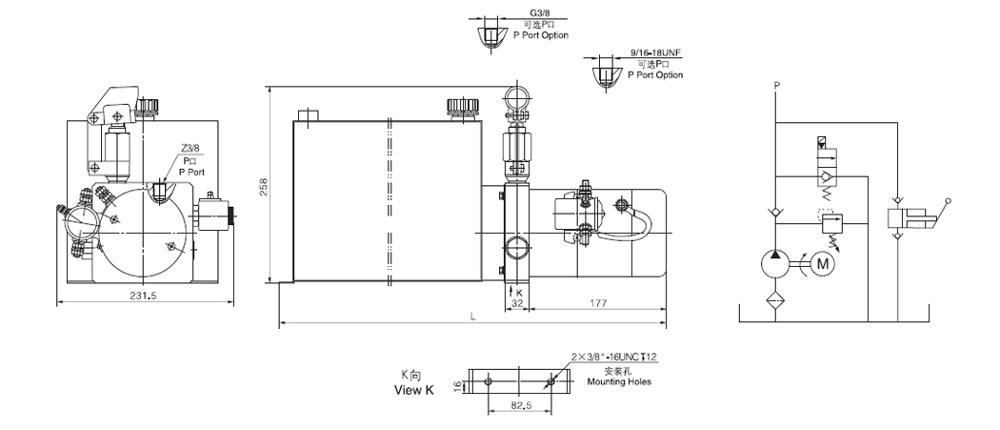

  small 12 volt hydraulic power unit  for tipper trailer  Product Description This power unit is designed exclusively for small tipper, consisting of high pressure gear pump, DC motor, multi-functional manifold, valves and tank, etc. The hand pump with a displacement of 8cc per stroke works as a backup power souce of lifiting the tipper in case of power failure with the lowering movement is activated by the solenoid valve.   Model Specifications of small 12 volt hydraulic power unit for tipper trailer :  Model Motor Volt Motor power Rated Speed Displacement System pressure Tank Capacity L(mm) YBZ-F2.1E1W27/WUCAK1 12VDC 1.5KW 2500RPM 2.1mL/r 20MPa 12L 559 YBZ-F2.1H1W27/WUCAK1 20L 791 YBZ-F2.5E2A27/WUCBK1 24VDC 2.0KW 2.5mL/r 18MPa 12L 559 YBZ-F2.7H2A27/WUCBK1 2.7mL/r 20L 791 Remark: 1.Please get in contact us for the different pump displacement, motor power or tank capacity.2.The manual override function is avail…

hydraulic power unit switch solenoid armature O.D114MM O.D127MM
