2 Poles Screwless Lever Nut Push Wire Connectors

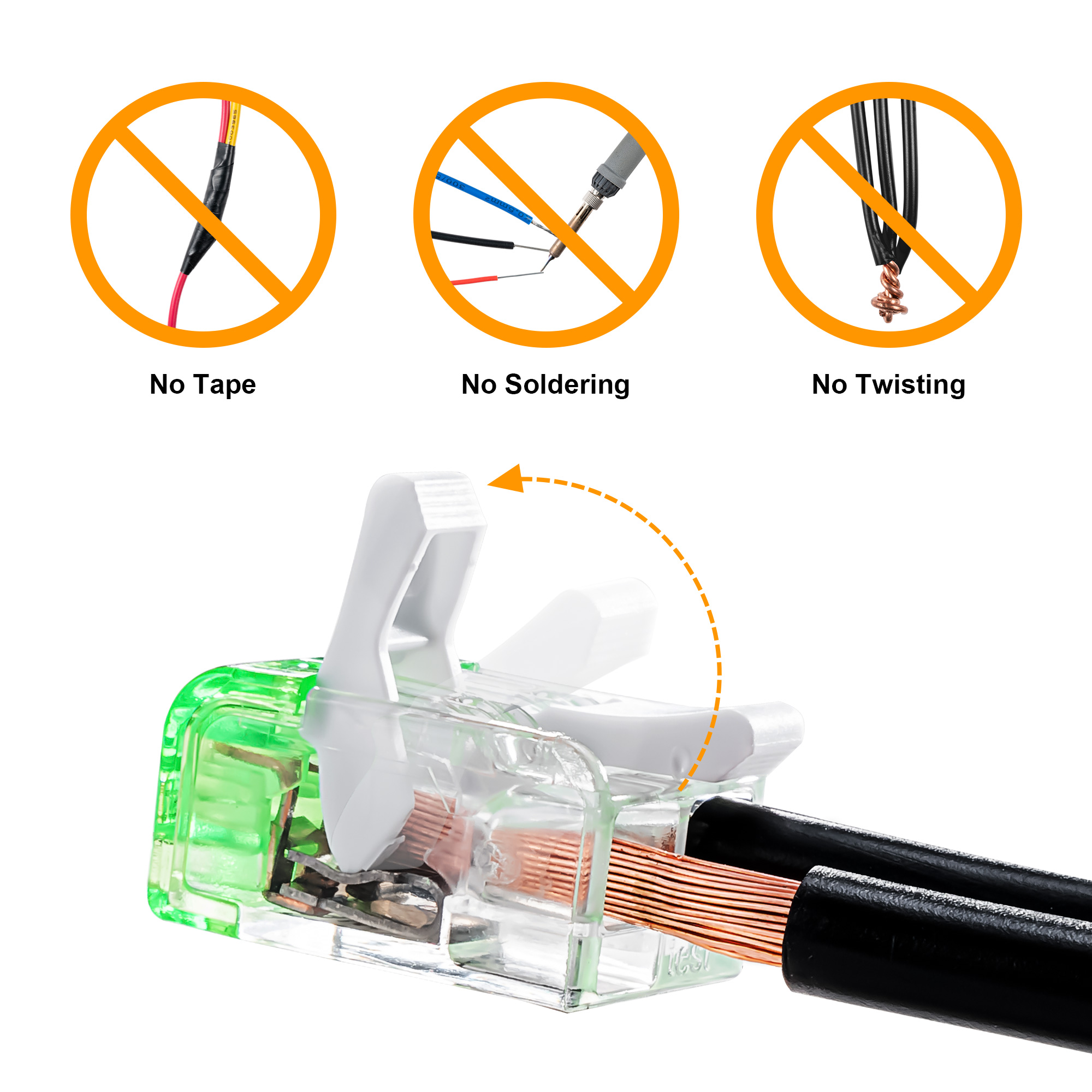

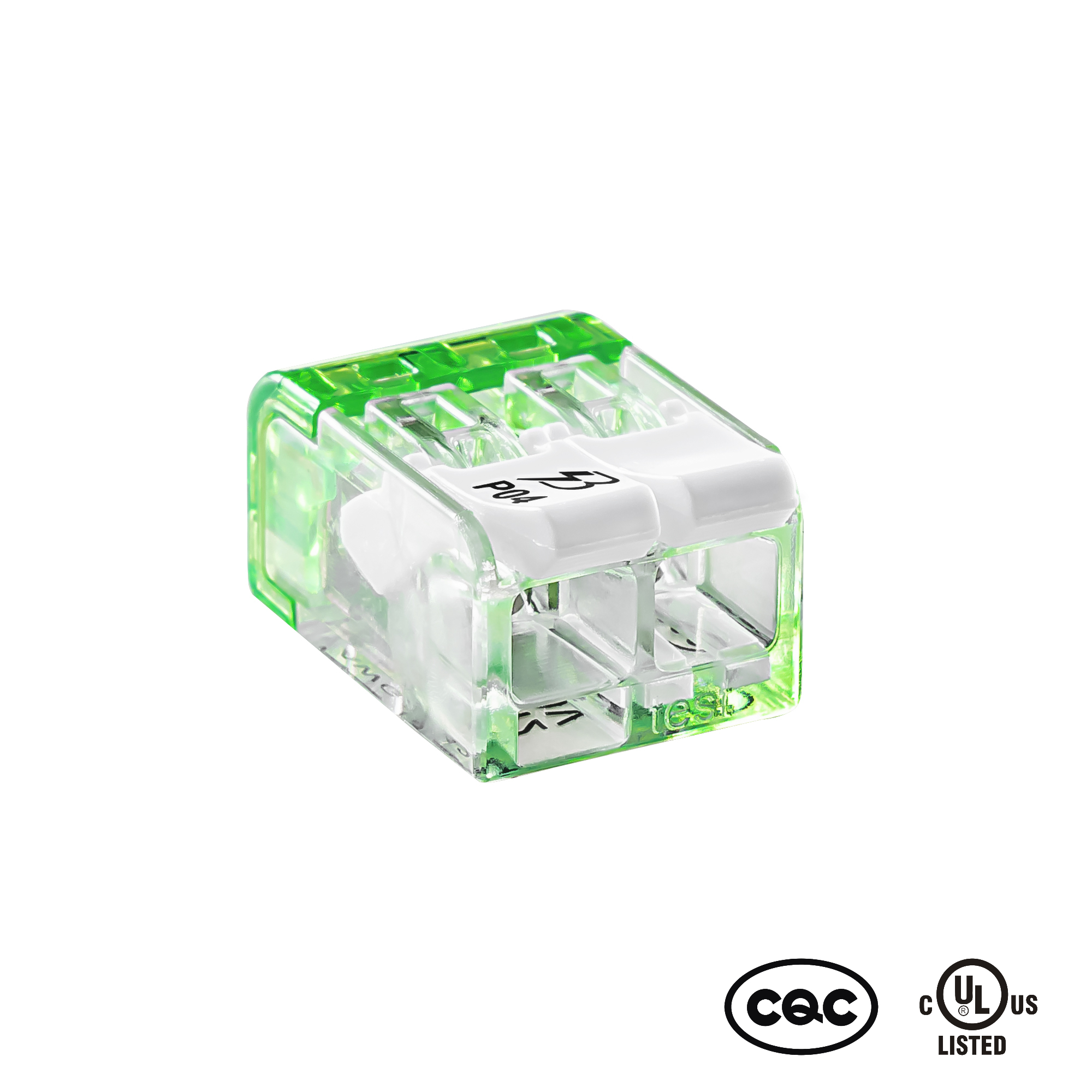

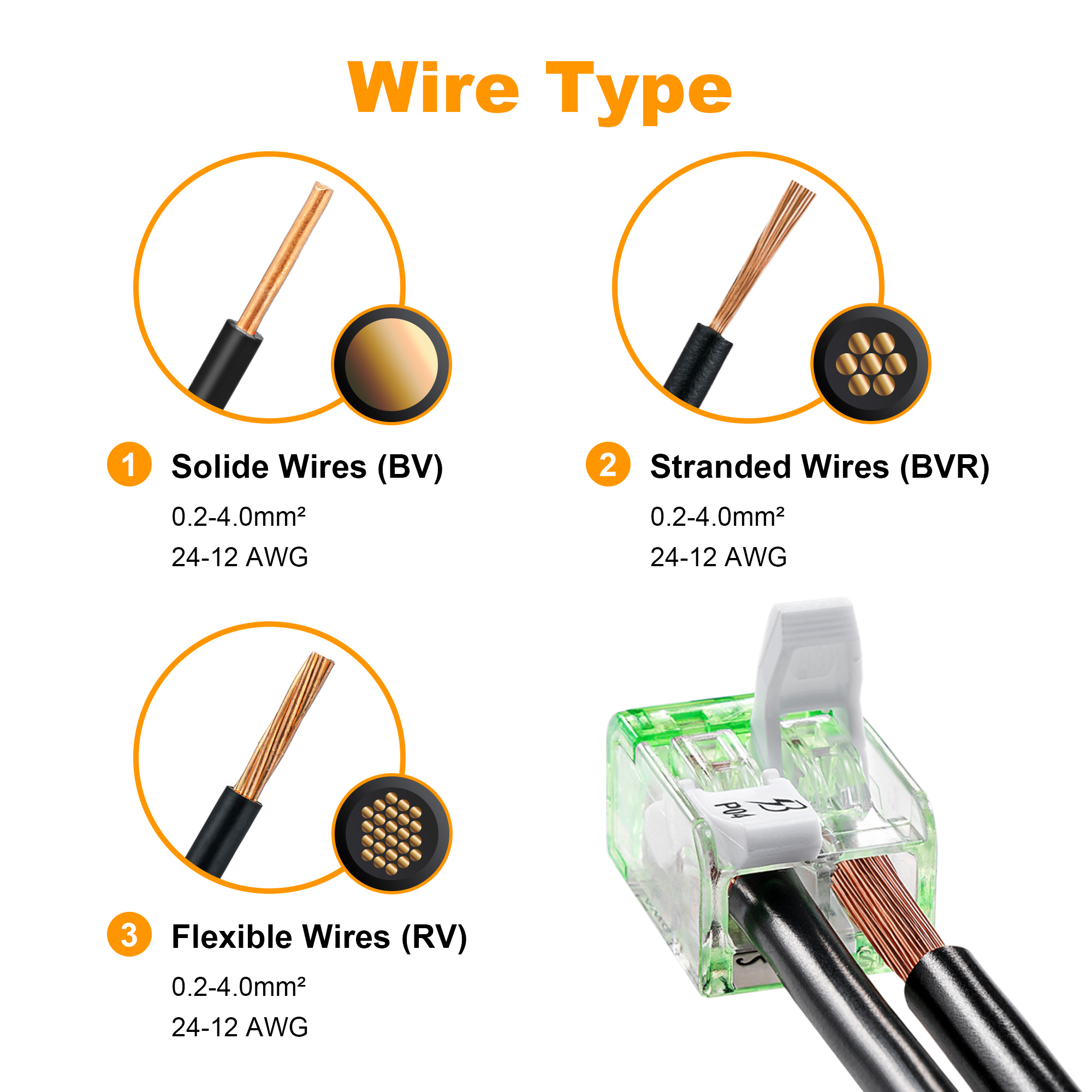

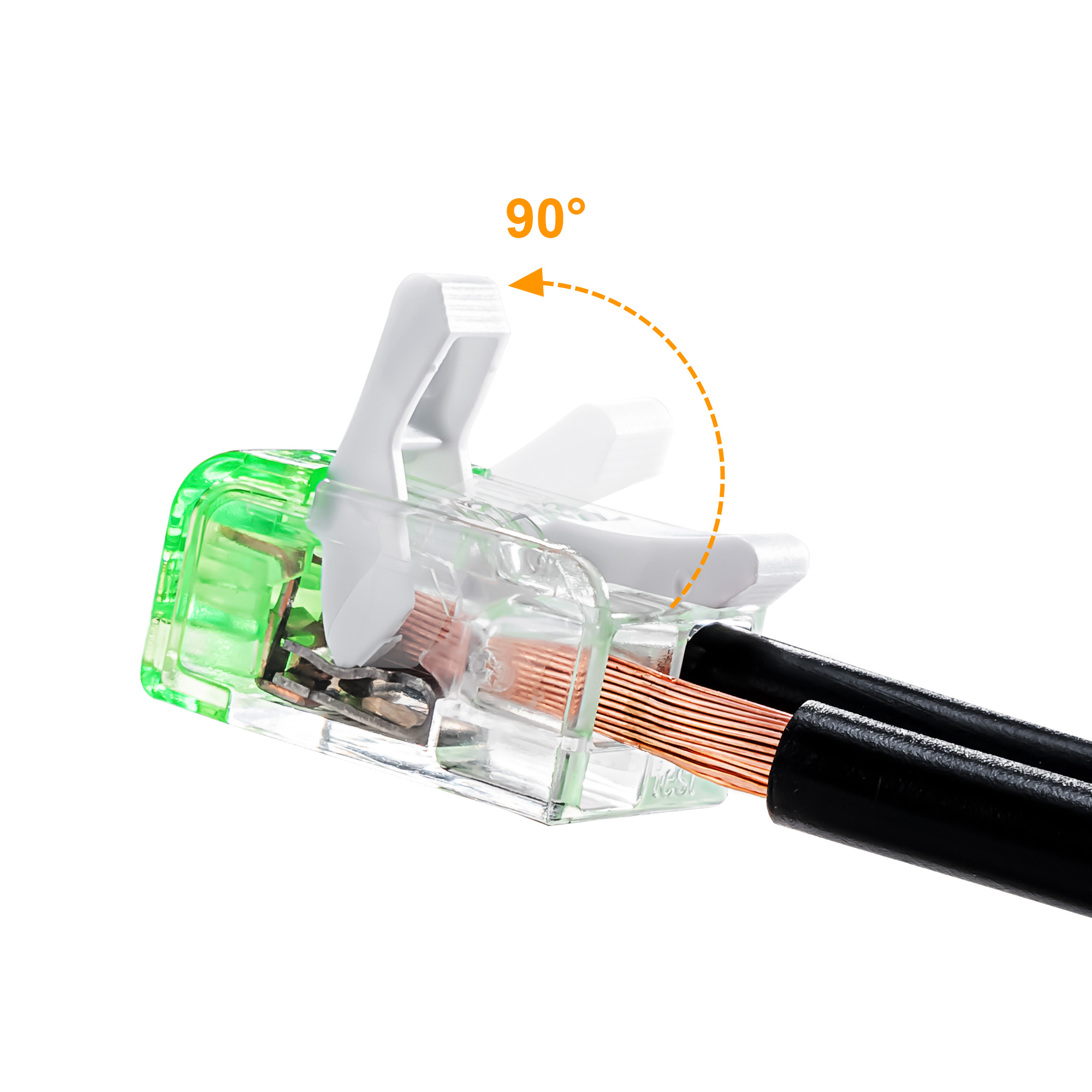

  Product Details:     P04 Series Screwless Lever Nut Push In Wire Connectors With VDE CE CQC UL ENEC KEMA. 2 Poles Unipolar Screwless Lever Nut Push In Wire Connectors With Release Button Can Be Rewirable, The Transparent Shell Makes You Easier To See The Wiring In Real Time.       1. Connector specification:       size of connector:20.60mm×13.00mm×10.60mm 2. Annual Production:       40, 000, 000PCS/Year 3. Material:        Polycarbonate (V2)       Item No. P04-2P Electrical Data   IEC/EN UL Rated Voltage (V) 450 600 Rated Current (A) 32   Ambient Temperature Polycarbonate T85 90℃ Connection Data   IEC/EN UL Cross Section Solid conductor 0.2-4.0mm² AWG 12-24 Stranded conductor 0.2-4.0mm² AWG 12-24 Flexible conductor 0.2-4.0mm² AWG 12-24 Strip length (mm) 13  Means of connection push in Rew…
