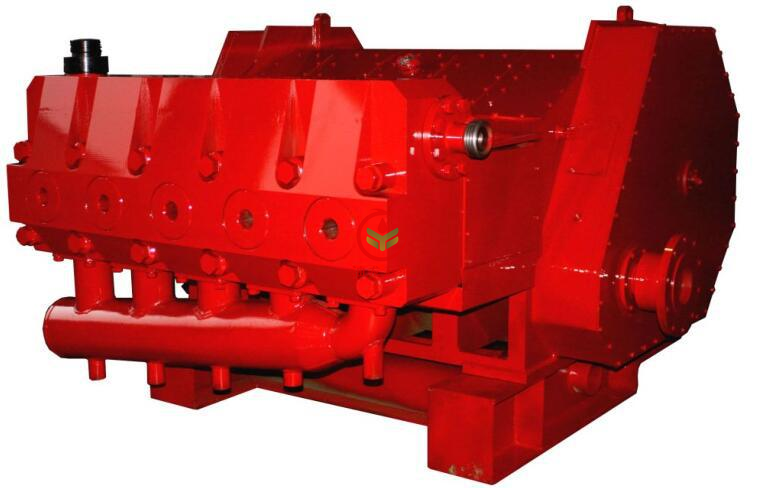

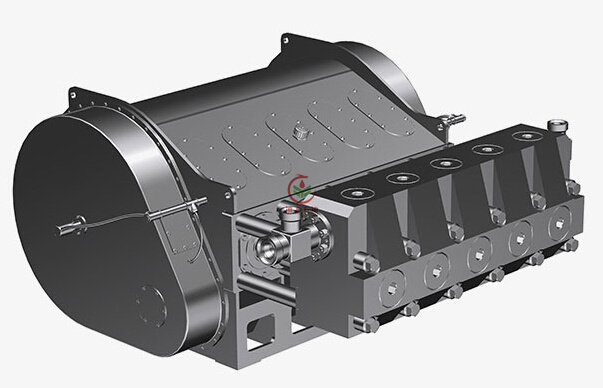

2800 Quintuplex Large power Plunger Pump

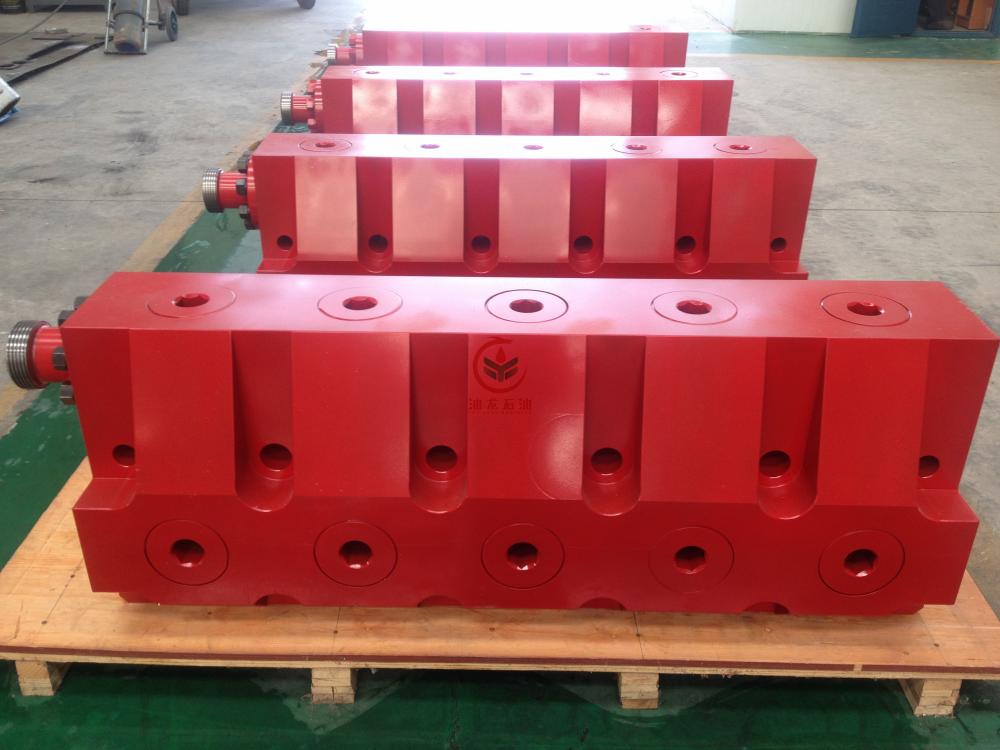

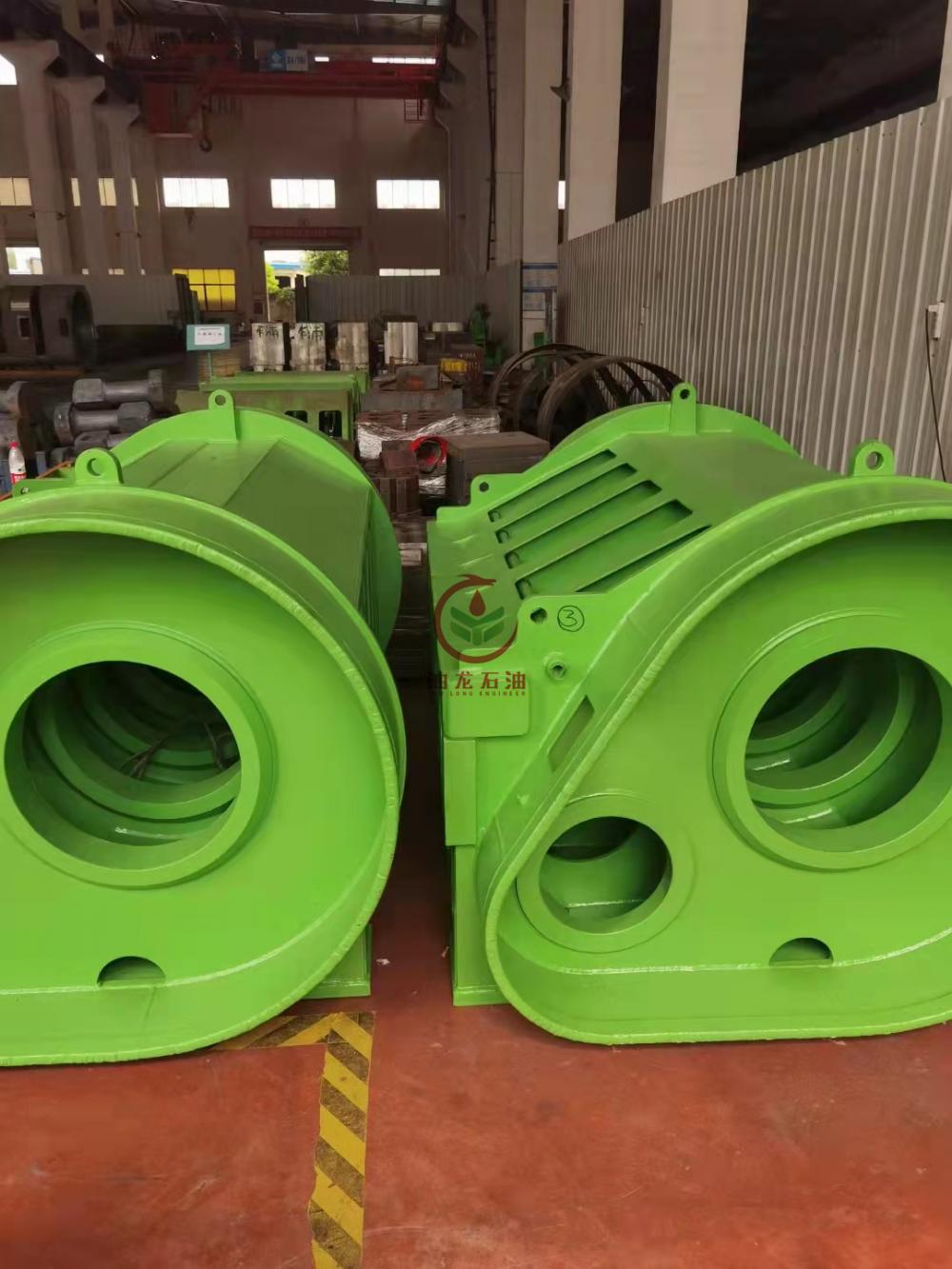

2800 Quintuplex Large power Plunger Pump Henan Youlong 2800 Quintuplex large power plunger pump is applicable for Fracturing, Cementing, Sand proof, acidizing etc. The maximum pressure is up to 140MPa. This pump is the largest power quintuplex plunger pump on the market. It is modern design..Penetrating type connecting bolts make the connection more reliable; Detachable packing box make the maintenance more convenient. （1）Power end Technical parameters Power Braking (Max) 2,800HP (2,088KW) Connecting rod Load (Max) 229,305 lbf (1,020KN) Stoke 8” (203.2mm) Driving Model Double cylinder oblige gear transmission Speed rations 6.333:1 L×W×H mm 91.38*91.42*47.44 in. (2,321*2,322*1,205mm) Weight 20,900 lbs (9,500Kg)   2) Fluid end Item Model Specification Monthly output/ Set L×W×H mm Fluid end 2800-3.75” 3.75”、4” 20 1600*429*616   Specificati…
