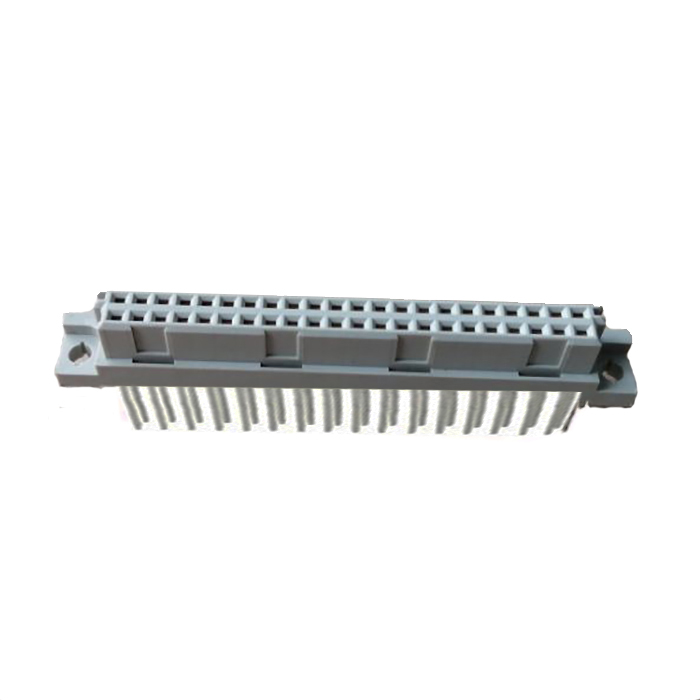

32 Position Vertical Female Type Half B DIN 41612 / IEC 60603-2 Connectors

Product introduction DIN41612 connectors mainly have parallel connection and vertical connection. There are 2A, 6A, 15A, etc., signal type, power type and mixed type of different media, the product has a wide range of applications. There are four installation forms of backplane, parallel board, common panel, and wire-to-board, which can quickly connect and improve work efficiency. 32 Position Vertical Female Type Half B DIN41612 Connectors Specification Connector Category: Din 41612 Eurocard Connector丨Solder Din 41612 Connector丨IDC Din Connectors丨High Power Din Connector丨 Current Rating:  2.0Amp Insulation Resistance:   1000MΩ min.at DC 100V Contact Resistance:   20mΩ max Withstand Voltage:   AC 1000V For 1 Minute Operating Temperature:  -55°C  to  +105°C Contact Material:  Brass Contact Plating:   Au or Sn Over Ni Insulator Material:   PBT…
