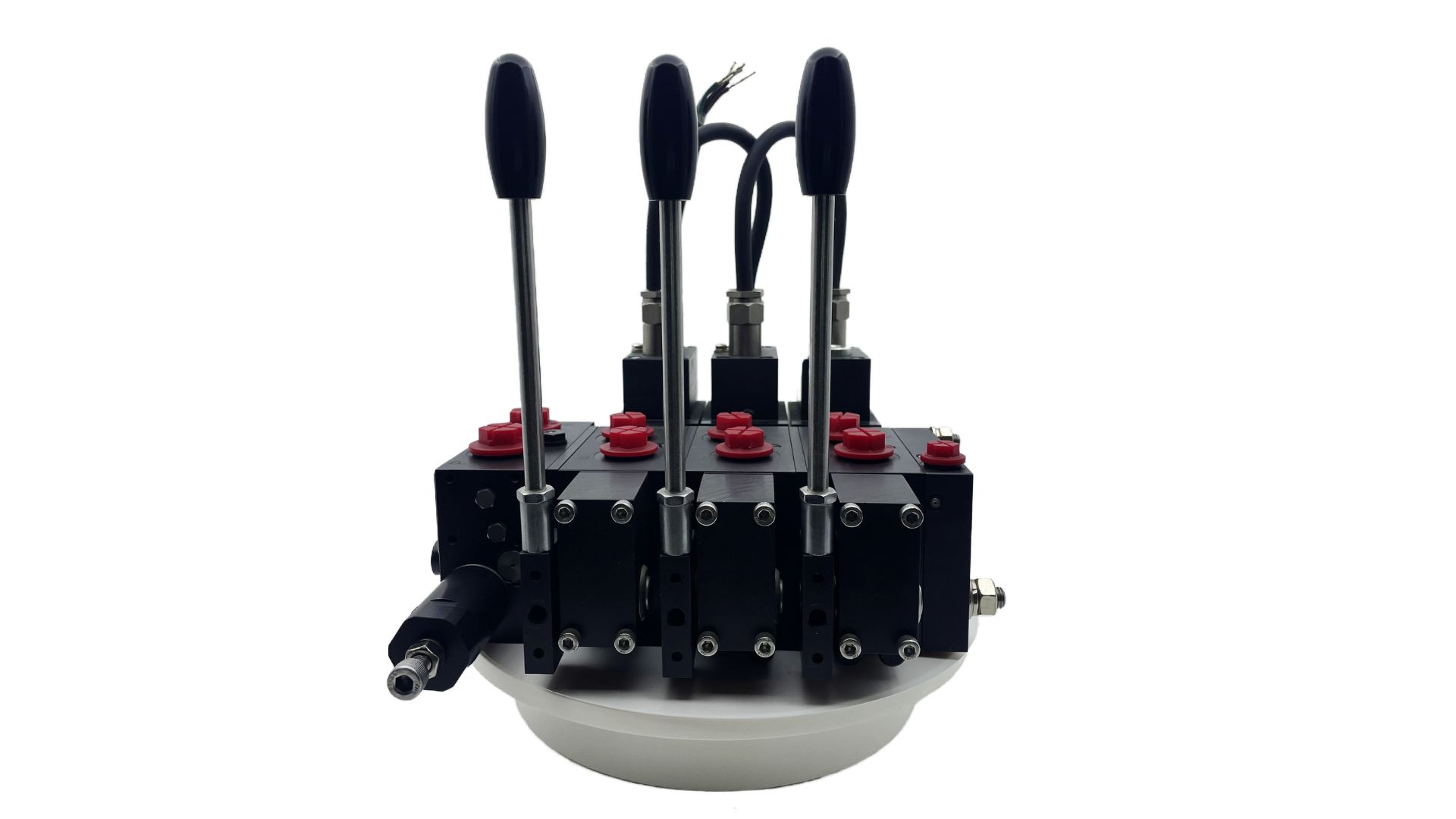

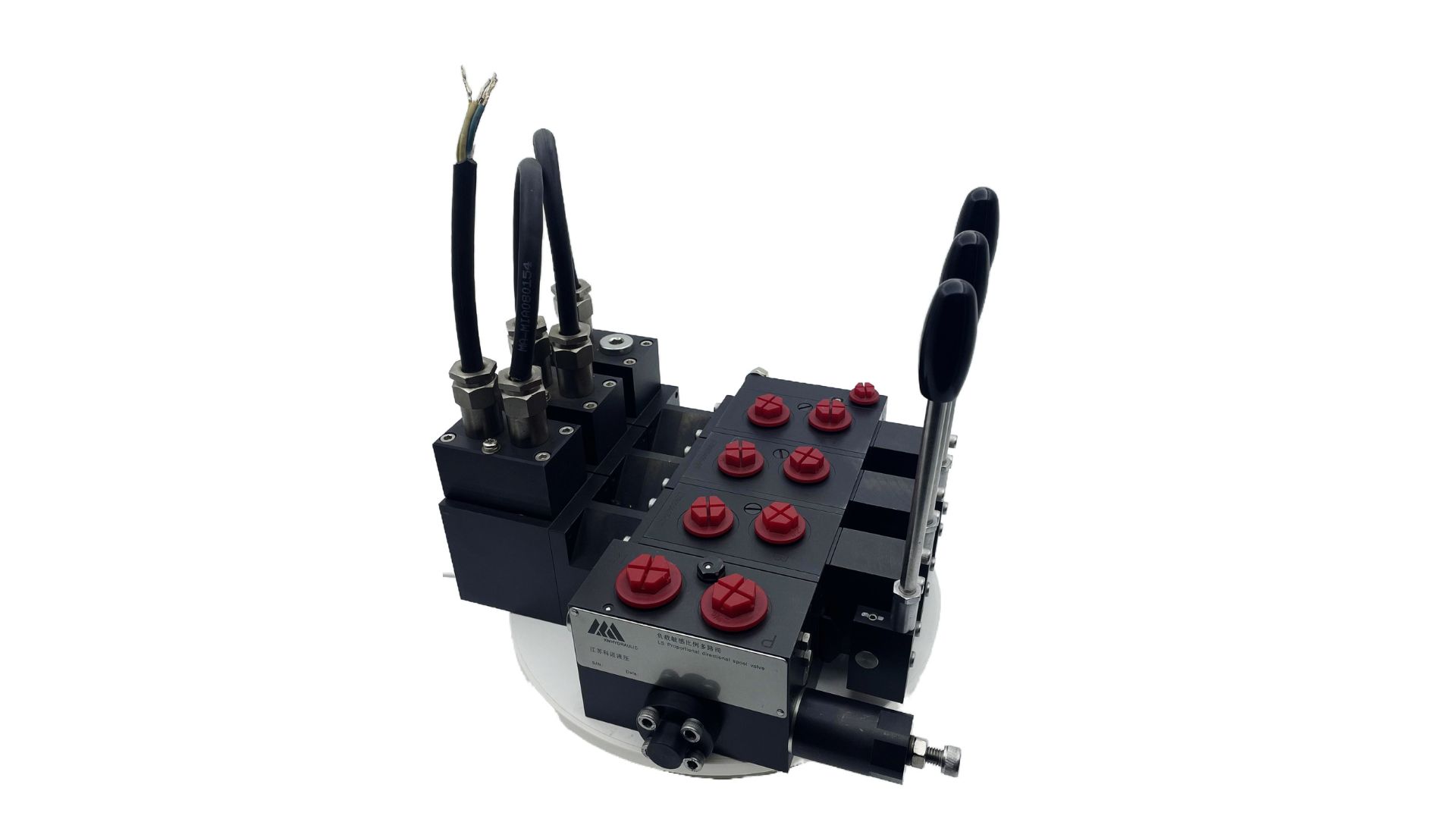

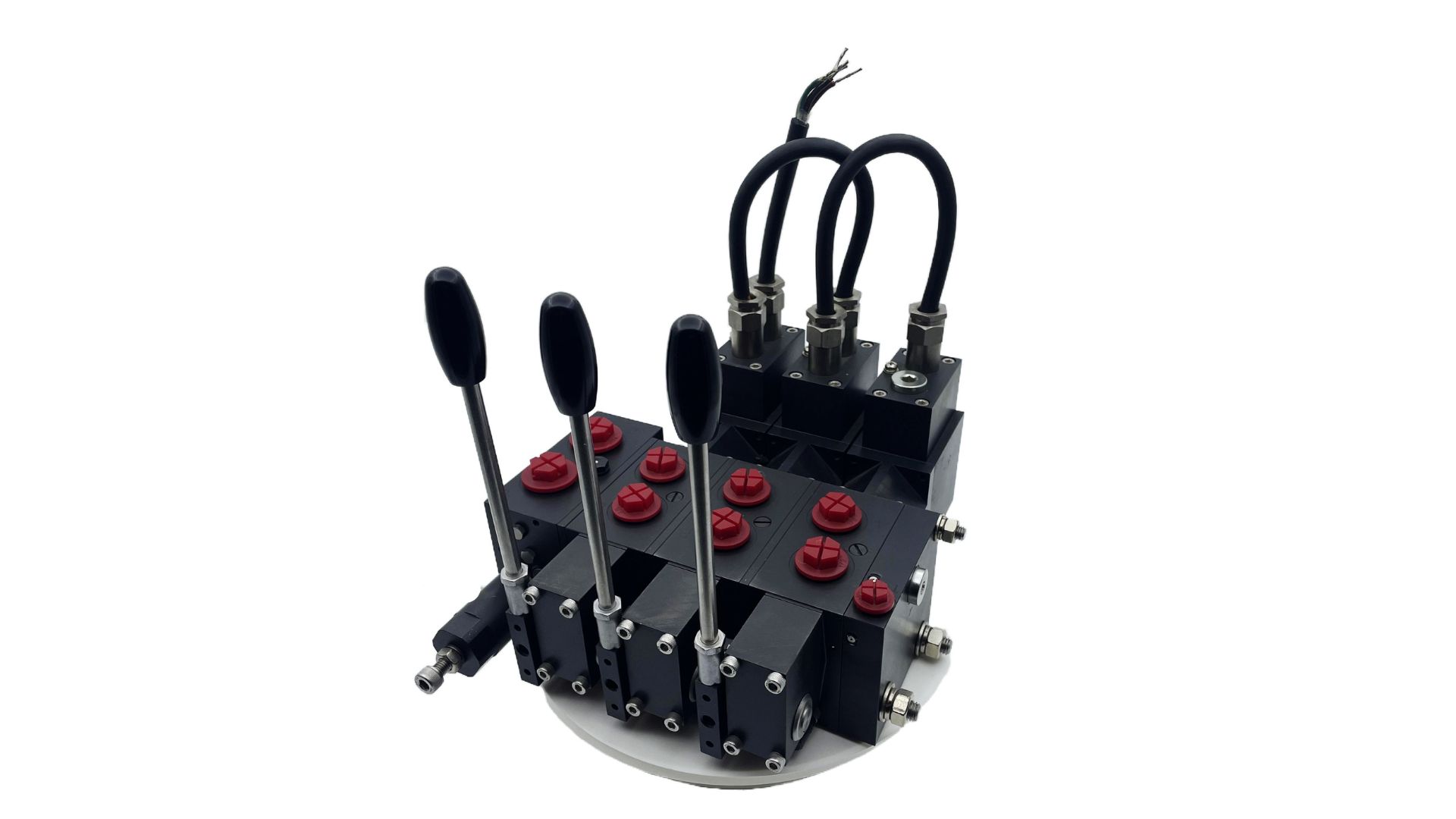

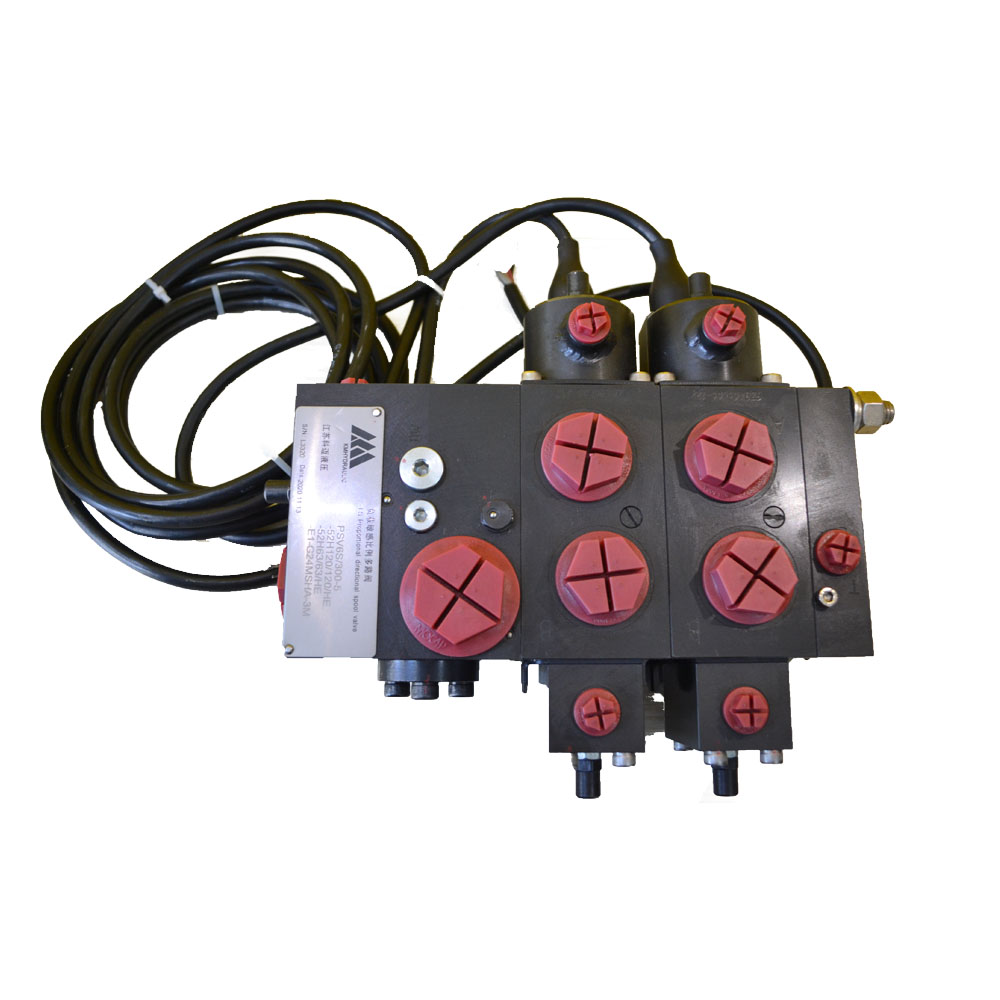

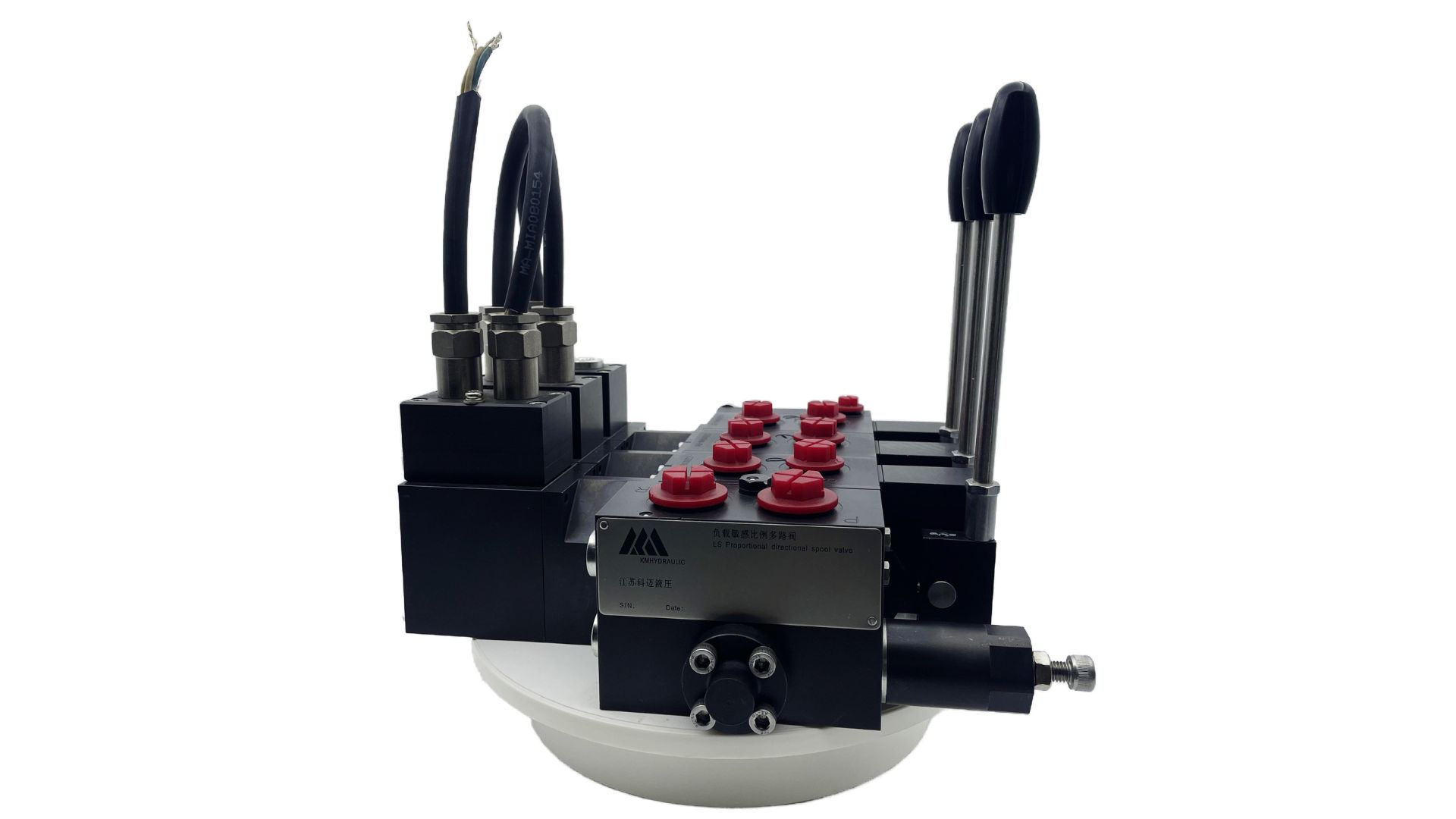

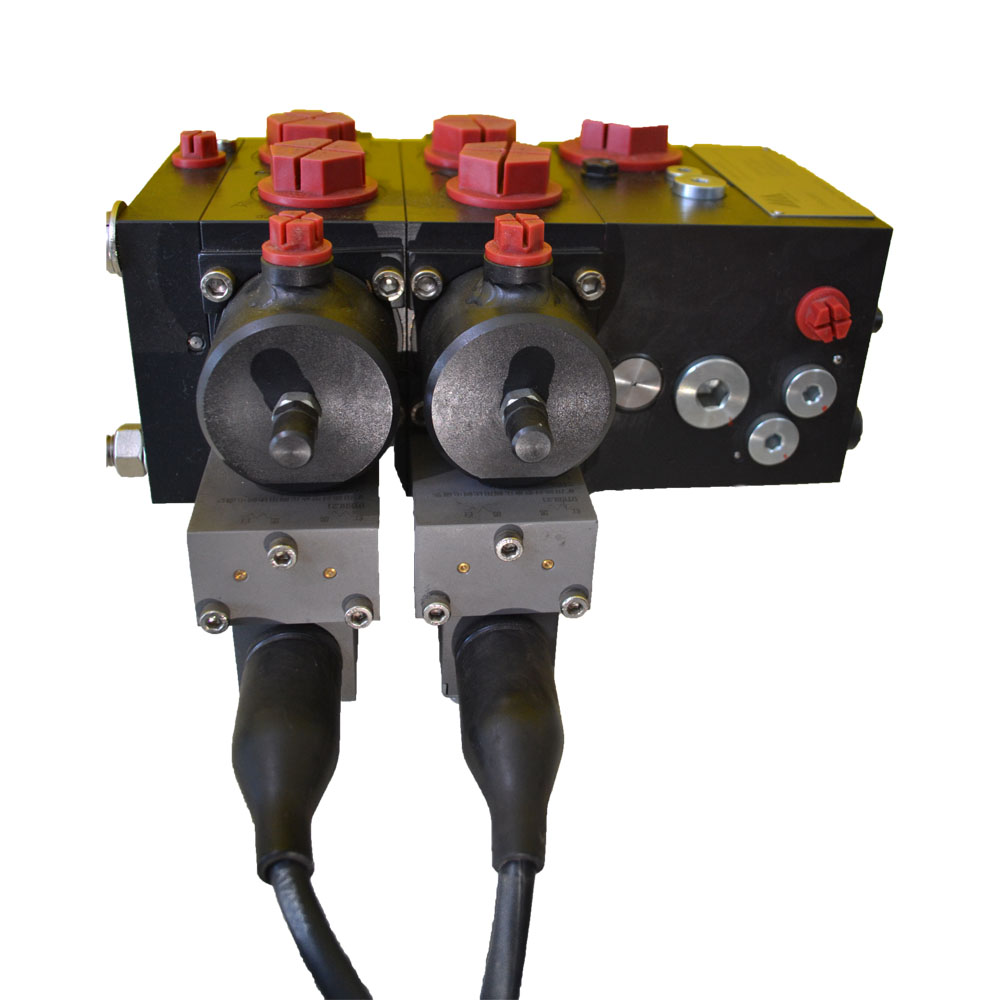

5 series explosion-proof + coal-safety proportional multi-way valve is widely used in coal mine and petroleum equipment. The company already has all types of products similar to imported products. New and old customers with special needs are also welcome to negotiate and consult.
Working pressure: Pmax=420bar(6000psi)
Flow: Qmax=210L/min(55g/min)
Voltage: 12V DC; 24V DC
Product application: construction machinery, lifting machinery, municipal vehicles, special vehicles, mining machinery, coal mining machinery, petroleum machinery, drilling equipment, etc.
Connector
The oil inlet of the multi-way valve has a pressure oil inlet P and a return oil tank port R, as well as a control port LS and a measurement port Z, M.
• According to the type of oil source, fixed and variable pumps
• G1, G1 1/4 according to the connection thread specifications of P and R ports
• With or without pilot control oil supply
• With or without pressure limiting
• Electromagnetic unloading with or without pu…
