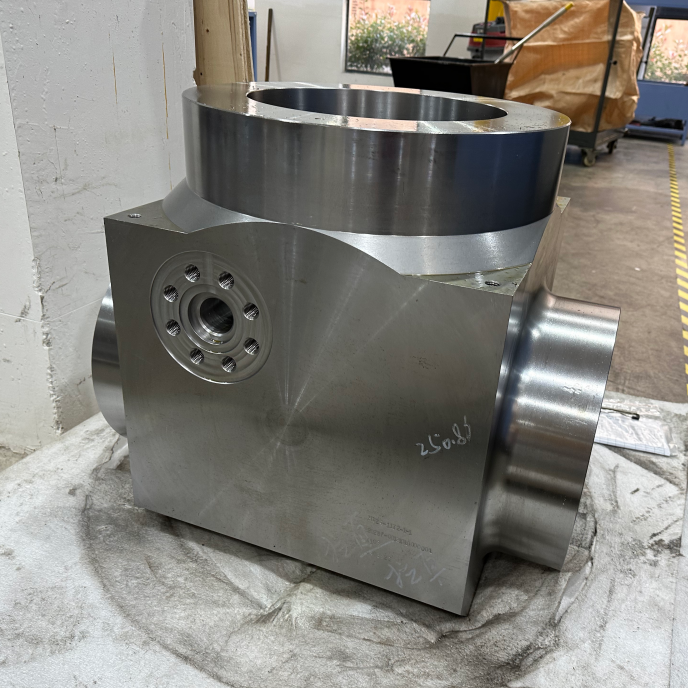

A350 LF2 Class1 Ball Valve Cover Ball Forging

SA350 LF2 Q + T Heat Treatment Forged Valve Body With  Rough Machining Hardness Less Than 187 HB ASTM ASME Standard   ASTM/ASME Standard A105 chemical composition （%）   C Si Mn S P Cu Ni Mo V Cr ≤0.30 0.15-0.30 0.60-1.35 ≤0.040 ≤0.035 ≤0.40 ≤0.40 ≤0.12 ≤0.03 ≤0.30   Heat Treatment Quenching+Tempering   Mechanical Properties   Tensile Strength Yield Strength Elongation Reduction of area LF2 Class1 and LF2 Class 2 ≥485Mpa ≥250Mpa ≥22% ≥22%   Hardness ≤187HB      Temperature Min average impact enery Min impact energy LF2 Class 1 -46 ℃ 20J 16J LF2 Class 2 -18 ℃ 27J 20J   Brief Introduction of Valve Forging: Largest OD:5000mm Largest Weight:15000kgSurface Finish 3.2um Ra Or As Required.Forging Reduction Min:3.1 Or As Required.   Forged tee is widely used in industry. Tees are mainly used to change the direction of pipes or connect pipes of different dia…

Valve Forging Wellhead Product Forging Ring Forging Sleeve Forging Shaft
