Introduction
Function:
The

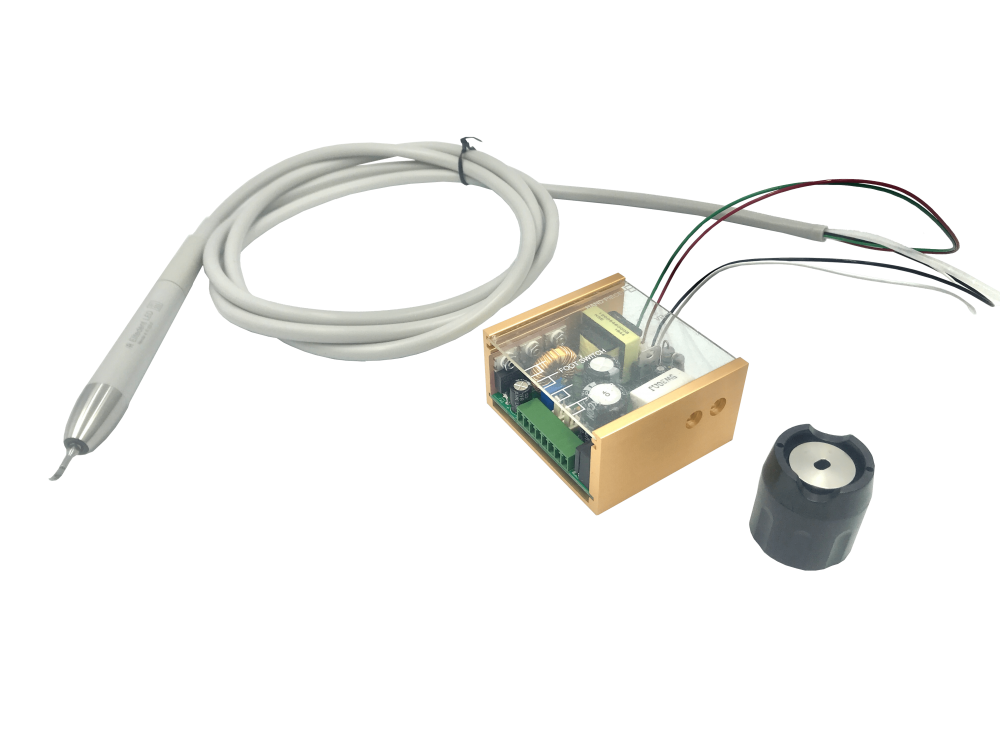

Piezo Tech Ultrasonic Scaler is designed for use in prophylaxis treatments
periodontal, and other areas of operative dentistry. When used in prophylaxis
treatment, the unit operates with a fine warm water spray, requiring little of
the physical exertion necessary with hand instruments. It easily and effectively
removes stubborn calculus and stains both supra gingival and sub gingival,
leaving crown and root surfaces clean and smooth.
Specification
Power
Board:
Voltage: 24V AC, 50/60Hz
Wattage consumption: Max. 50 W
Vibration frequency: 28 - 32 kHz
Suggested water pressure: 20 to 60 psi
Dimension:
Height: 36 mm
Width: 70 mm
Depth: 63.2 mm
Weight: 185 g
Handpiece tubing length: Approx.2.1 M
Operation
Environment:
Ambient temperature: +10℃ – +40℃
Relative humidity : 30%~75%
Atmospheric pressure: 700 hPa – 1060 hPa
Transportation
and Storage Environment:
Ambient te…
