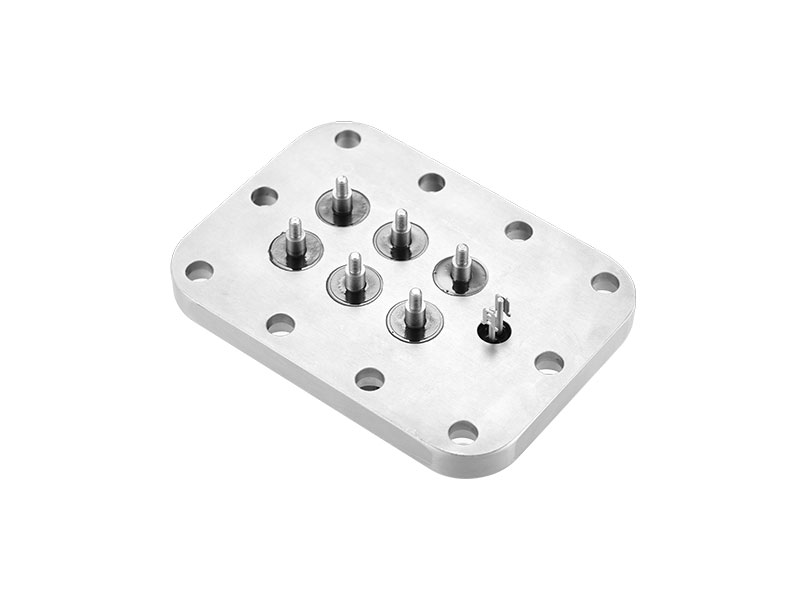

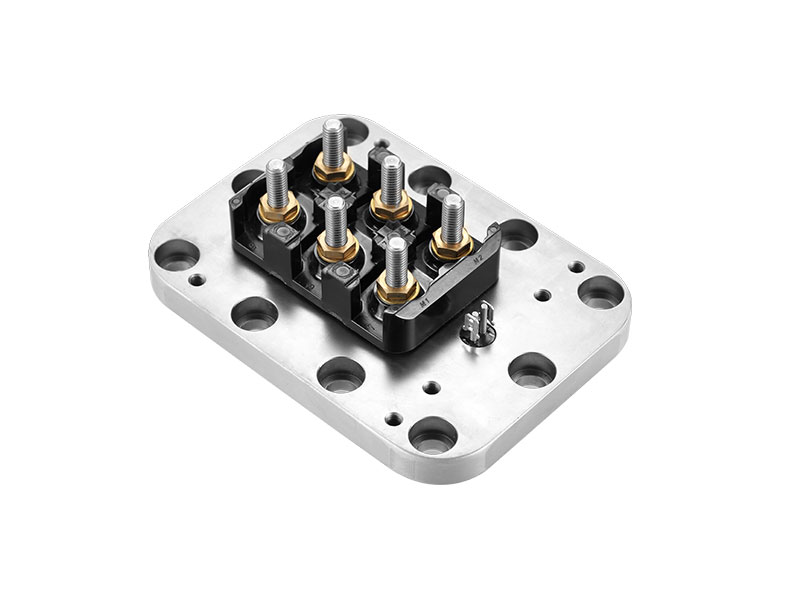

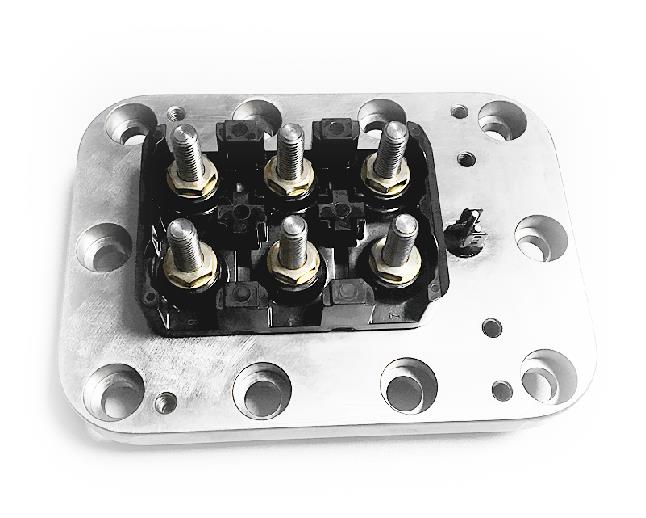

Commercial Semi-Enclosed Compressors Connecting Board

Application field. Application field Semi-enclosed piston compressor, semi-enclosed screw compressor. Product advantage. Product advantage Semi-enclosed compressors ensure efficient refrigeration even in environments with frequent temperature changes. Under non-high pressure conditions, semi-enclosed compressors and connectors are usually used. This type of connector is fixed in a semi-enclosed compressor by means of screws, unlike the common household refrigeration system or air conditioning compressor end design. The semi-closed compressor and its crimping terminal have a variety of specifications design, can carry different electrical flow. Material information Plate iron, stainless steel Pin iron - chromium, iron - nickel, copper core iron chromium, etc Vitreous sodium barium glass Insulating material silica gel, phenol resin Other Tab Technical specification Air tightness ≤1x10-9 Pa·m3/S Insulation resistance > 1000 Mω /…

25-40HP Compressor Series Sealed Terminal Blocks 10-25HP Compressor Series Sealed Terminal Blocks 144-576V Series Electric Compressor Three-phase Sealed Terminal Screw Compressor Series Sealed Terminal Board 3-5HP Compressor Series Sealed Terminal Blocks
