Ethylene cracking furnace radiant section tube

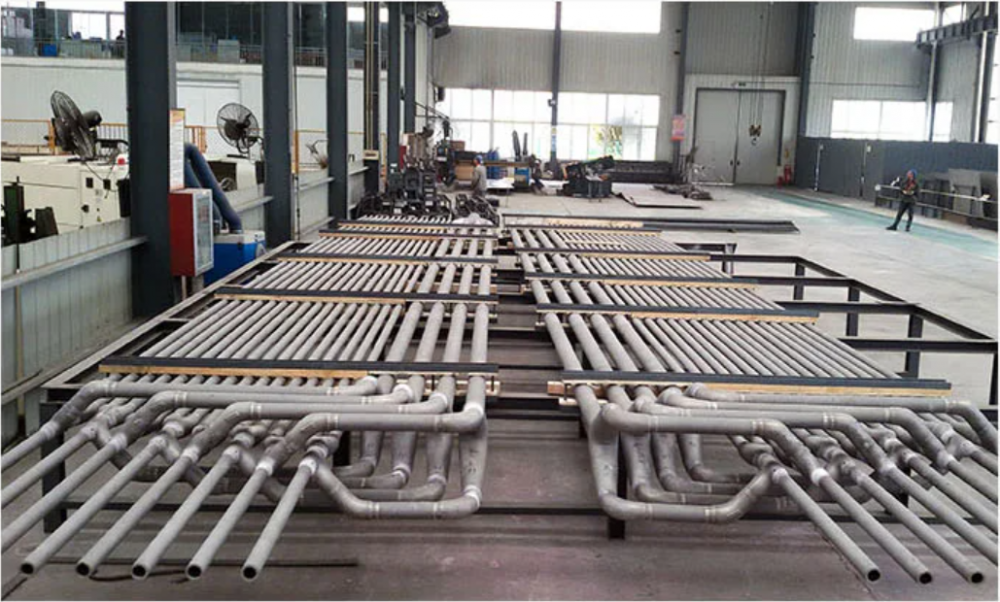

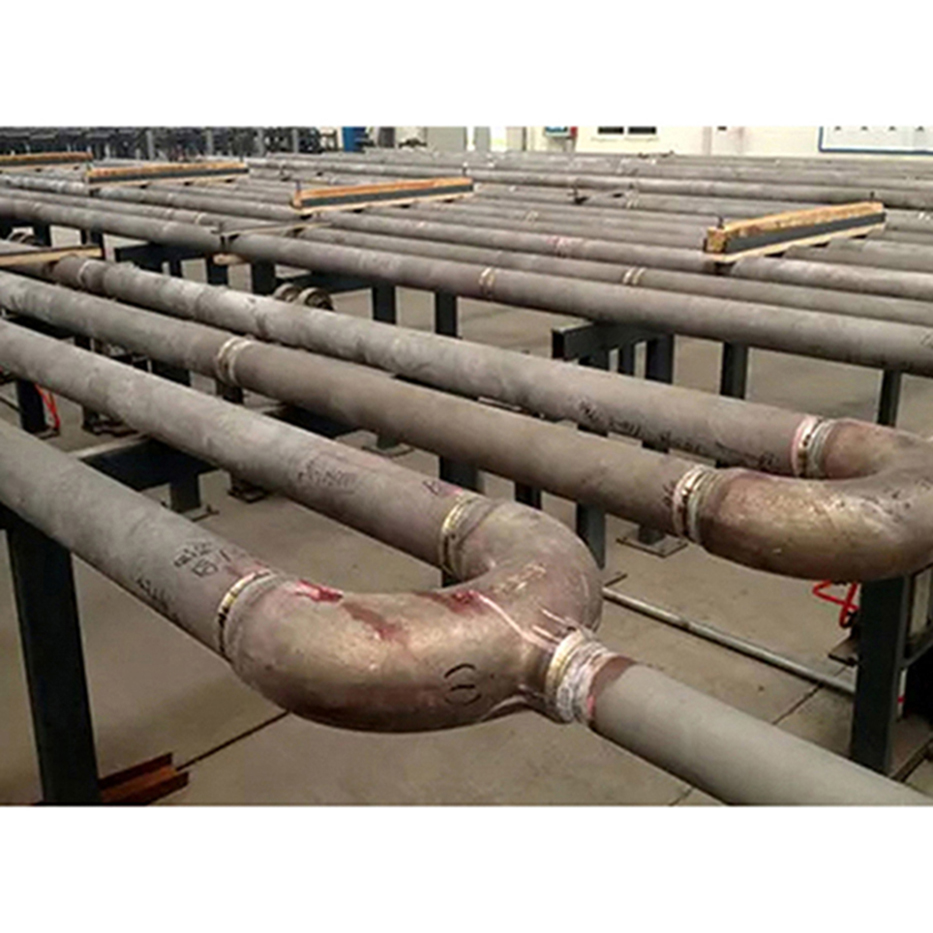

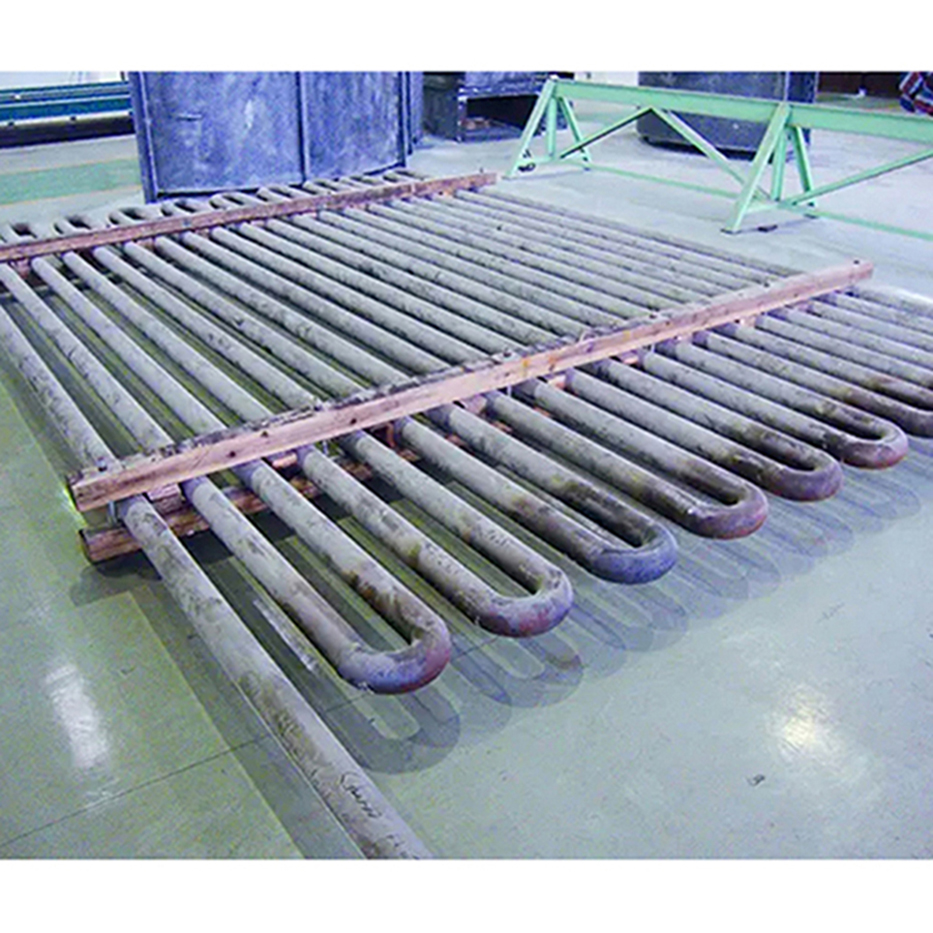

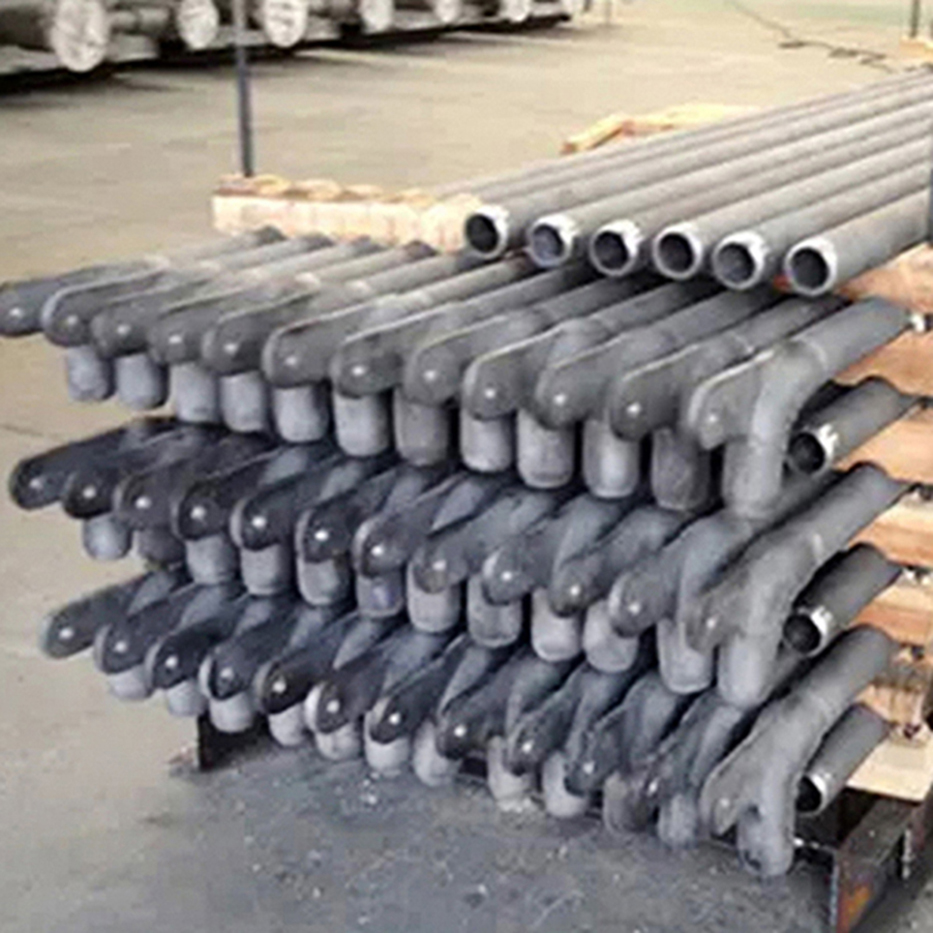

Ethylene cracking furnace radiant section tube TAIGOO specializes Tubular cracking furnace is the main technology for ethylene production, ethylene cracking furnace including: heating systems , heat recovery systems ,  reaction system , the device includes burner , radiant section , convection section , quench system , the high pressure steam system . Cracking furnace tubes are used in the radiant section , also known as the radiant section tubes. Cracking tube's working temperature is 1000 ºC -1150 ºC. It is an important part of ethylene cracking furnace. Material: ZG40Cr25Ni35Nb,ZG40Cr35Ni45Nb,HP-Nb,HT50,GX40NiCrSiNb35-26,GX40NiCrNb45-35,SCH24XNb Specification: OD 50mm-200mm, wall thickness 5mm-20mm; Manifold: OD 100mm-400mm,wall thickness 10mm-40mm; Static casting supply specifications : 90°elbow, 180°elbow, tee, palm tube, three-dimensional shaped elbow , hanging pieces etc.   Products: Reformer tubes Cracking tubes Cast tube sheets…

Fired Heater DRI Reformer Tube Pressure Vessel Ethylene Cracking Tube Furnace Roll
