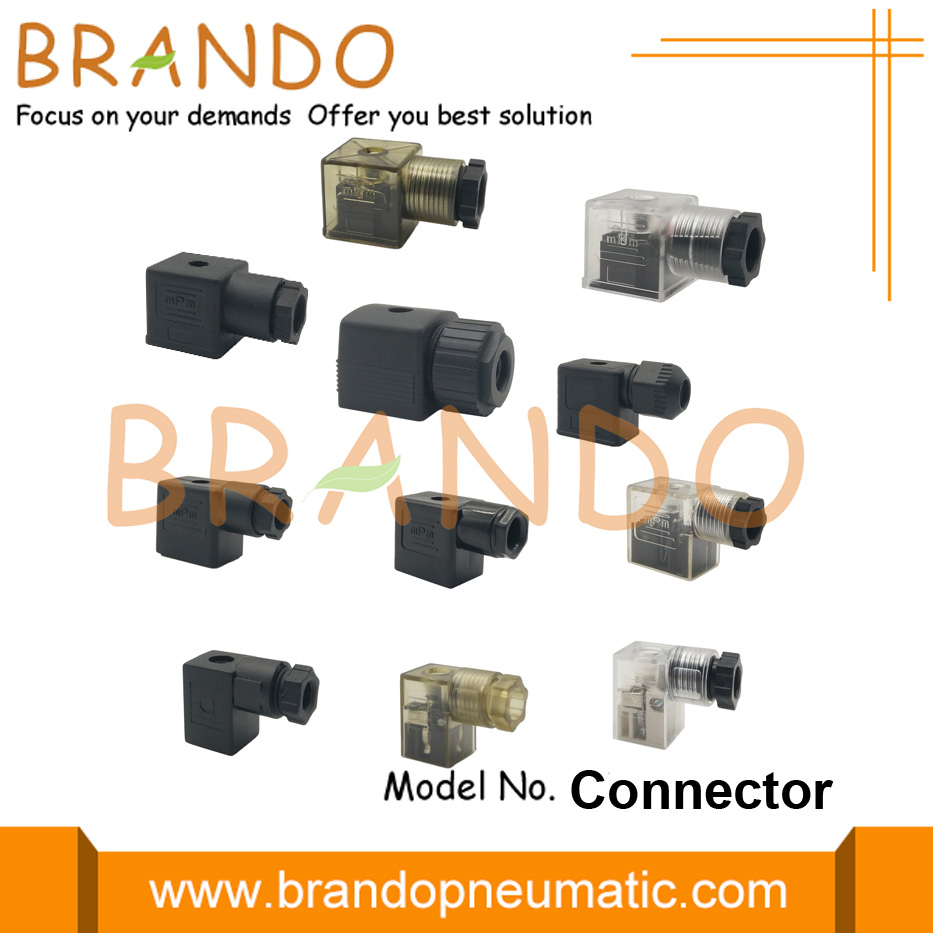

Female DIN 43650 Solenoid Valve Coil Connector Plug

Female DIN 43650 Solenoid Valve Coil Connector Plug Solenoid Coil Connector is used extensively to provide electrical connection in a wide range of applications. The most common application for Solenoid Coil connector is in conjunction with pneumatic, hydraulic or electromagnetic devices, including solenoid valves. Other applications include, for example, pressure transducers, proximity switches, level sensors, limit switches and low energy motors. Product Features: 1. Product Name: Solenoid Valve Coil Connector 2. Application: Power 3. Gender: Female 4. Pin Number: 3 PIN 5. Distance: 18mm, 11mm, 9.4mm 6. DIN Type: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C 7. Form: 2+1GND, 3+1GND 8. Wokring Voltage: AC380V, DC300V 9. Protection Class: IP65, IP67, IP68 (Waterproof) 10. Nomical Current: 10A 11. Contact Resistance: ≤5mΩ 12. Max Conductor Section: 3x1.5mm², 3x0.75mm² 13. Fixing Screw: M3x28, M3x30, M3x25 14. LED: Available…
