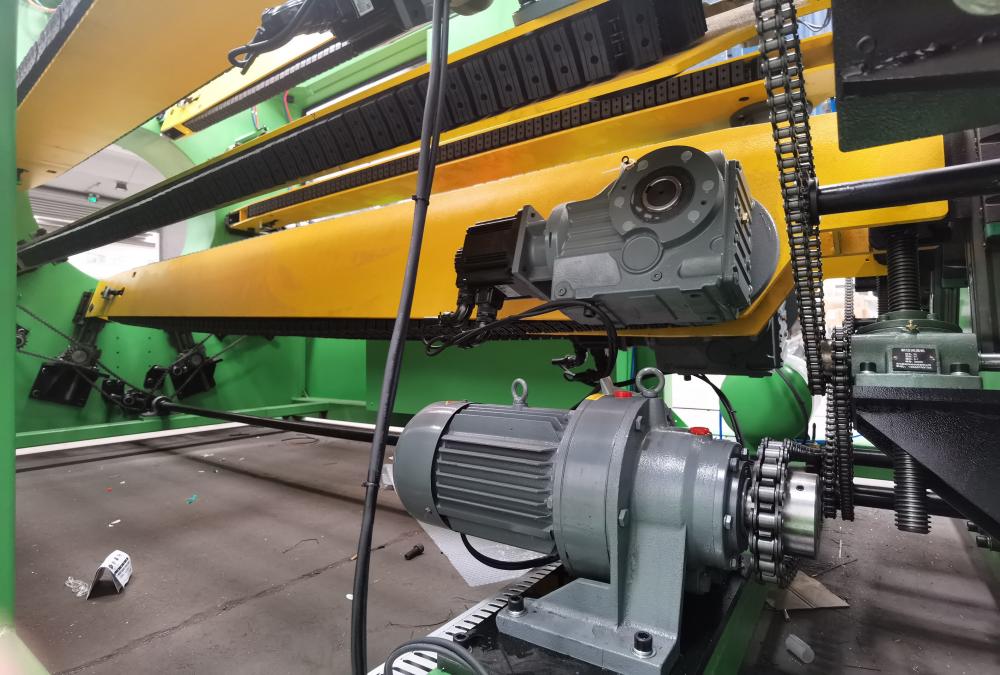

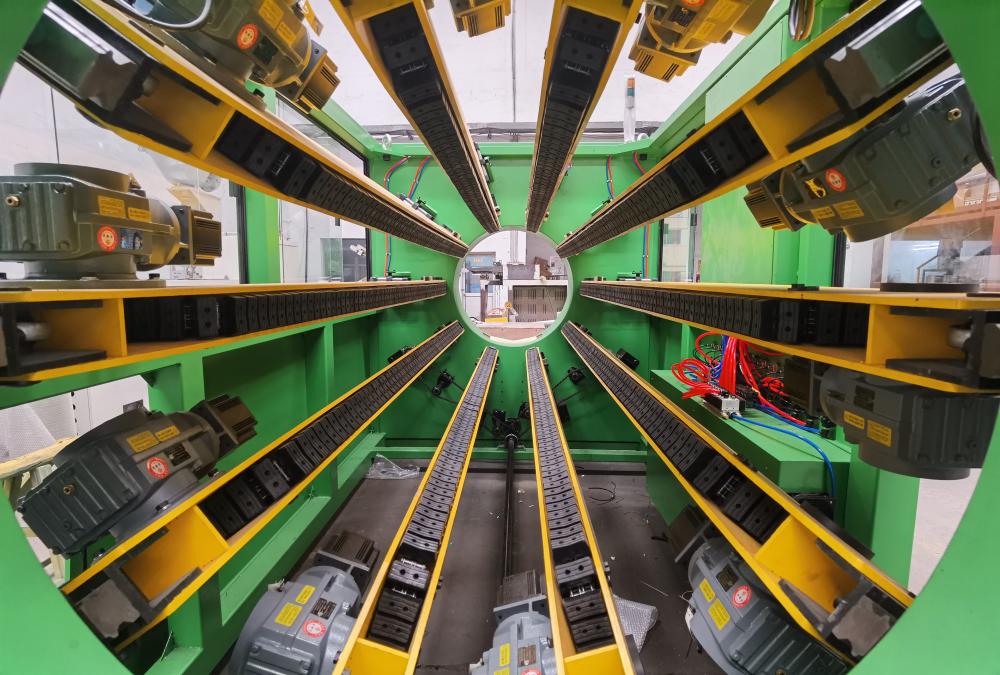

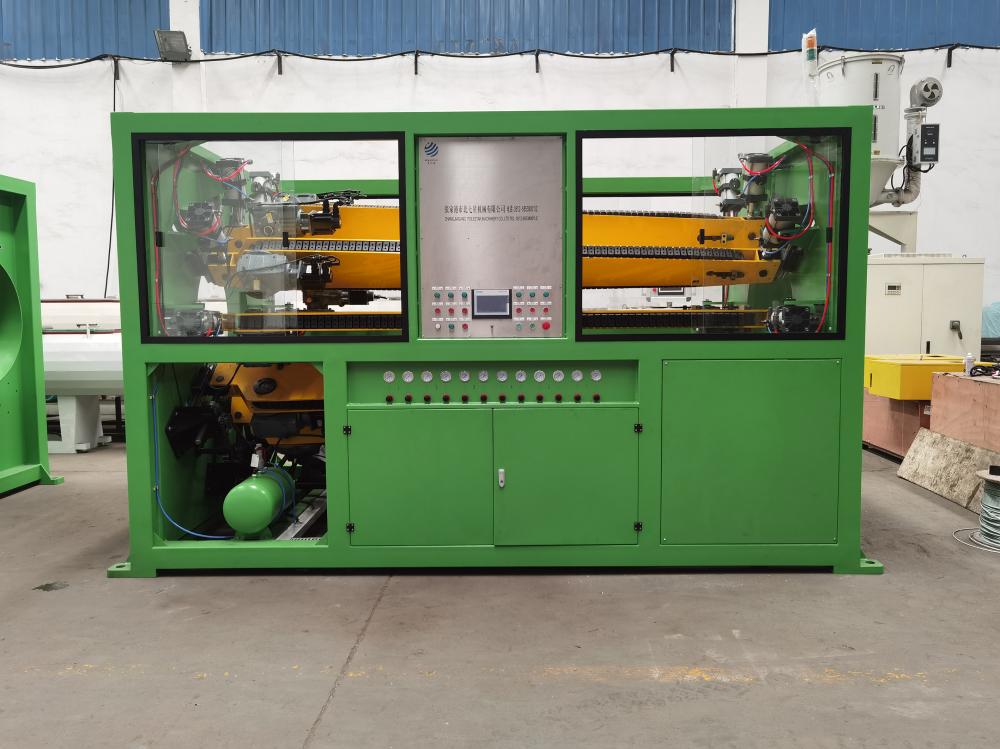

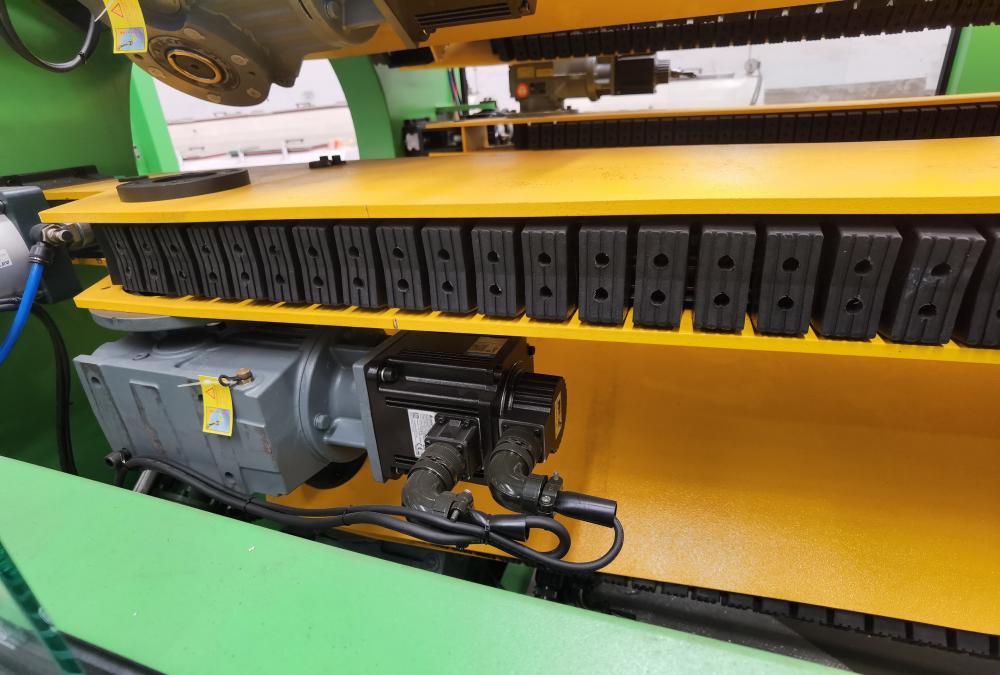

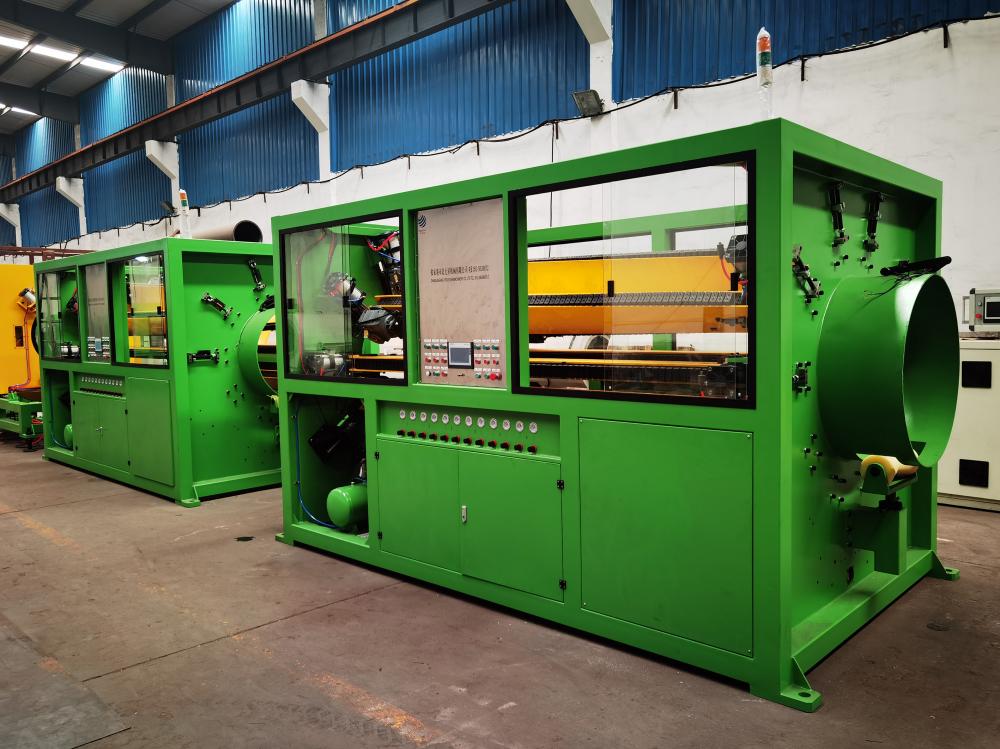

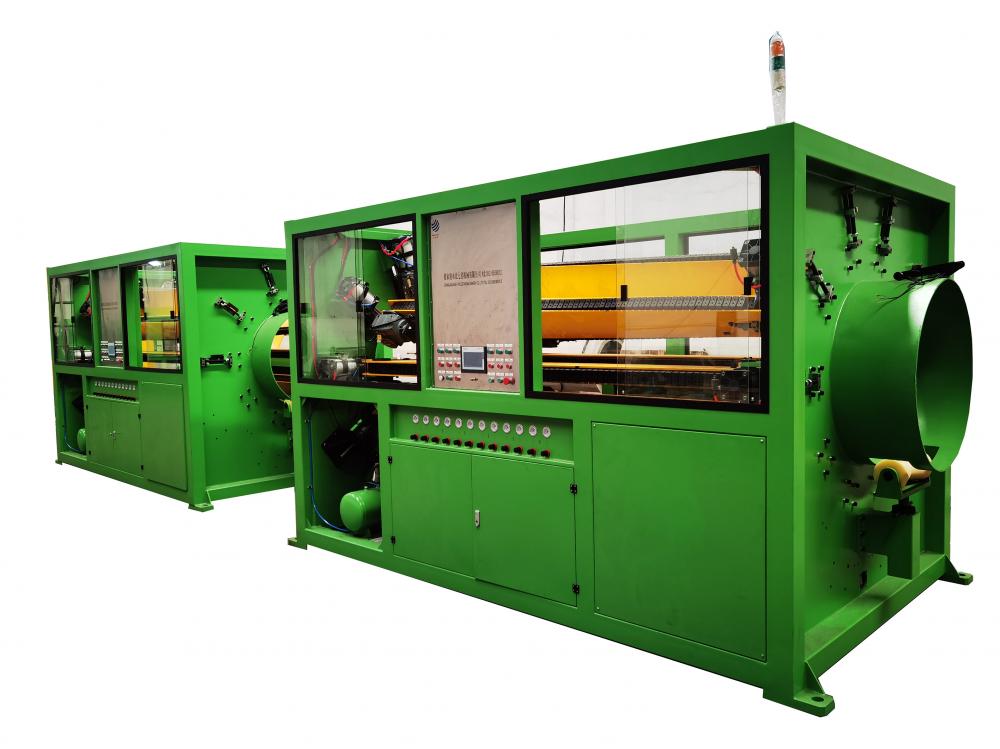

The Plastic Pipe Tractor We Produce Uses A Special Crawler Traction Device For Continuous Extraction Of Pipes, Which Can Maintain Stability Even At High-Speed Production Speeds. The Crawler Tracks Are Driven By Brushless AC Servo Drives. Both Crawler Frames Can Be Used Mechanical Adjustment Or Intelligent Pneumatic Height AdjustmentAt The Same Time, Our Workshop Also Produces Multi-layer co-extrusion machine, PET pelletizing machine, And Plastic Mixer To Provide You with One-Stop Service. We Can Help You Combine the Machines You Need to Improve Your Efficiency. We Will Also Provide Unified After-Sales Service.
Model
Pipe Range(mm)
NO of Raction belts
Drive Motor Power(kw)
Peak Traction(N)
Max. Speed(m/min)
QY-32
φ6-32
2
2x0.75
3000
30
QY-75
φ16-75
2
2x1.1
10000
15
QY-160
φ20-160
2
2x1.5
15000
10
QY-250
φ50-250
3
4.5…
