TECHNICAL DETAILS
Un-coiler
1. Capacity: 2 tons
2. Material: #45 steel quenched
3. Inner diameter: 410~ 580mm

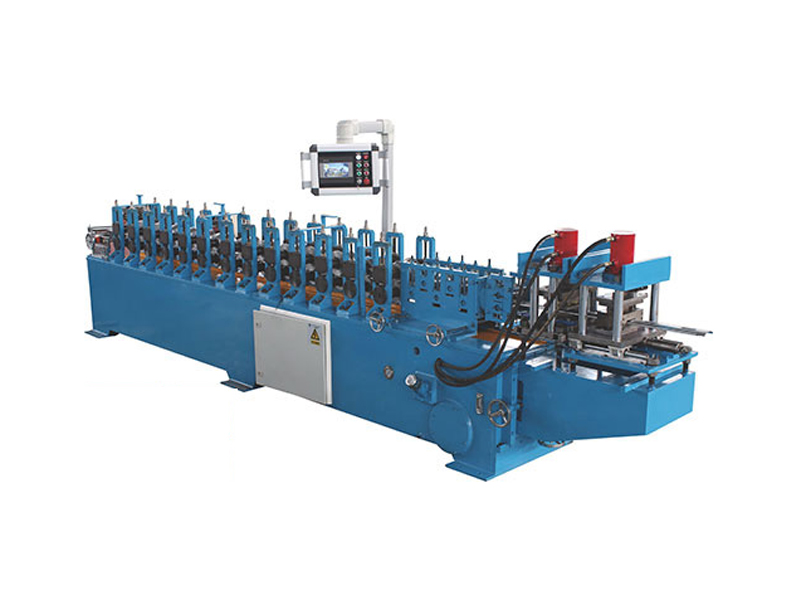

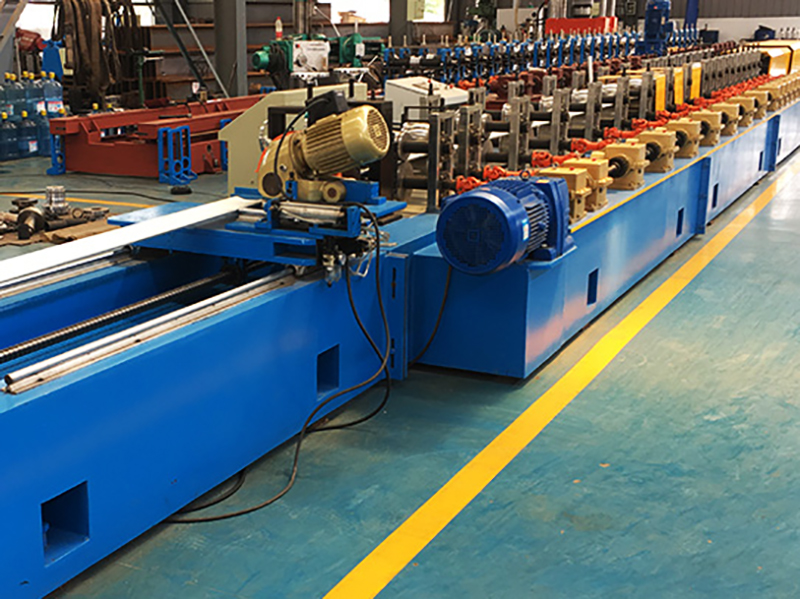

Main roll former
1. Stations: 13
2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON, 800 MPA
3.
Shaft material: Diameter: 50mm, material is #45 steel. Quenched: hot
treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA
4. Bearing brand: FAG Germany
5. Main Motor: 5.5 KW, 380V, 50HZ
Un-coiler --Pneumatic feeder -- Micro perforation -- Re-coiler
1
Un-coiler (automatic) 2 tons
1
2
Mechanical press machine
1
3
Pneumatic feeder
1
4
Re-coiler (automatic)…
