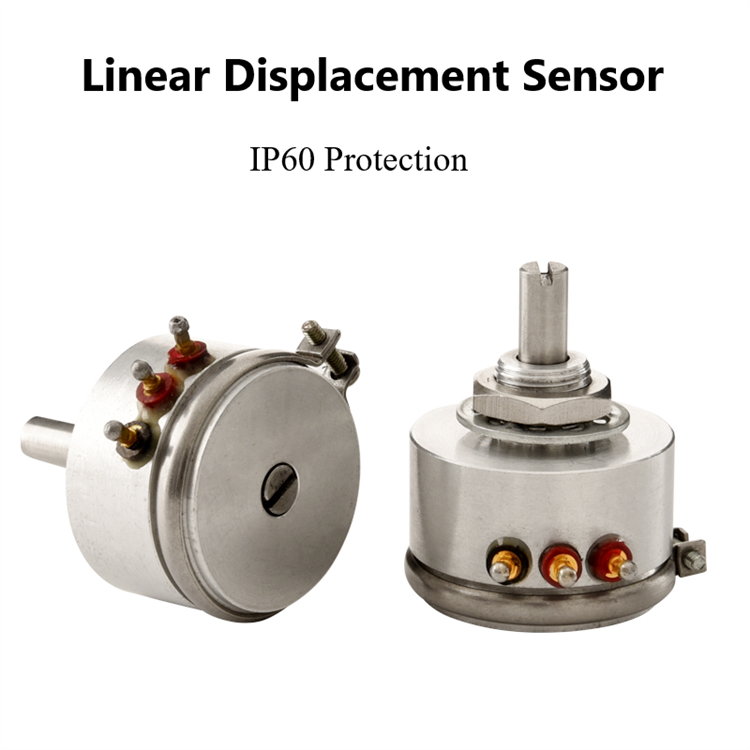

IP60 Linear Displacement Sensor Arduino Potentiometer
This linear displacement sensor is a industrial grade displacement potentiometer with much more precise. JRTWDJ27 has high resolution & theoretically infinitesimal. Also, customers choose the the signal wire to an analog or digital input, to connect the Arduino with the angular displacement sensor can. It's really a competitive option, right? Significantly increased lifespan ≥500 Ten thousand times(circle). If you would be interested to get more info for prototyping, please feel free to contact us.

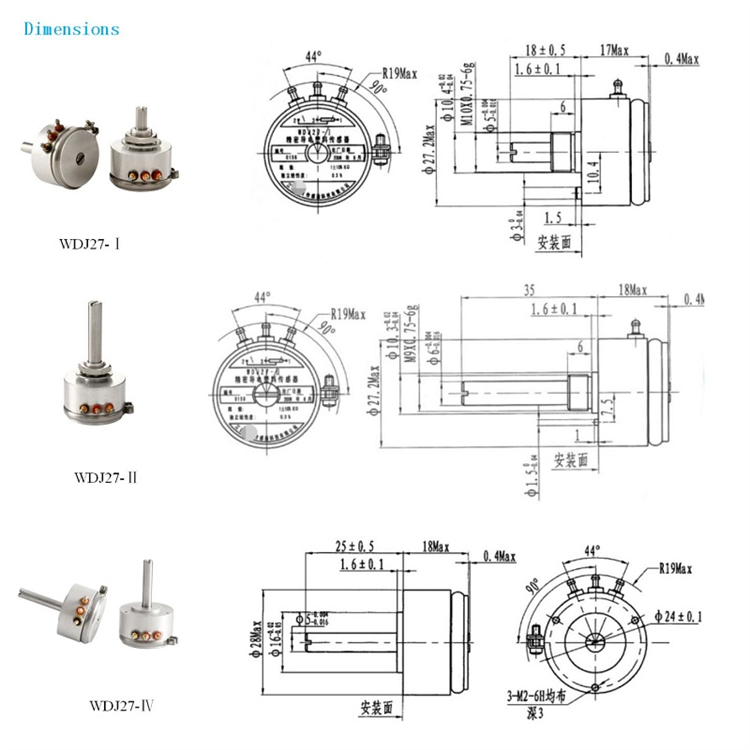

Machinical Dimensions
TECHNIQUE PARAMETER
Protection Class: Anodised Aluminium, Stainess Steel Rod etc
Protection Class: IP60/IP65

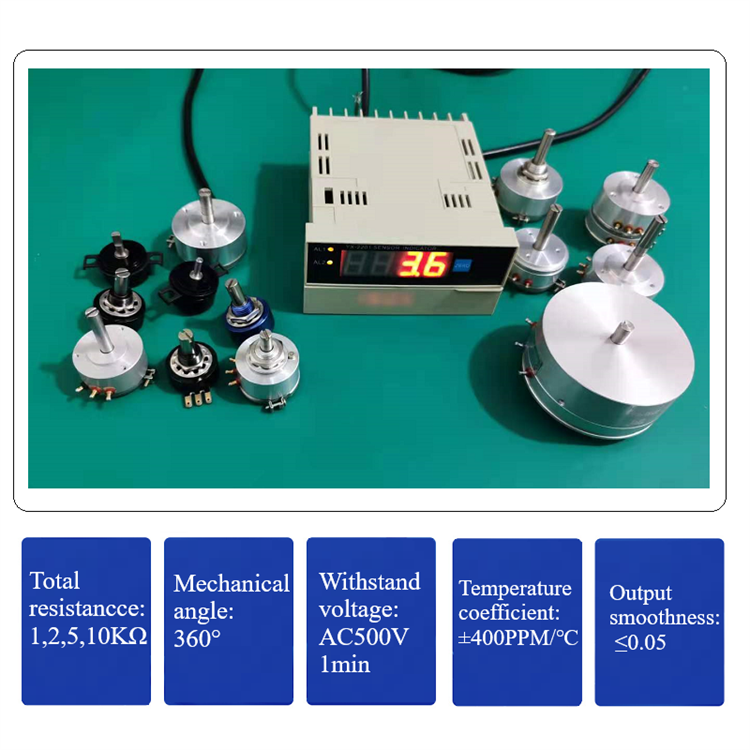

Total resistancce: 1,2,5,10KΩ
Effective electrical angle: 345°
Effective electrical angle: ±0.2、±0.3、±0.5
Mechanical angle: 360°
Withstand voltage: AC500V/1min
Weight: 35g
Shoce: 50g.11ms △R≤±2%
Rotational life: 10 million times (circle)
Installation methods Flange or thread instal…
