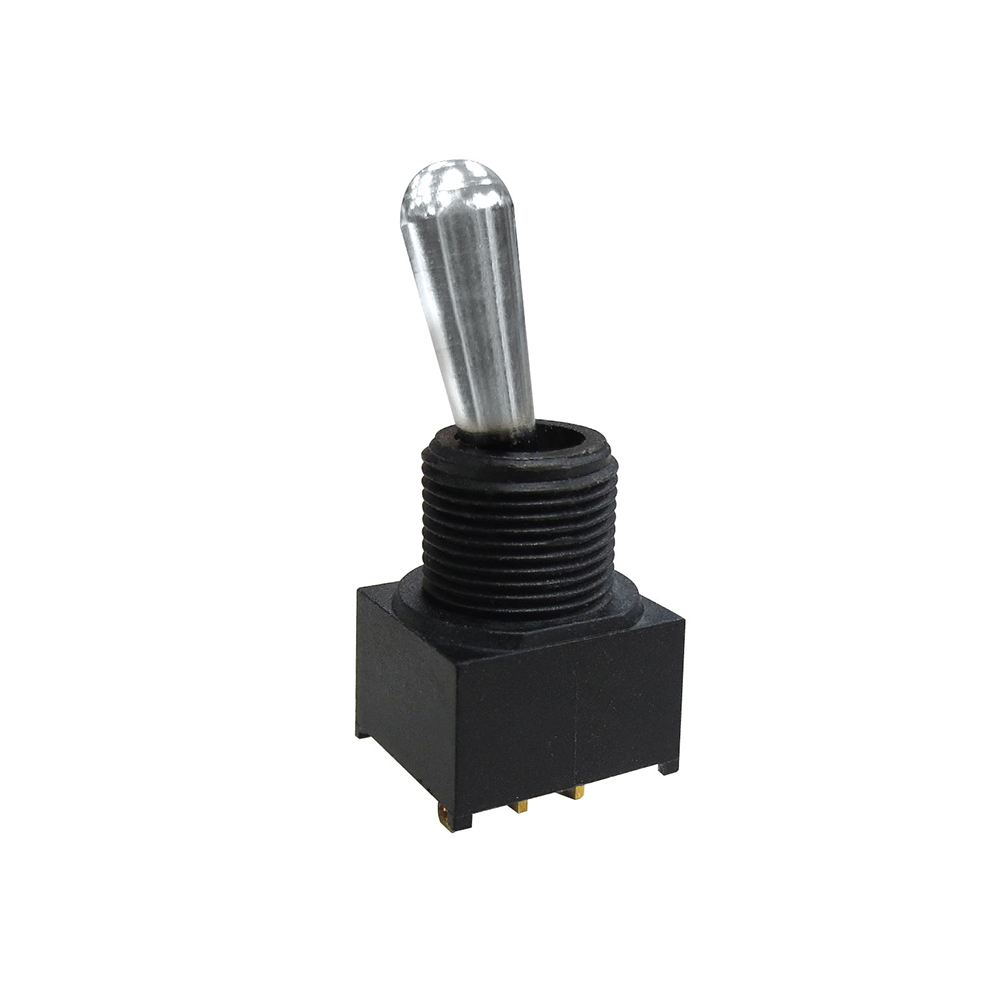

Waterproof Miniature Toggle Switches with Flame Retardent The new design Toggle Switches are IP67 certificated and flame retardant. The black rubber hood protection can make the Electrical Toggle Switches aganist water and dust to meet IP67 standard. The Case and Bushing were made by glass filled nylon which can reach UL94V-0 requirement; The Mini Switches are applicable to AC or DC electricity @ 20V max.; The gold plated contact / terminals make the 0.4A electricity works well and smoothly; The  Micro Toggle Switches has long cycle life (100,000 make and break cycles mechanical life and 50,000 cycles electrical life).The automotive Toggle Switches can work well under temperture -30°C to 85 °C;  Details Toggle Switches function will be show as below Images: SPECIFICATIONS: Contact Rating: 0.4A @ 20V Insulation resistance: 1,000ΩMmin. Contact resistance: 10mΩmax. initial @ 2-4VDC,100mA for both silver…
