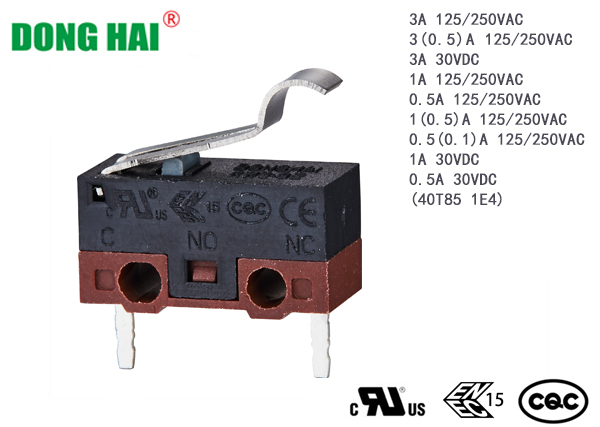

Description -SPST-NC  single pole single throw  - Short PCB terminals -R lever -100±40gF -Rating:3A 125/250VAC  40T85  1E4                 3(0.5)A 125/250VAC  40T85  1E4                 3A 30VDC   40T85  1E4 -Long life  spring system, and silver contacts. -Electrical lifespan: 30,000 cycles Dimensions Length: 12.8mm Width: 5.8mm Height: 7.5mm (excludes 3mm for terminals) Arm length: 13.0mm Features ◆ Small compact Size, high reliability ◆ Micro contact gap,high speed operation,high sensitivity,Micro operatizon travel. ◆ Long life & high reliability ◆ Wide Range of wiring Terminals, Variety of Levers ◆O…
