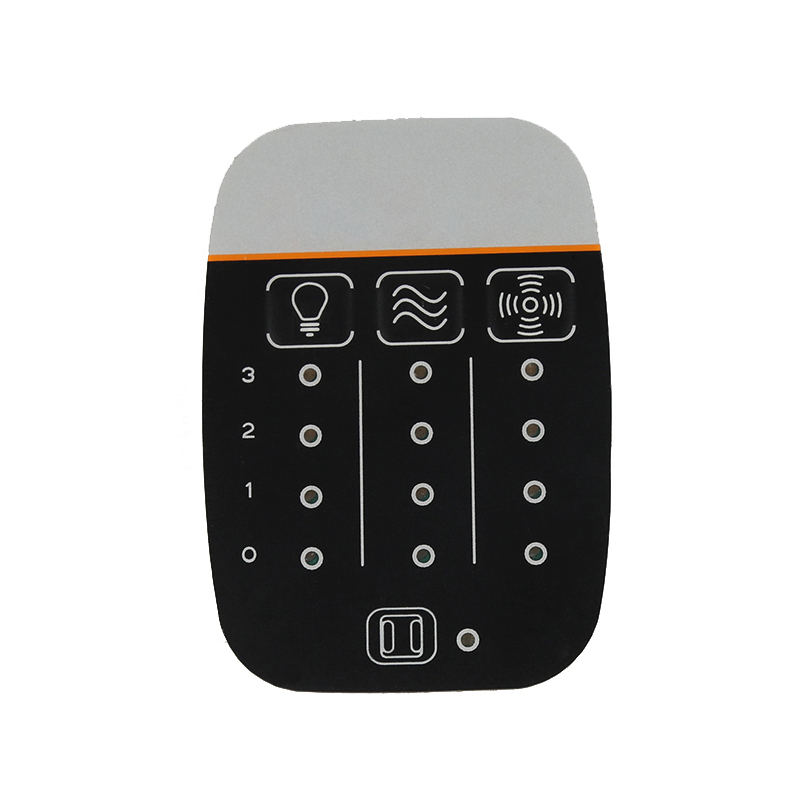

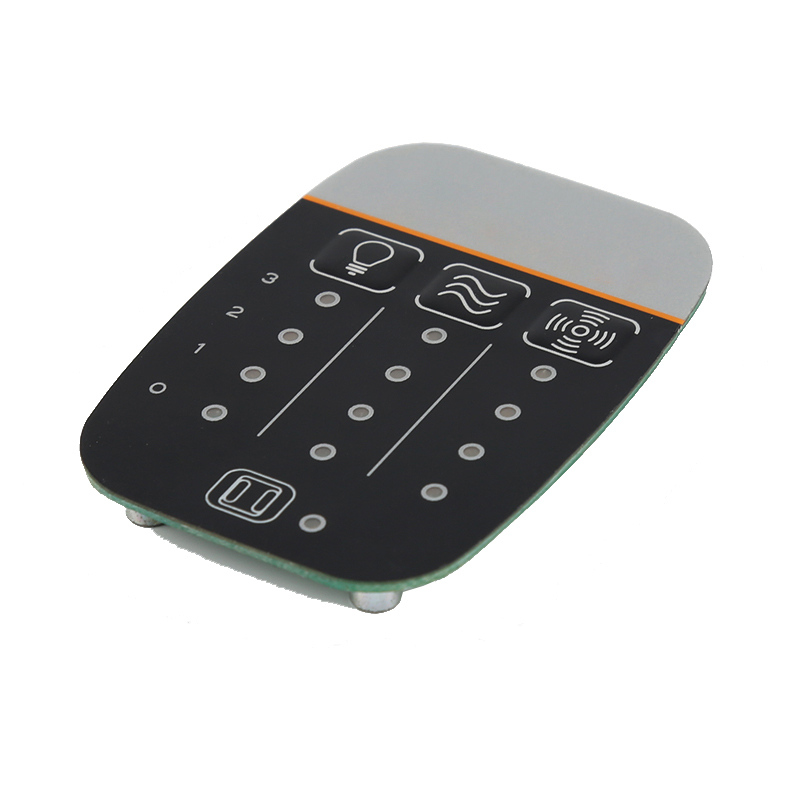

PCB Membrane Switch
Printed circuit boards (PCBs) can allow you to combine your user interface and controller electronics into one assembly simplifying design, reducing space and potentially lowering the total cost of your product.
When the circuit used in the membrane switch design is a printed circuit board (PCB) you’ll see the unit called a PCB membrane switch.
While Cixi membrane switch team's is a PCB membrane switch manufacturer we also provide other circuit options such as screened silver and flexible printed circuits. Each circuit option provides different benefits, which we can help walk you through during your decision process.

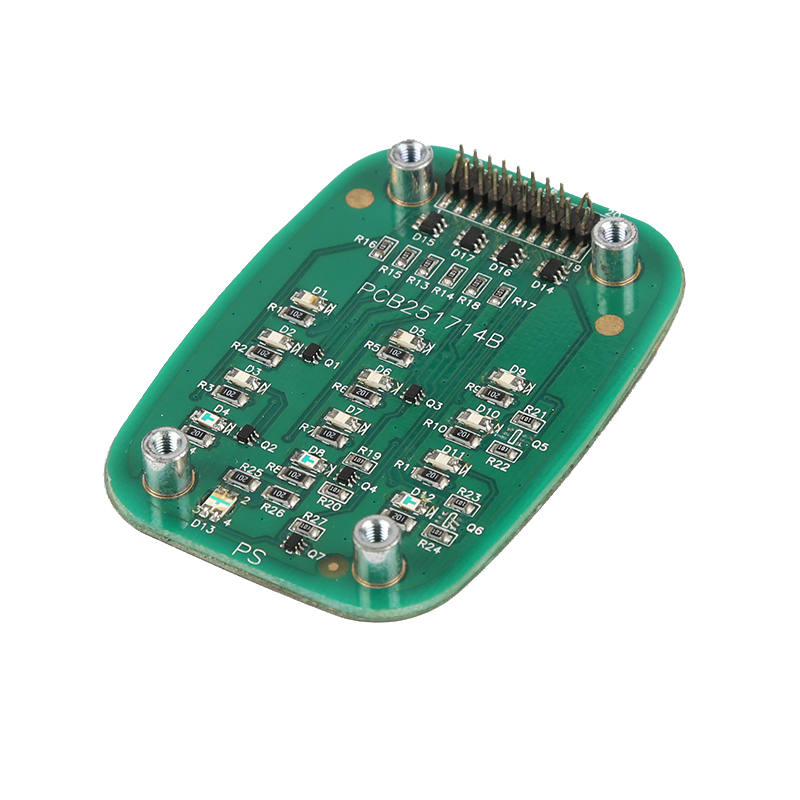

Printed Circuit Board:
Conductor: 0.5, 1, or 2oz copper (double-sided)
Base film: 0.5, 1, or 2mil polyimide or 2, 3, 5 mil polyester
Cover film: 0.5 or 1mil polyimide or 1mil polyester
Minimum trace width: 0.1mm
Minimum space between trace: 0.1mm
Minimum hole size: 0.15mm
Assembled with male connector
Printed Circuit Boards benefit…
