PCB screw terminal block

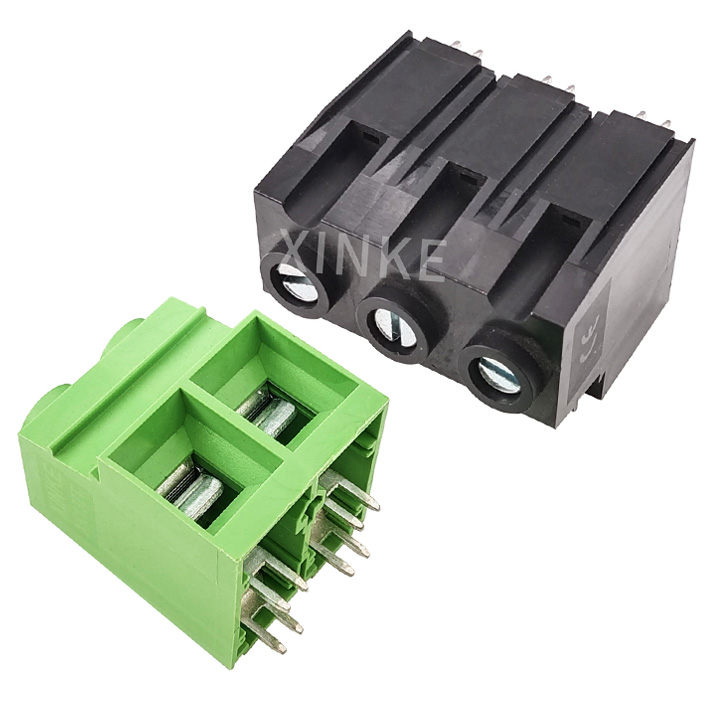

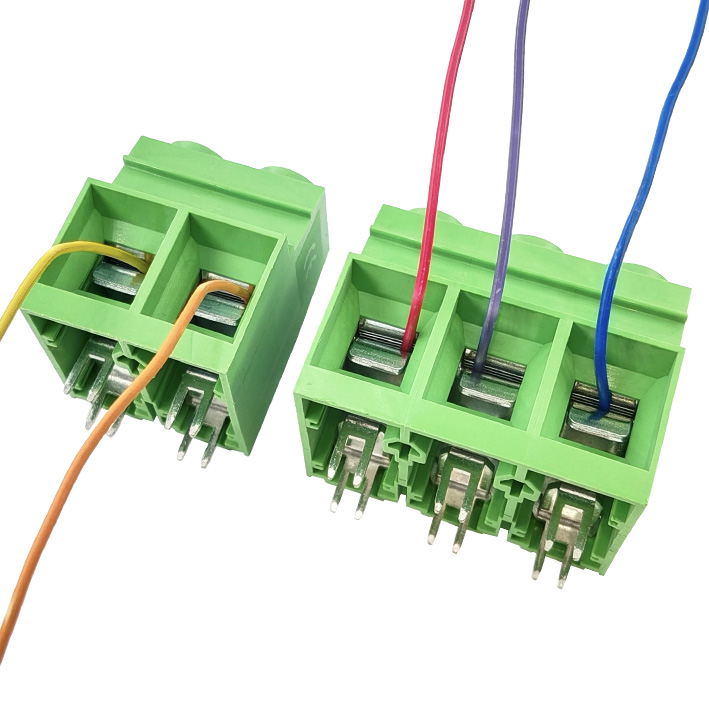

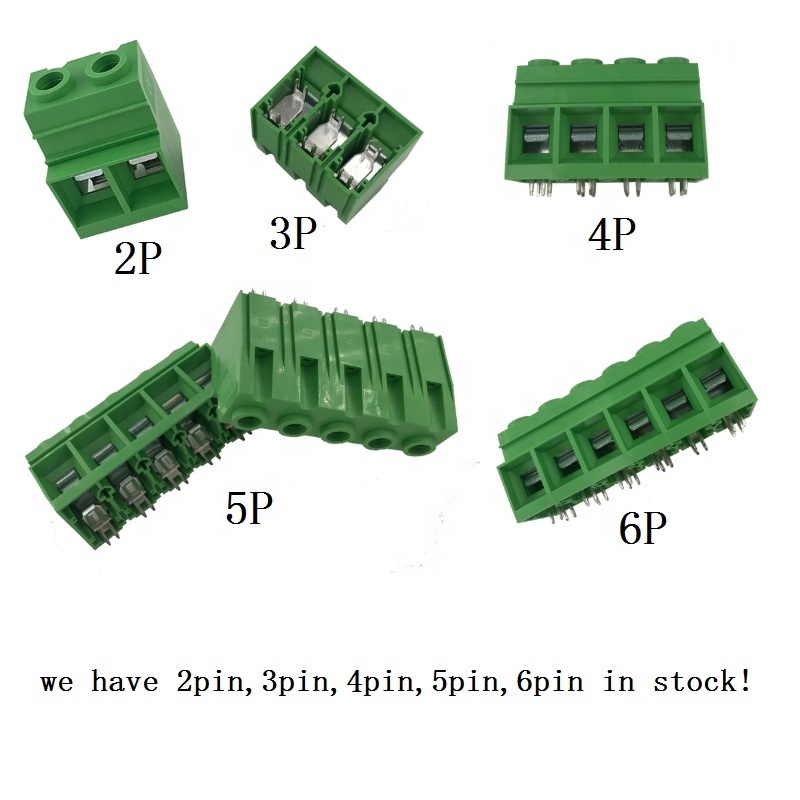

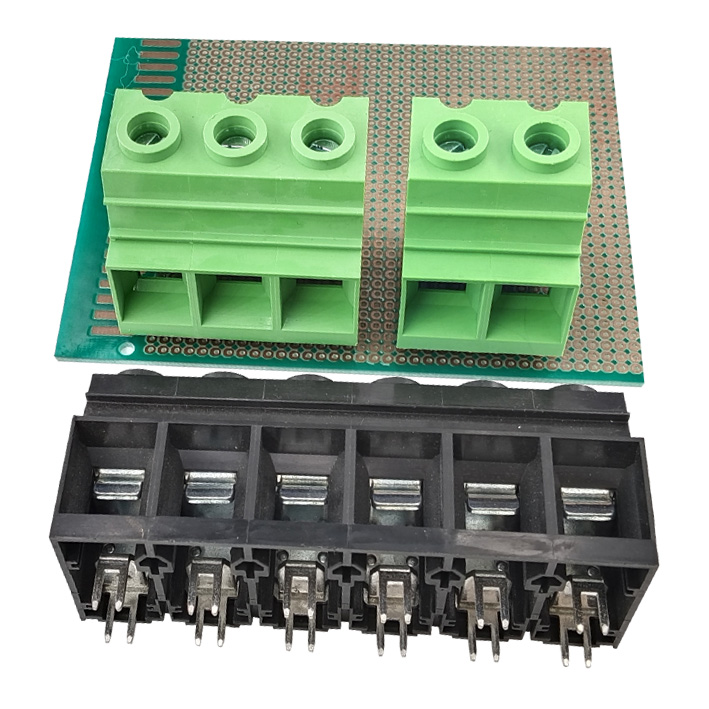

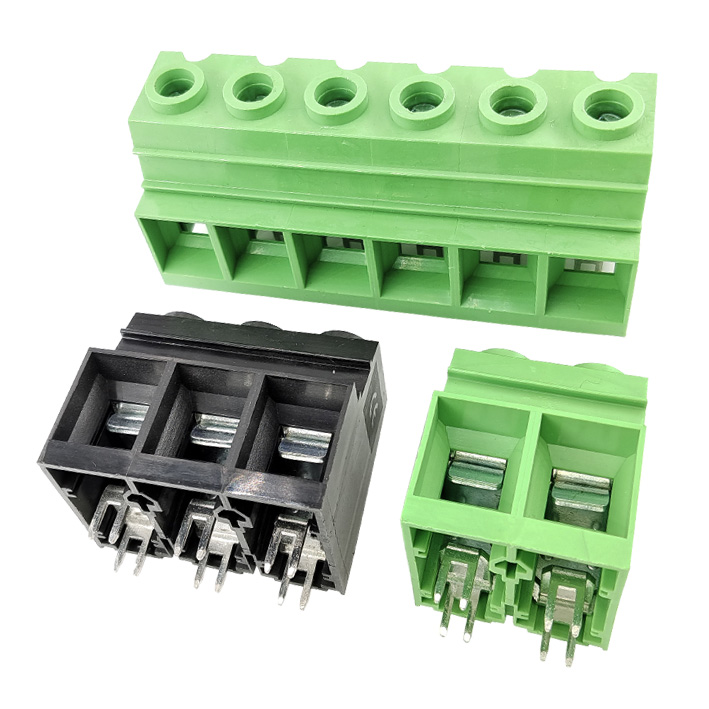

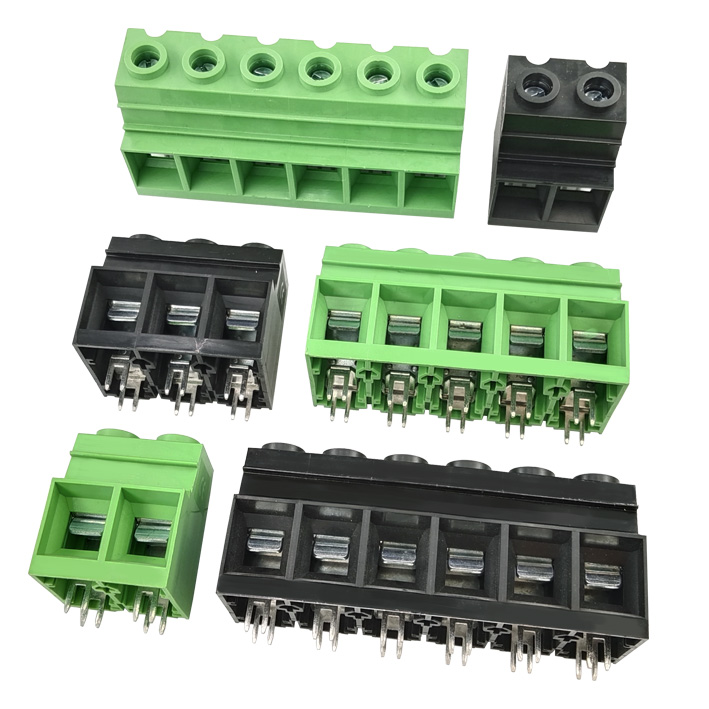

  PCB screw terminal block XK137T-15.0 with large power distribution 15.0mm pitch 1000V 125A,produced by Cixi XinKe Electronic Technology Co., Ltd. ,whitch is a factory mainly specializing in the production of pluggable terminal blocks, din rail terminal block,spring terminal blocks, PCB Screw Terminal Block and Barrier Terminal Block. We have 2pin -6pin position contacts for this type,good quality,sufficient stock and fast delivery,welcome to contact us！   Pitch:15.0mm;Poles:2P-6P;Rated Voltage/Current:1000V/125A     Plastic material: PA66,UL94V-0 pin header and cage: brass Screw: M5,Steel,Cr3+ Zn plated Rated voltage: 1000V Rated current: 125A Wire range: 20-2AWG  35mm² Withstanding voltage: AC2200V/1Min Temp.: -40℃~+105℃ Strip length: 18mm Maximum locking torque: 2Nm(17.5lb-in) Pitch: 15.0mm Other products you may also interested:1.Spring Terminal Block2.Barrier Terminal Block3.Din Rail Terminal Block4.Screw Terminal Block…

Keywords

Din Rail Terminal Block Spring Terminal Block PCB Pluggable Terminal Block Screw Terminal Block
