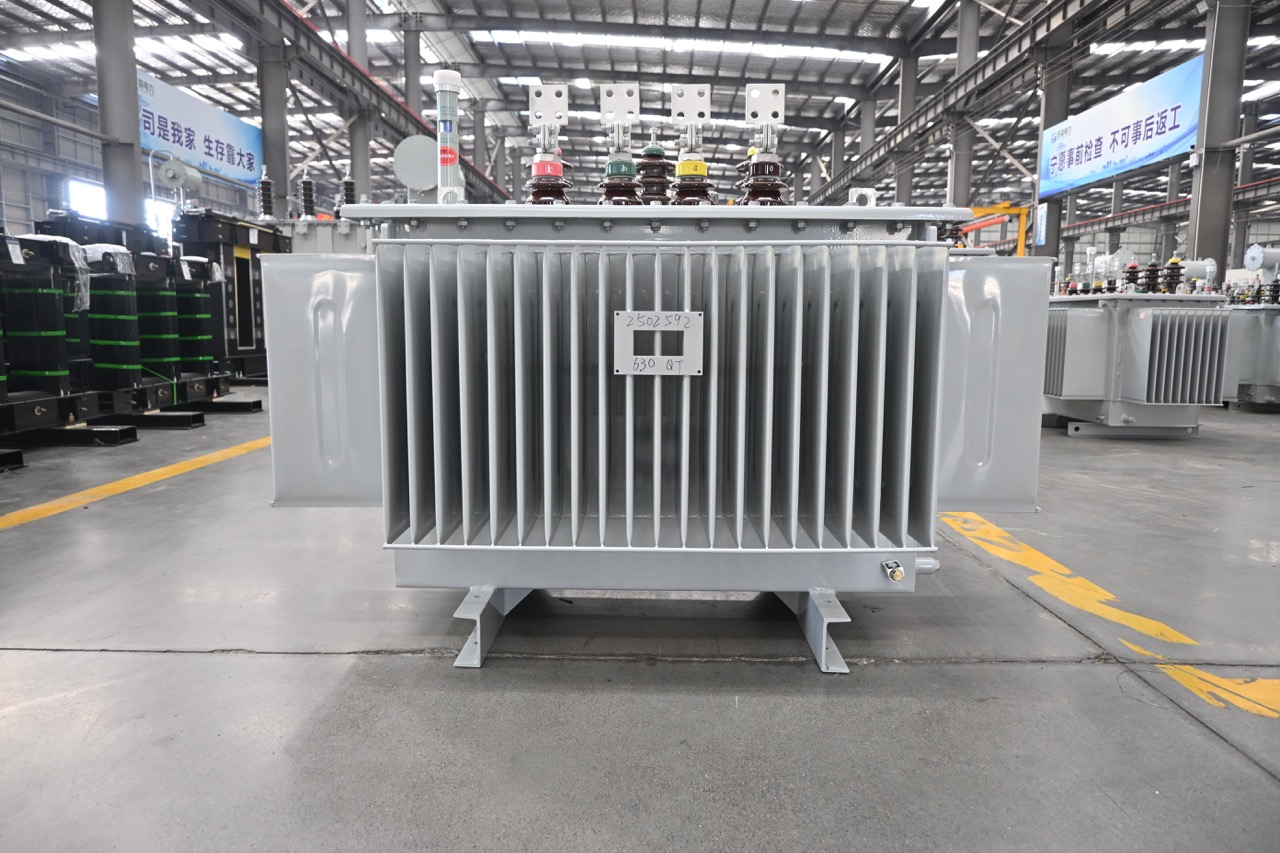

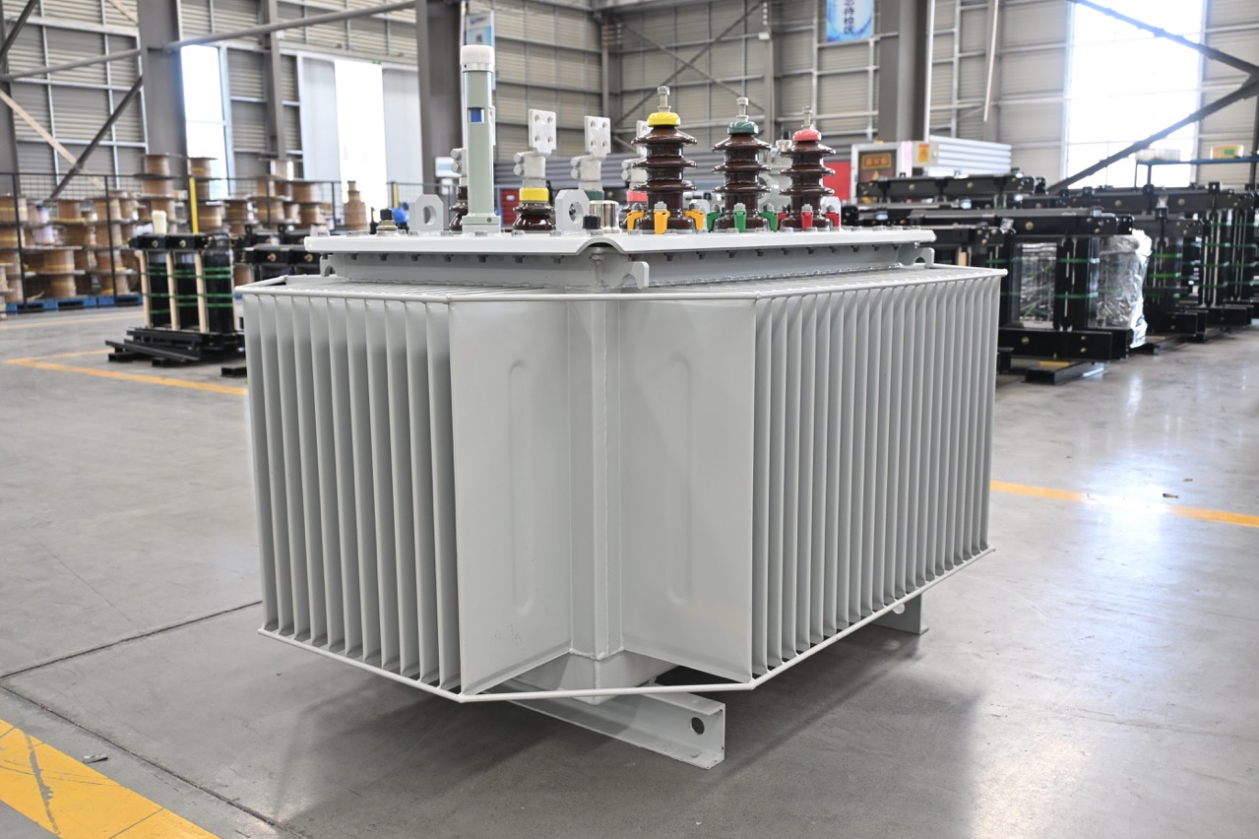

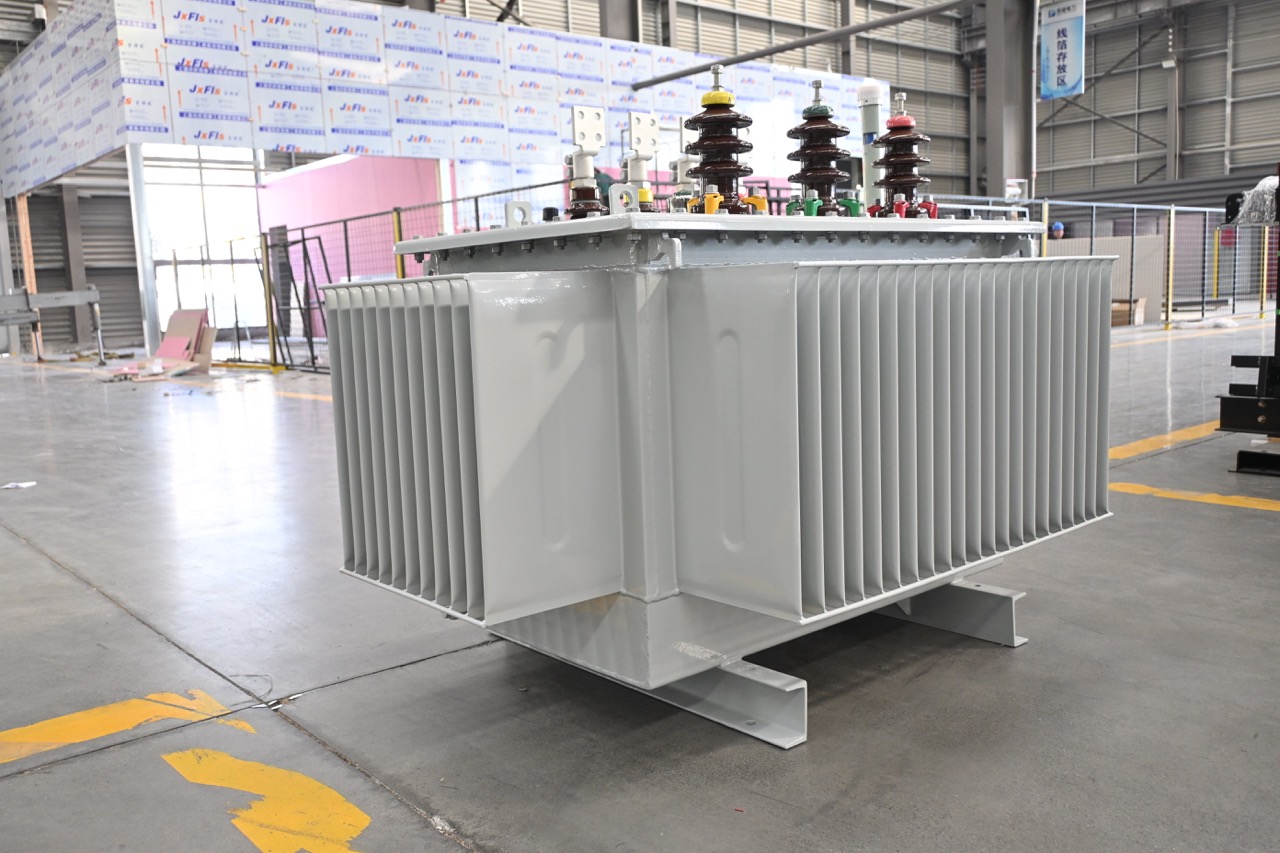

The S11-10KV 30KVA oil-immersed transformer is a type of distribution transformer that operates at a primary voltage of 10KV and has a rated capacity of 30KVA. It is commonly used in rural power grids, industrial areas, and commercial applications to step down voltage for end-user distribution. The Oil Immersed Transformer boasts a range of key attributes including excellent thermal stability, low noise emissions, and a compact footprint that maximizes space utilization. The S11 Oil Immersed Transformer stands out with its high-efficiency core design, while the 10KV Oil Immersed Transformer provides robust insulation suitable for demanding environments.    Technical Specifications of S11-M-30 Transformer Rated Capacity: 30KVA No-load Loss: 100W Load Loss: 630/600W No-load Current: 1.5% These parameters are part of the oil-immersed transformer specifications, reflecting the performance of the transformer under different operating conditions. No-load Loss: When the transf…
