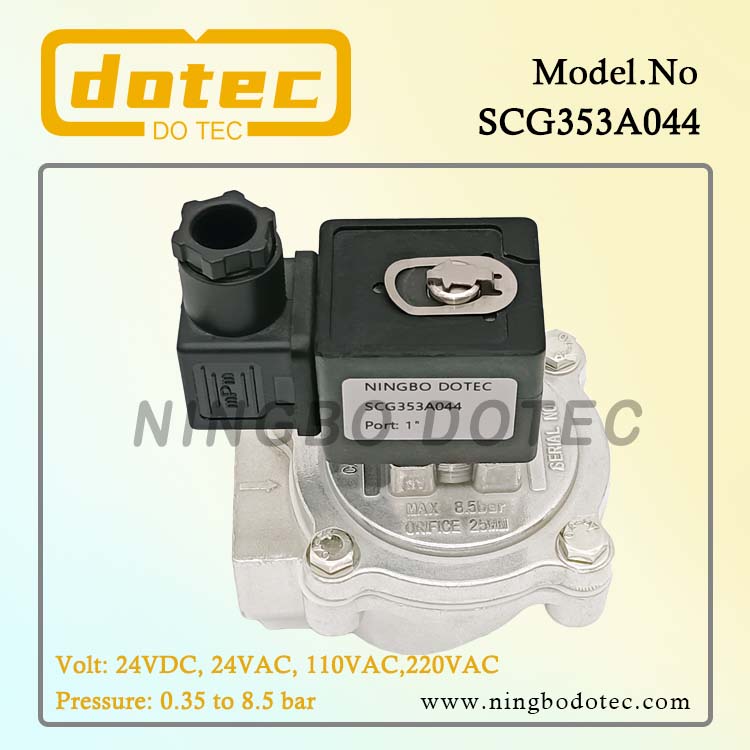

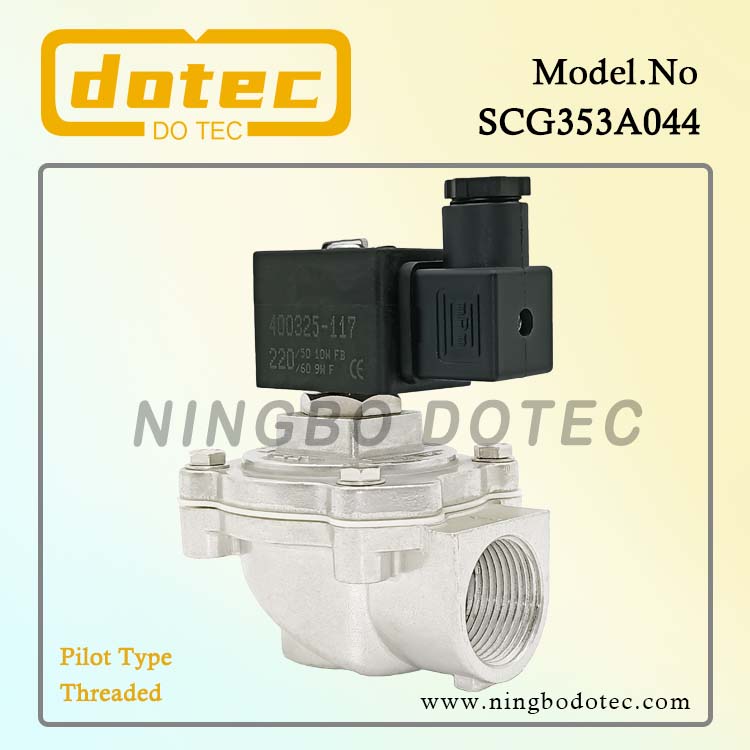

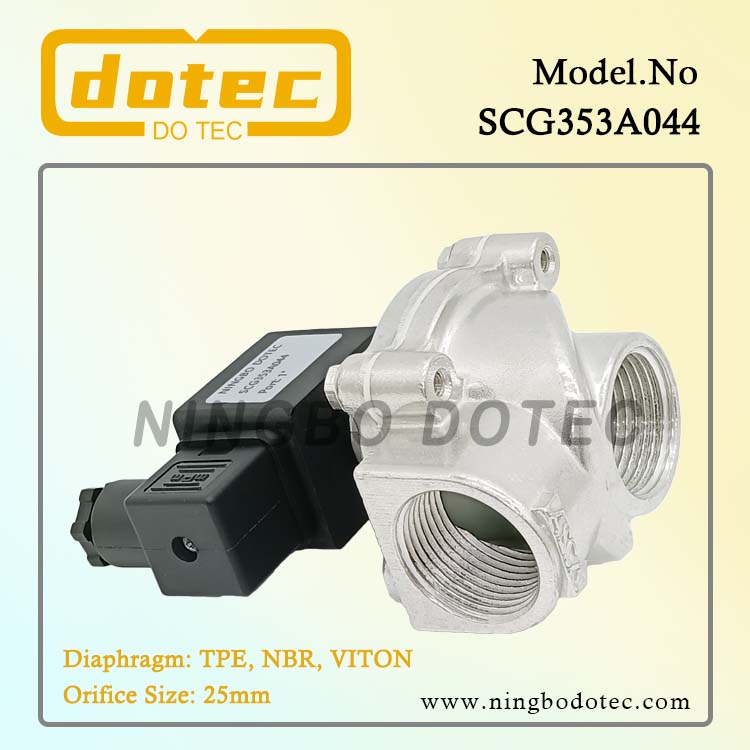

SCG353A044 ASCO Type 1'' Dust Collector Pulse Jet Valve 24V 110V 220V DC AC

SCG353A044 ASCO Type 1'' Dust Collector Pulse Jet Valve 24V 110V 220V DC AC     Product introduction   The SCG353A044 ASCO Type pulse valve has a threaded port for connecting compatible pipes or fittings. The port size is 1", the orifice size is 25mm, and it can withstand pressures from 0.35 to 8.5 bar. It is generally a white single diaphragm with no spring structure, combined with a specially designed valve diaphragm. This ensures that it can respond quickly at work and operate efficiently and reliably in different dust removal systems. We also have other voltage options, 24VDC, 24VAC, 110VAC, 220VAC.      Dimension      Integral Pilot SCG353A043 SCG353A044 SCG353A047 ACG353A050 ACG353A051 Remote Pilot G353A041 G353A042 G35A045 G353A046 G353A048 G353A049 Port Size 3/4 '' 1 '' 1-1/2 '' 2 '' 2-1/2 '' Orifice Size (mm) 25 25 52 66 66 Diaphragm Number 1 2 Pressure Range 0…
