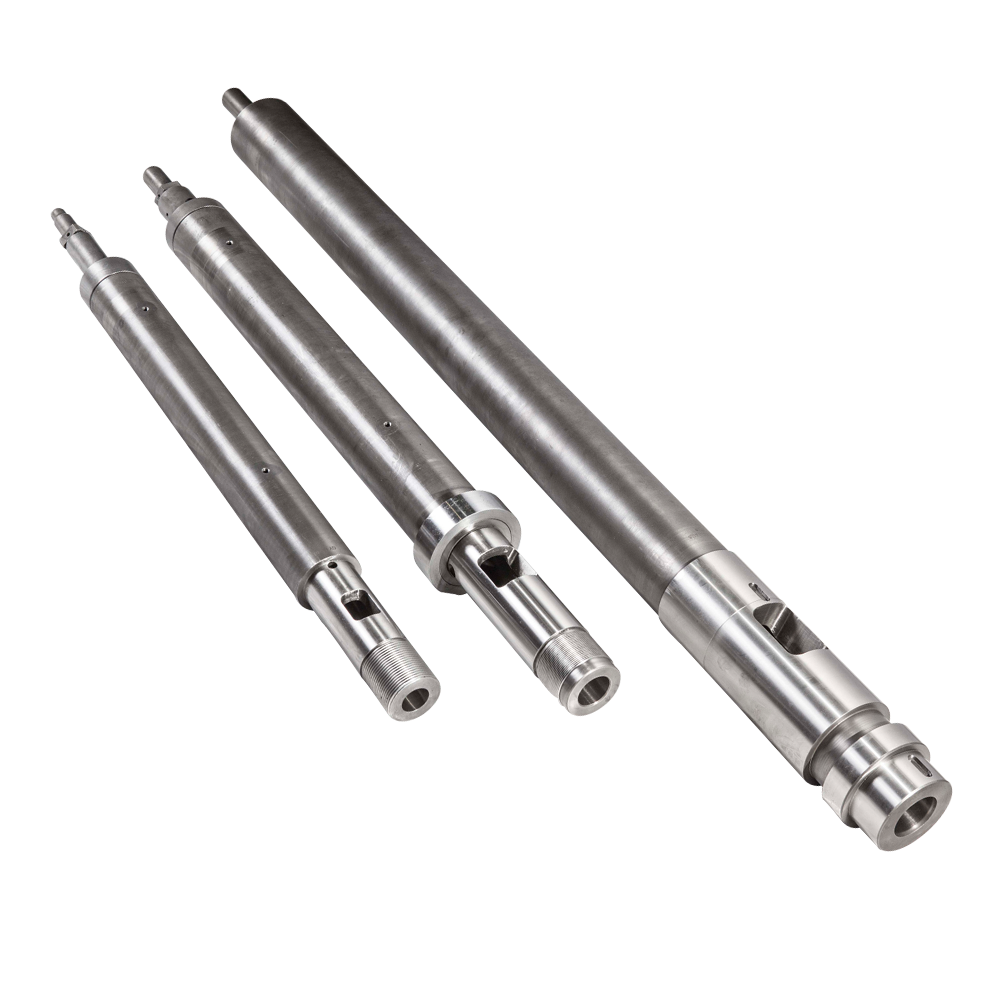

Screw and Barrel for Combined Injection Machine

Specification: Screw diameter:φ20-φ300mm Mould clamping force: 250-3200T Shot weight: 30-80000G Screw can be matched with different heads, and barrel can be matched with different nozzles. Specification Parameter: Amount Of Injection(G) Screw Diameter X Length(mm) Barrel Diameter X Length(mm) Amount of Injection(G) Screw Diameter X Length(mm) Barrel Outer Diameter(mm) 30-90 φ30x900 φ85x860 800-1250 φ75x1825 φ170x1725 60-125 φ35x910 φ85x860 1000-1500 φ80x2000 φ180x1805 100-150 φ38x935 φ95x900 1250-2000 φ85x2300 φ190x1900 125-160 φ40x980 φ95x910 2000-3000 φ90…
