SD static mixer with PP

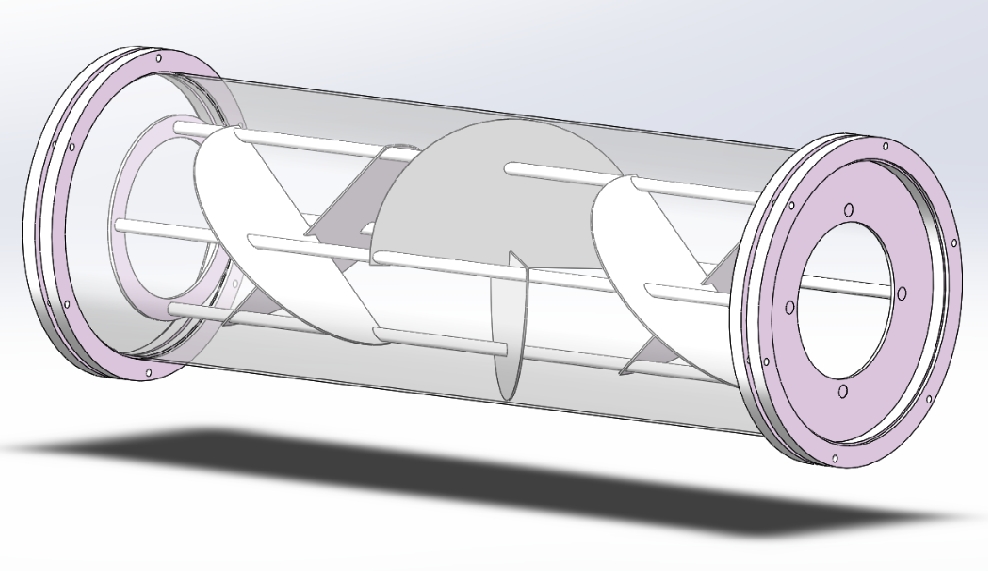

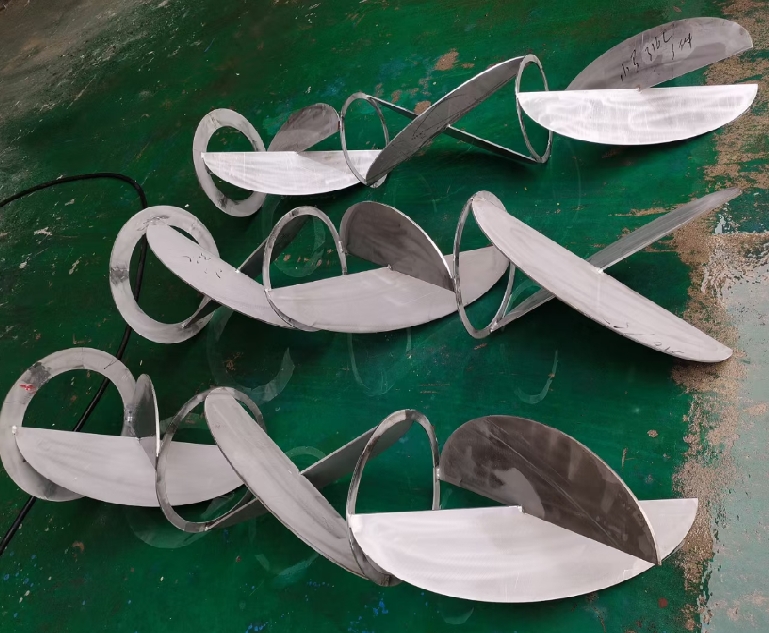

The mixing unit of the SD type static mixer is composed of vertically intersecting blades, and multiple units are connected to form D-shaped units, forming a staggered multi chamber state. Can be used for emulsification During the process, it can disperse the droplets to 10um, which is used for the non-uniformity coefficient in general mixing processes. The product is suitable for mixing, reaction, absorption, injection molding, color matching, heat transfer, and other processes in sectors such as chemical, petroleum, pharmaceutical, food, fine chemical, environmental protection, synthetic fibers, and mining Cheng is particularly suitable for high viscosity media with small flow rates and impurities or viscosity ≤ 103 CP. Installation dimensions 型号 Model Nominal diameter DN(mm) ⽔⼒直径 Hydraulic diameter dH(mm) 流量 flow  Q(m³/h) SD10-5 DN10…
