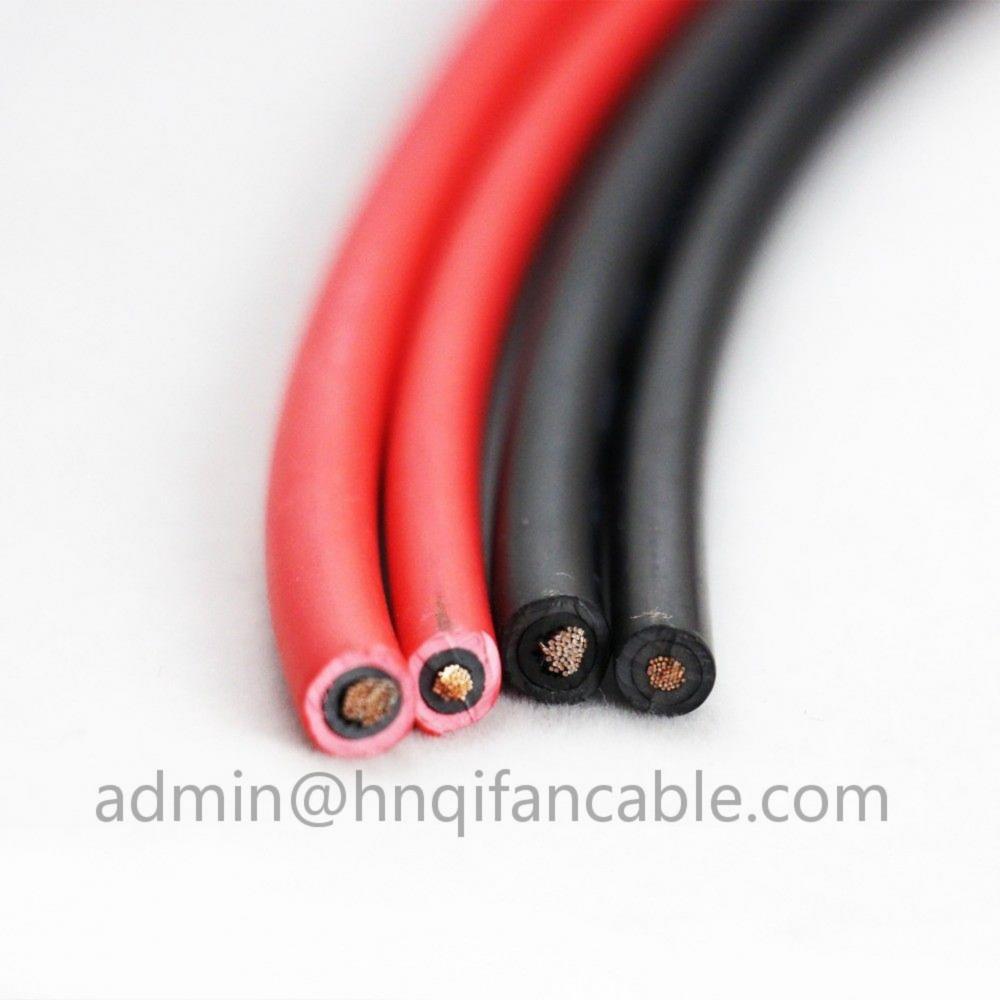

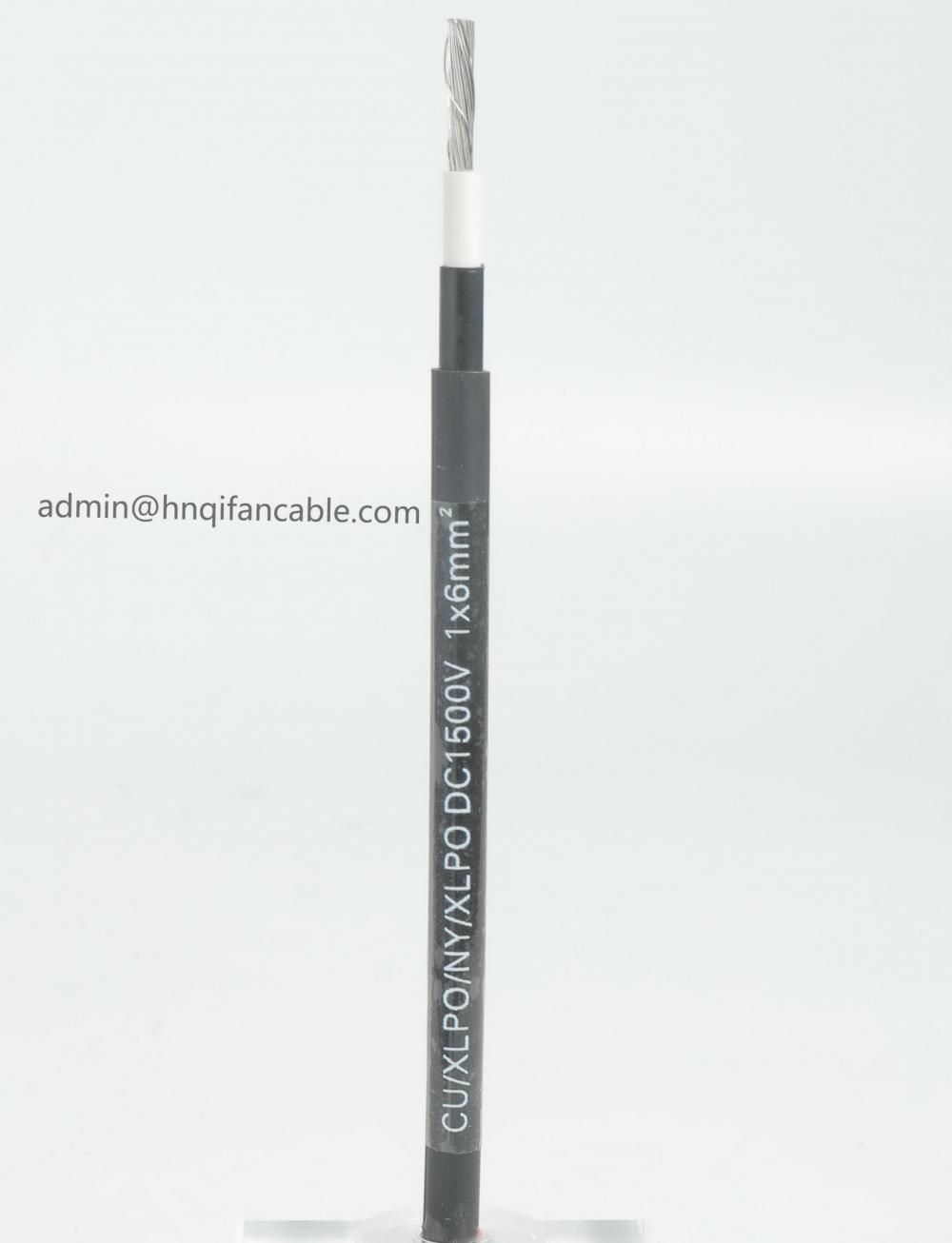

Solar PV Copper Cable 1.5mm2

Solar Cable Application: Solar cables are intented for use in photovoltaic power supply systems and similar applications as free hanging, movable, fixed installation and buried in ground in constructional covered systems. The cables can be used indoor, outdoor, in hazard explosion areas, in industry and agriculture. They are suitable for applications in equipment with protective insulation Applicable standards:EN 50618  2 Pfg 1169   IEC62930  Production Scope: Nominal Cross-section: Type:PV1-F or PV cable or PV solar cable(1.5mm2-35mm2) Type:H1Z2Z2-K(1.5mm2-240mm2) Rated Voltage:   U0/U=0.6/1.0KV AC, 1000/1800VDC Core Number:  Single cor or twin core Characteristic Fire resistance: IEC 60332-1 Smoke Emissions: IEC 61034; EN 50268-2 Low fire load: DIN 51900 Nominal voltage: U0/U=600/1000VAC, 1000/1800VDC Test voltage: 6500V, 50Hz, 5min Rated temperature: -45ºC ~ +125º…
