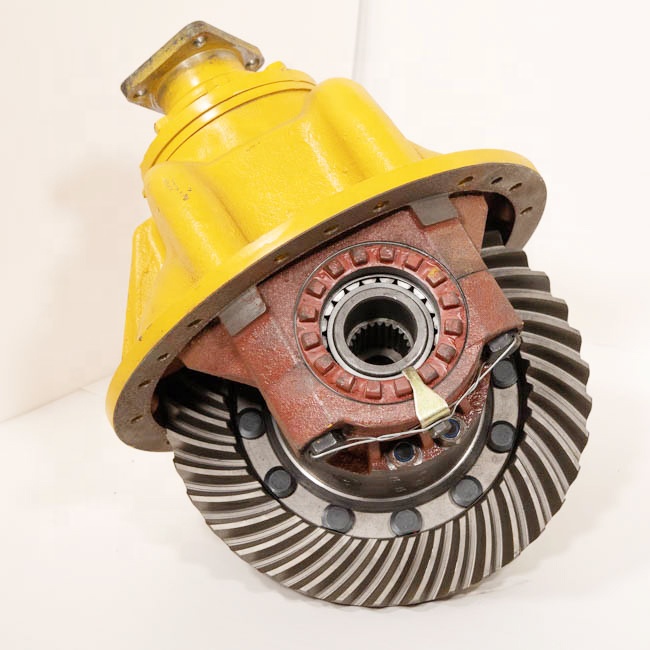

The main drive of the drive axle is composed of two parts: one part is the main drive composed of the driving spiral bevel gear and the driven large spiral bevel gear; the other part is the left housing of the differential, the right housing of the differential, the bevel gear, and the axle shaft Differential consisting of bevel gear and cross shaft. The bracket is the support body for the main transmission and the differential. The driving spiral bevel gear is directly mounted on the bracket, and the driven large spiral bevel gear is mounted on the right housing of the differential, and is also mounted on the bracket together with the differential assembly. The power is transmitted from the transmission through the drive shaft to the driving spiral bevel gear, which drives the large spiral bevel gear to drive the differential assembly to rotate together, and then the power is transmitted to the side gear connected by the spline through the side gear of the differential. On the half…
