Support Foundation Ground Screw Pile Helical Piers

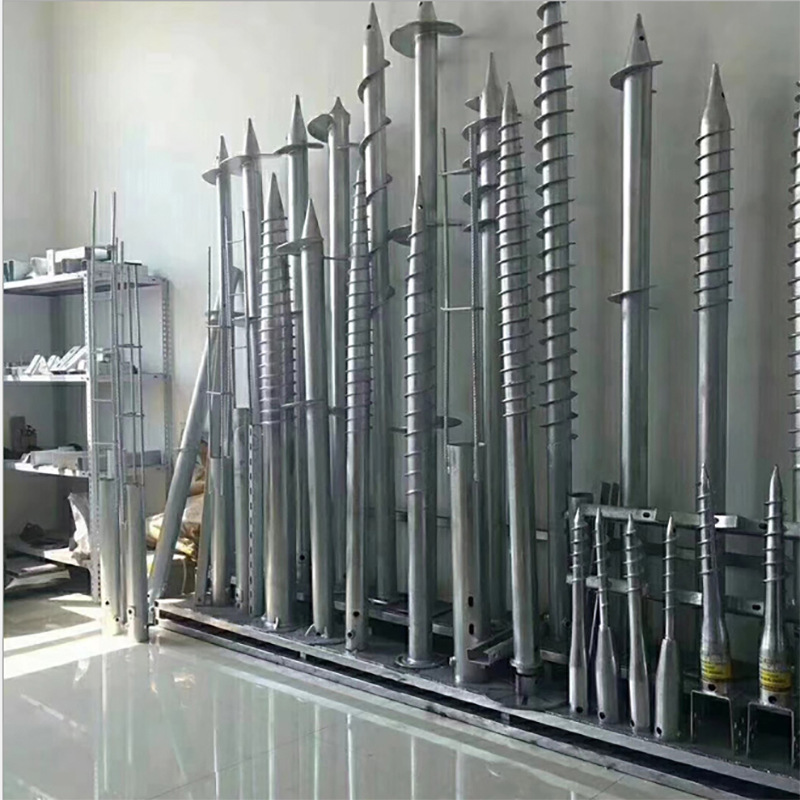

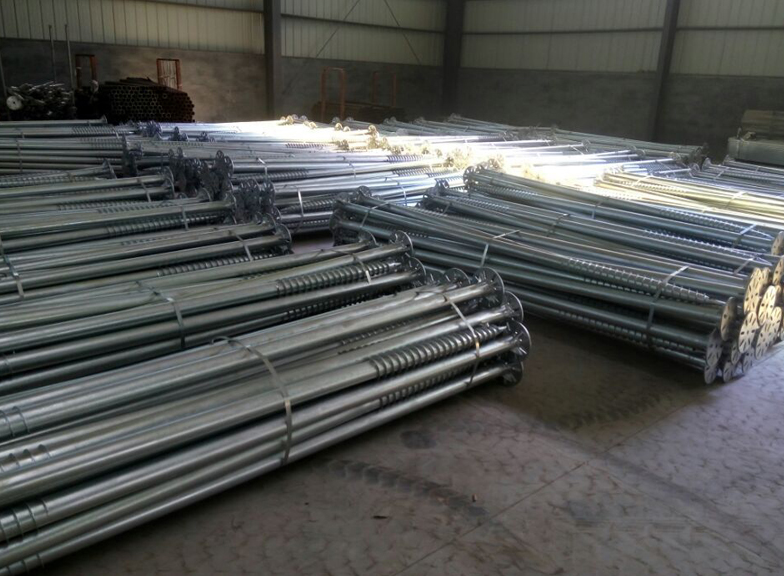

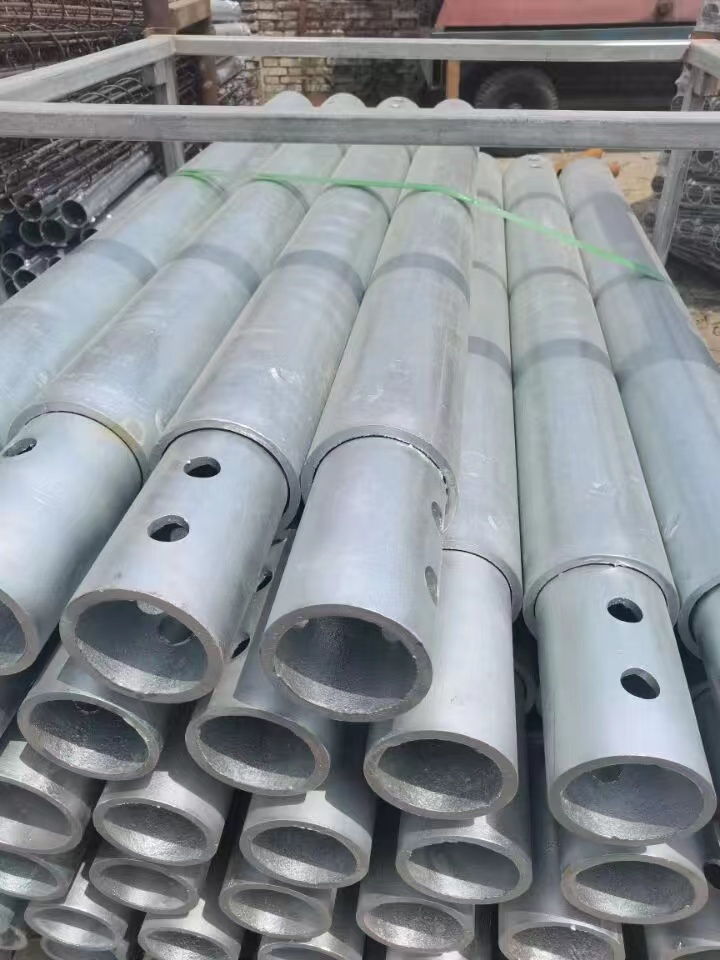

Ground Screw mainly are Flange Ground Screw and nut Ground Screws without flange .In order to drill into the ground easily,the Ground Pile usually has a sharp head.The sharp head and part of the steel pipe go into the ground.The flange or metal pipe exposed above the ground is used to connect and reinforce the upper supporting structure. Ground Screw Piles used in timber construction, civil and mining projects, for temporary or permanent use . The Helix Ground Screw also can be use in vineyard, farm or horse fence. Hot dip galvanized Flange Ground Screw for lighting pole, timber construction, farm and fencing, house construction. The Flange Ground Screw with flange, flange size is 8*200 mm, or 6*160 mm or according to clients' request. Material of Helical Ground Screw:S 235 carbon steel Length of the F Series Ground Screw:550-6000 mm. Ground Screw Pile's diameter:48 mm,68 mm,76 mm,89 mm,114 mm,according to clients' request. Thickness of pile:2.75 mm,3…

Photovoltaic Bracket ,Solar Panel Bracket Ground Spike / Pole Anchor /Square Anchor Ground/Earth Anchor Ground Screw Pile F Series Ground Screw
