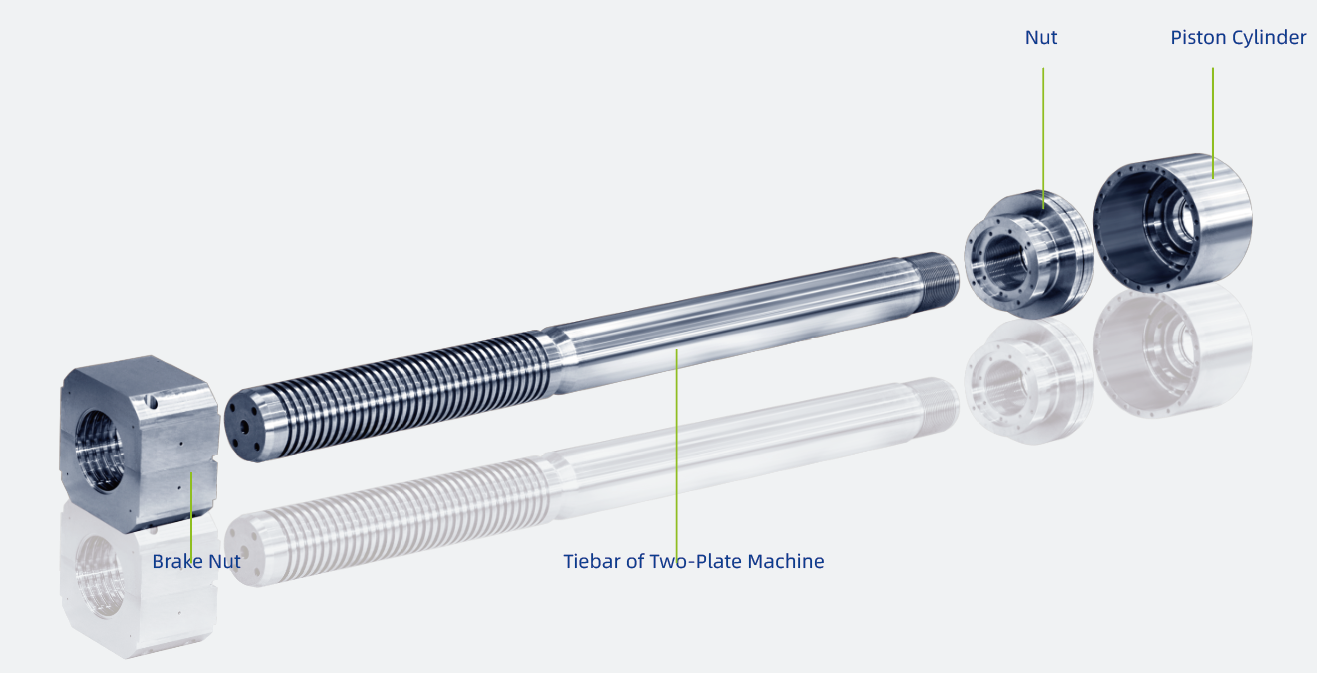

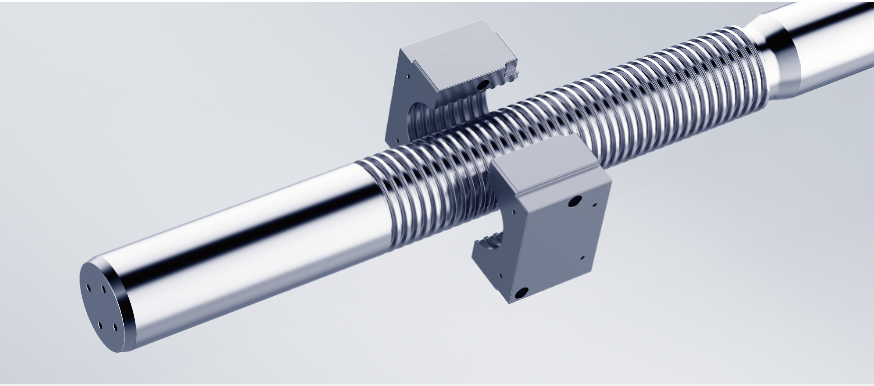

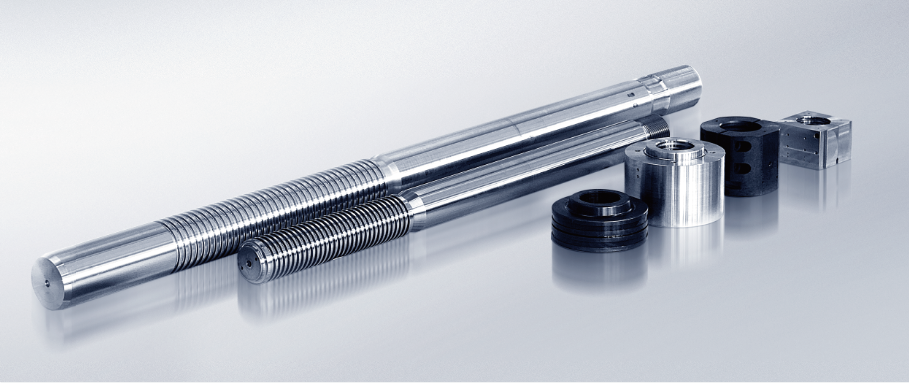

Tiebar of two-platen injection moulding machine

Brief introduction： Tiebar of two-platen injection moulding machine It is mainly used for medium and large tonnage plastic injection moulding machines over 500T, which adjusts the platen in-between  distance through the ring groove Basic parameters： Surface processing technology: nitriding, post-oxidation treatment, Chrome plating Gas nitriding process: nitriding depth: more than 0.2mm, surface hardness: HV650~HV750 Chrome plating process: thickness of the plating layer: 0.02MM~0.08MM, hardness: above HV650 Processing dimensions: outer diameter: 150mm~600mm, length: 2500mm~10000mm  Surface finish Ra        : Ra≤0.4 Scope of application： Composition and process： Company Overview Established in 1994, Zhejiang Huaye Plastics Machinery Co., Ltd. now is the leading manufacturer of screws, barrels and tie bars in the world. We provide the injection m…

Screw & Barrel For Rubber Machine HY1 sintered barrel HY1 sintered screw HK2 Iron Base Bimetallic Barrel HK6 Nickel Base +45% Tungsten Carbide Bimetallic Barrel
