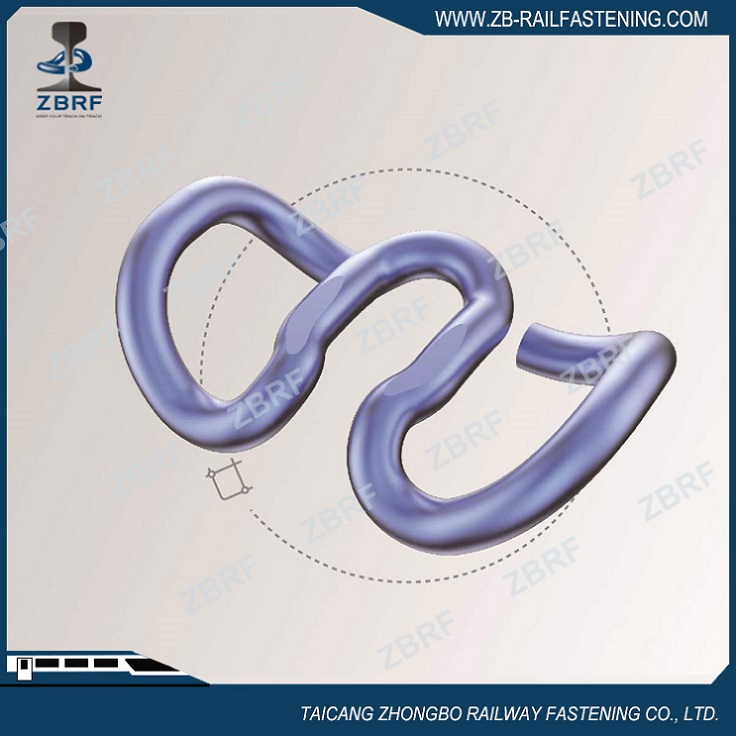

W14 rail clip for rail fastening

W14 elastic rail clip used with railway sleeper to fasten rails on both sides. The rail clips are usually made of forged spring steel, which are manufactured by hot forging process. The forged rail clips are considered to be better than other metal forming process due to most uniform microstructure. Technical Parameters of W14 Elastic Clip Material: 60Si2Cr, 60si2Mn,38Si7 Standard: GB/T 1222, DIN 17221 Product properties: Hardness HRC42-47 Fitague test≥ 5 million cycles Clamping force ≥10KN to EN 13146-7 Coating: Plain, painting, mechanical galvanized Reference Project of W14 Elastic Clip 1.Saudi Arabia 2.Kazakhstan 3.Thailand 4.USA Recent Reference Project of W14 Elastic Clip 1. Egypt-- 500,000each in 2021 2. Mexico--1,698,864each in 2021 Photo of W14 Elastic Clip Main Elastic Clip Types * E Type Elastic Clip Size:  Φ16: E1609,etc Φ18:E1806,E1809,etc. Φ2…
