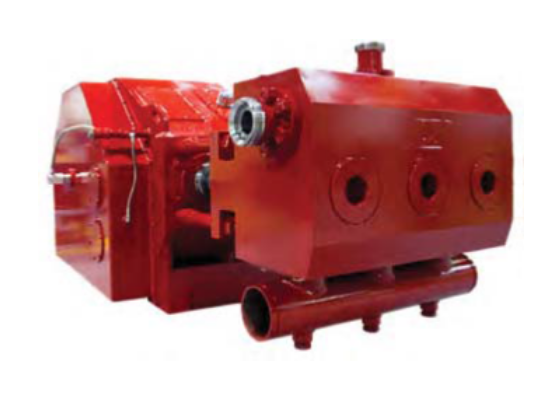

WS-2400 Triplex Plunger Pump

The WS-2400 is a 2400 horsepower 8” stroke intermittent duty single acting well service plunger pump. It is equipped with a forged alloy steel mono-block fluid end and rated at pump speeds up to 330 RPM and maximum discharge pressures up to 20,000* psi. This triplex pump can deliver up to 1227 GPM and it is equipped with 6.35:1 gear reduction drive. YIDA well service pumps are built for today’s rugged pumping applications such as fracturing, acidizing and matrix stimulation. YIDA field-proven and time-tested well service pumps are available in triplex and quintuplex designs. YIDA manufactures quality and reliability into every well service pump that comes off the production line. YIDA well service pumps offer:

Quintuplex Pump Triplex Pump
