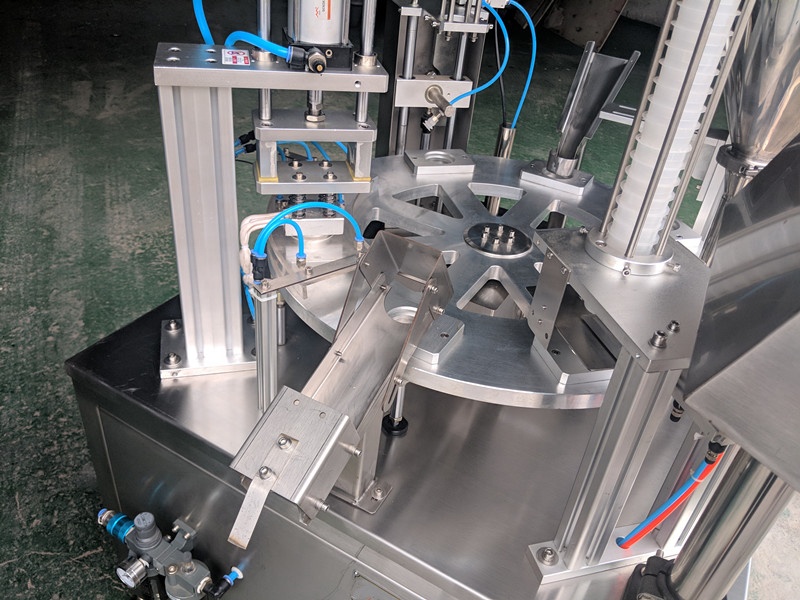

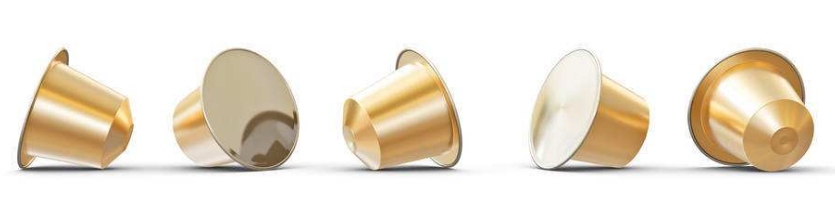

This machine is a full automatic packaging production line for coffee capsule. This machine adopts stainless steel fuselage, accords with hygienic requirements and cleanliness; specialized for producing coffee capsule to be filled and sealed. It can be applied to nespresso, k cup from automatic lift cups, quantitative filling, heat sealing system, and a series of processes can be automatically completed; It can be customized for packimg fime cofieelcoliee powder), coarse coffeelcollee granule), tea powder, coconut powder and soon
Process
1.Automatic cup dropping
2.Auger filling with compact
3.Automatic foil suek
4.Automatic sealing
5.Automatic cup exit
Technical parameter
KIS-900
Rotary Type Automatic Cup Filling Sealing Machine
Production capacity
1600-1800 cups hour
Voltage
380V/50Hz
Air consumption
0.6/min
Cup Size
10mm-150mm
Power
3.2kw
Dimens1on
1200*1200*1800mm
Weight
320kg
