ZHH Mixed Vertical Pump Made in PRC

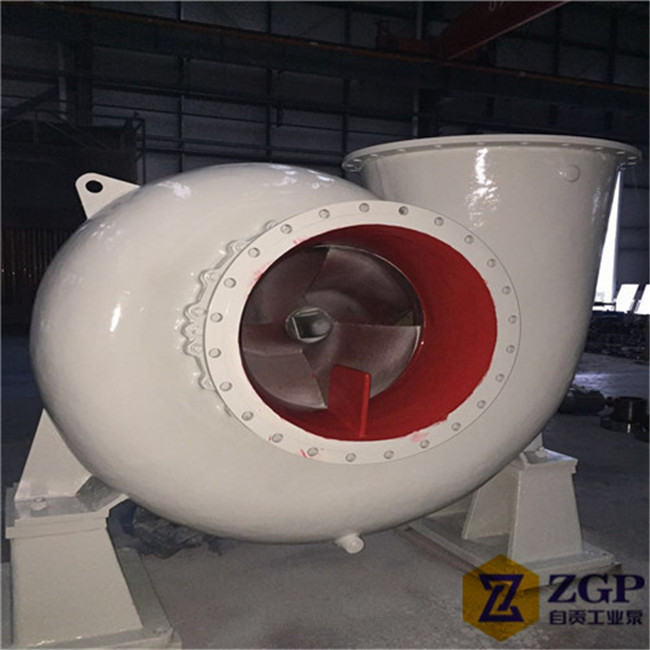

ZHH Mixed Vertical Pump Made in PRC  1. Motor engine pumps parameters: Flow rate: 200~8300 (m3/h) Head: 5~19 (m) Speed: 490-1450rpm Temperature: 0~105°C 2. Vertical Mixed Flow Pump  characteristics The pump is a horizontal, single-stage, single-suction, cantilever, volute mixed-flow pump, direct-coupled transmission, pump and motor on the common chassis welded by the steel, and the direction of the pump impeller is clockwise from the motor transmission side. 3. Single Stage Vertical Pump structure Pump head The pump body, impeller, impeller, rear pump cover, inlet chamber, packing chamber and other over-current parts are made of 1Gr18Ni12Mo2Ti stainless steel, which has strong adaptability to various medium corrosion. The pump body supports the bottom surface and the pump body center inlet. Central exit. The rotor part can be removed back together with the rear pump cover when inspecting replacement parts, and the inlet and outlet…
