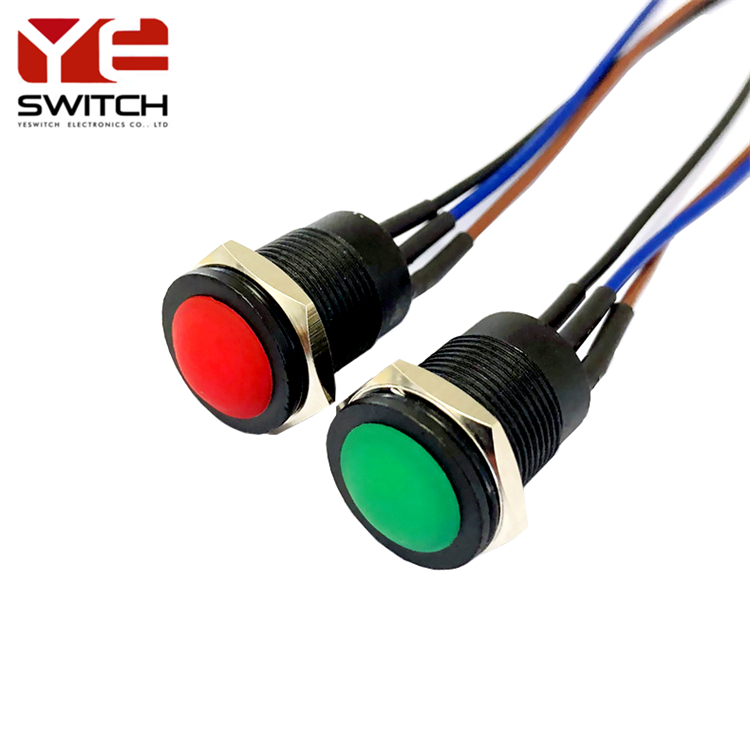

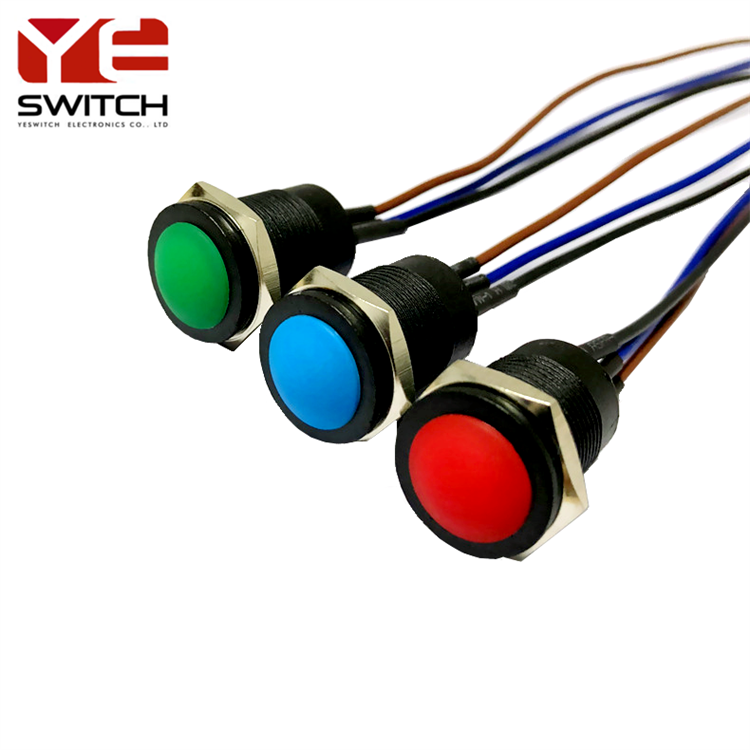

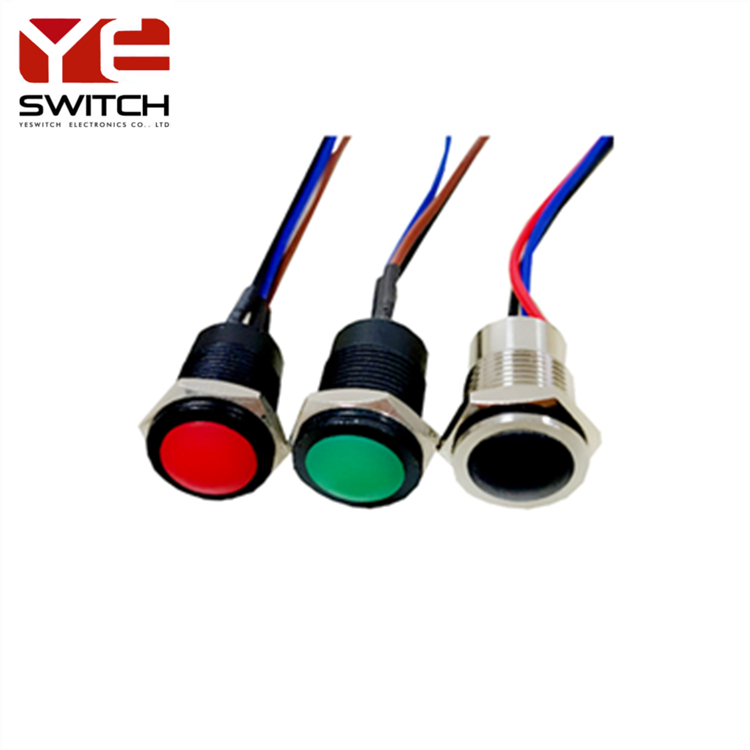

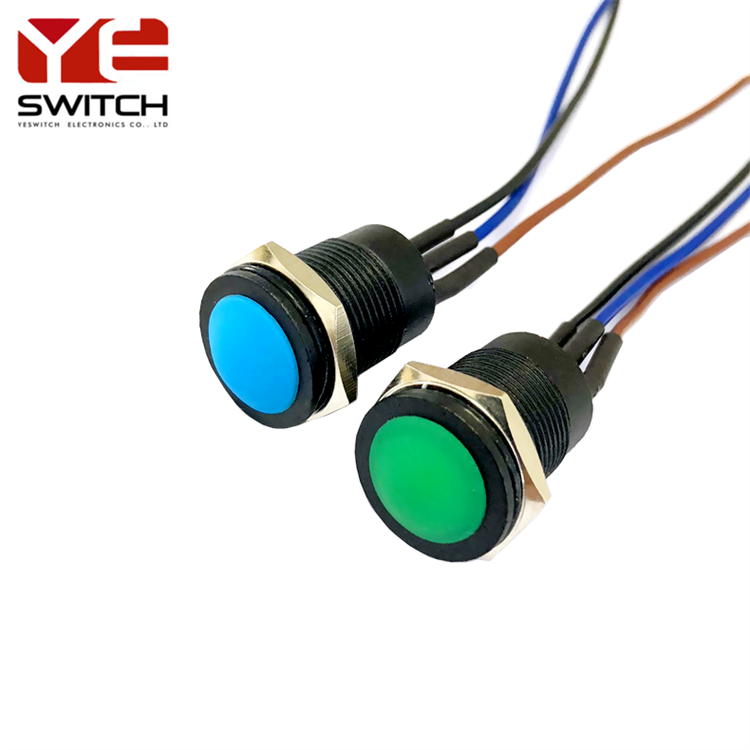

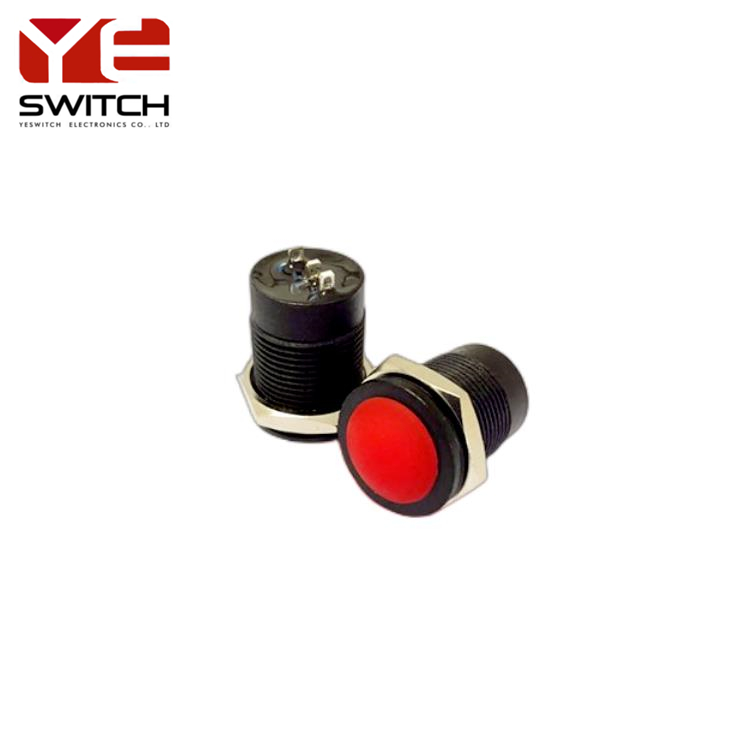

16mm Waterproof Pushbutton Switches

16mm Waterproof Pushbutton Switches SPECIFICATIONS SAFETY/QUALITY APPROVALS TUV/CQC/CE/SGS/REACH/IP68/CTUVUS   Panel Thickness: Ø16.20 Contact Rating: lth 5A/250VAC  resistive load 3A/250VAC Mechanical Life: Momentary 200,000 cycles   Self-lock 100,000 cycles Electrical Life: 50,000 make-and-break cycles at full load Torque: 5~14Nm Travel: About 3.0mm Operation Pressure: 2.5±1N  Contact Resistance: 50 mΩ max.  Insulation Resistance: 100MΩ min. Dielectric Strength: 2,000 Vrms @sea level. Operating Temperature: -20°C to 85°C Ingress Protection: IP68   MATERIALS BUSHING : Stainless Steel / Nickel plated brass / Alumin…
