E32/EY32/E25/EY25 series multiple direction valve

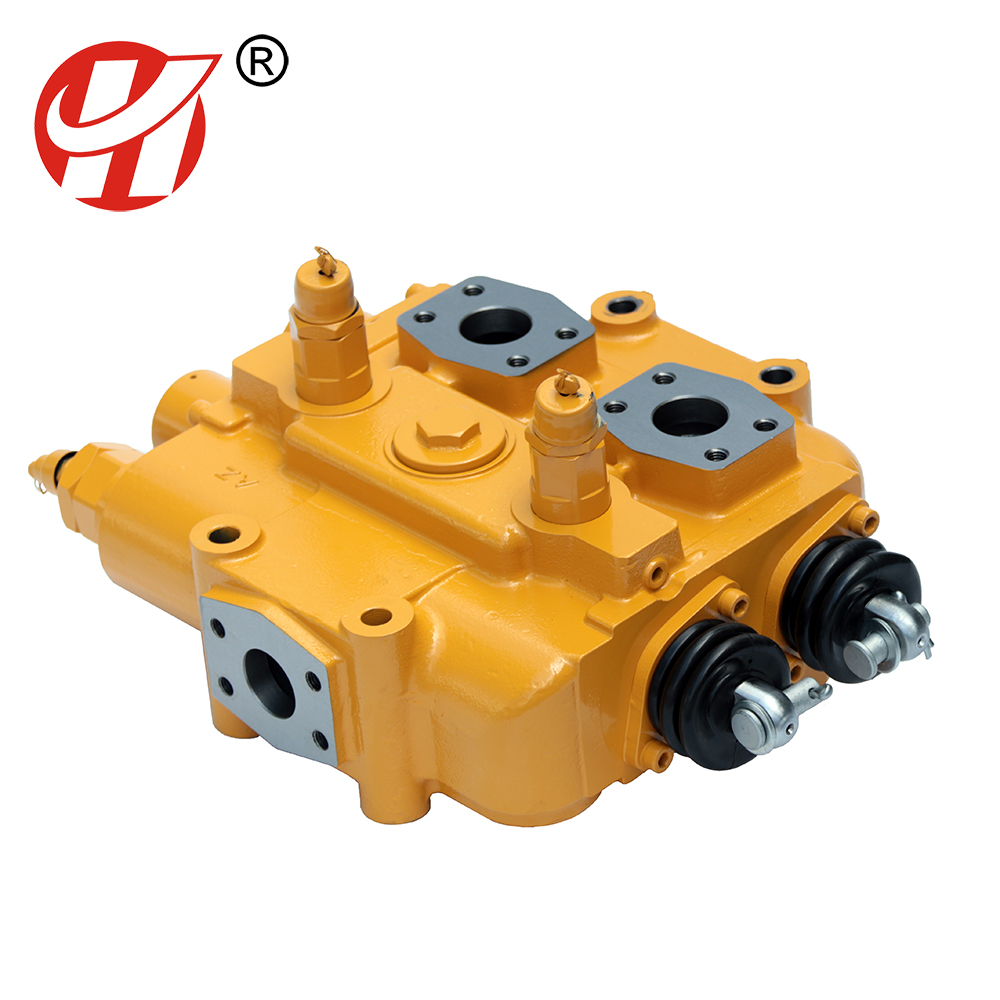

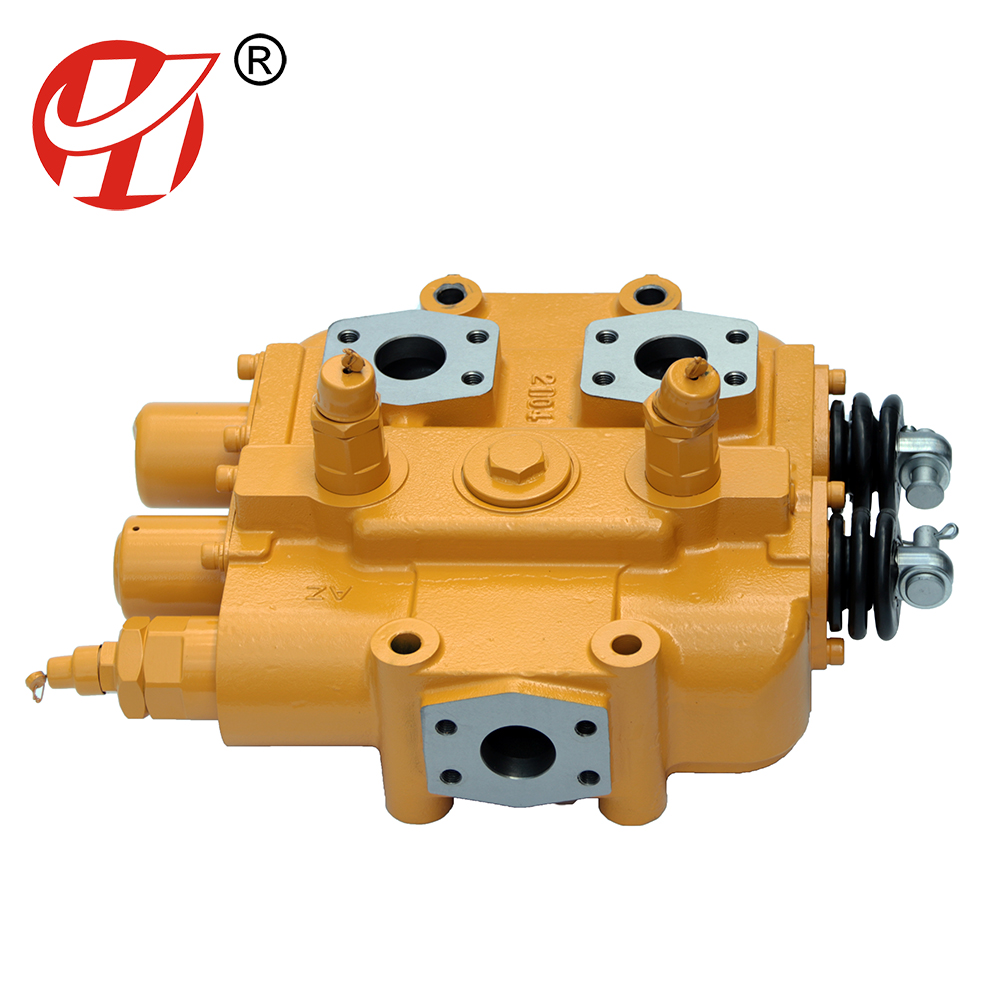

E32/EY32/E25/EY25 series multiple direction valves E32/EY32/E25/EY25 series multiple direction valves are used in the working system of large and medium-sized loaders to control the movement of the bucket cylinder and the boom cylinder. It is equipped with safety valve, overload valve, anti-cavitation valve and other auxiliary valves. Manual and hydraulic control are available. Technical parameter Diameter: 25/32 Flow rate: 300 L/min(D32); 200 L/min(D25) Pressure: 200 bar Return oil pressure: ≤15 bar Pilot control pressure: 30 bar Pilot control curve: 4bar—25bar Viscosity range: 10-380 mm2/s Oil temperature range: -20℃—100℃ Oil cleanliness: the solid particle pollution level of oil and system shall be less than GB/T 14039-2002—/19/16 or NAS 1638 grade 10 Approx. Weight: 39kg(D32); 35kg(D25)    Hydraulic system schematic EY32/EY25…
