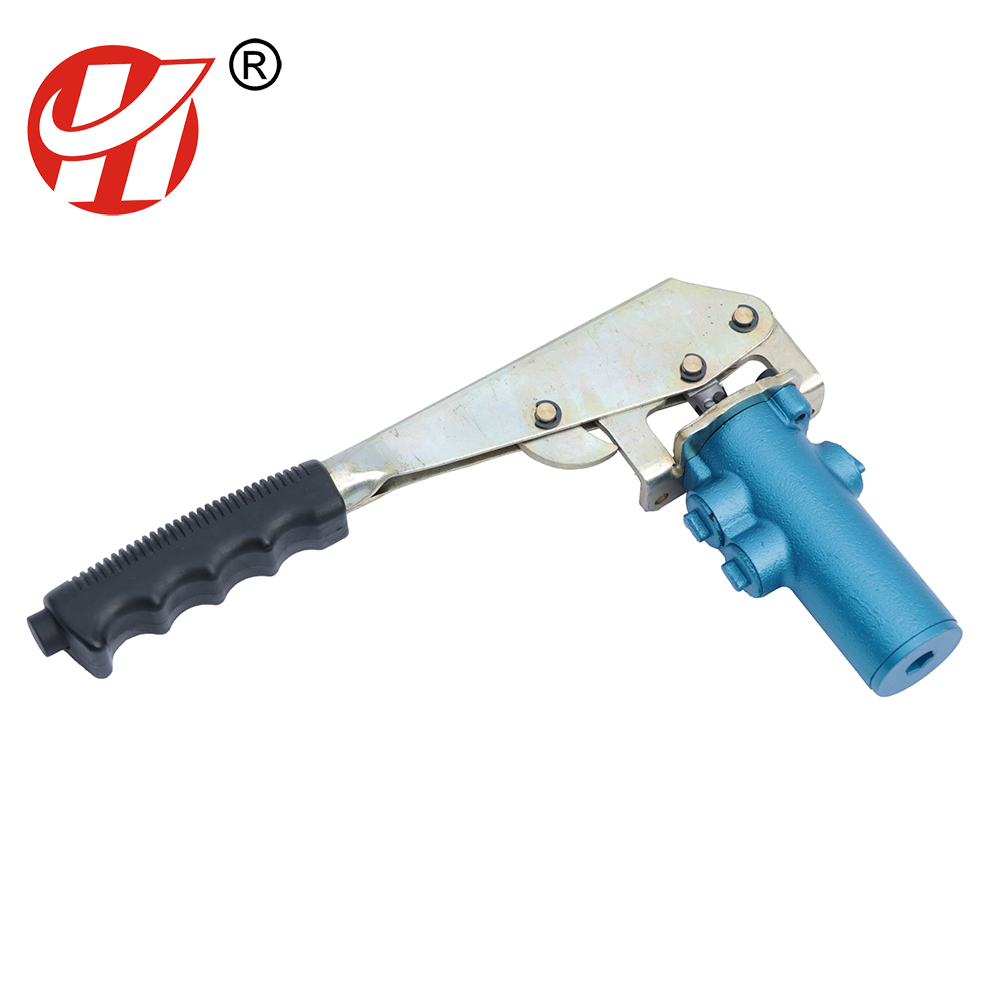

PDF18-00 parking hand brake valve
The valve is a two position three-way reversing valve, which is used with a reverse regulating hydraulic control valve to realize the driving / parking functions of the vehicle by connecting / cutting off the oil circuit. The operating handle is similar to the parking handbrake on the car. There is a self-locking mechanism in the parking position to prevent misoperation, which is both beautiful and functional.
Technical parameter
Max. pressure at port P: 20MPa
Flow rate: 25L/min
Return oil pressure: ≤0.5MPa
Viscosity range: 10-380 mm2/s
Oil temperature range: -20℃—100℃
Oil cleanliness: The solid particle pollution level of oil and system shall be less than GB/T 14039-2002—/19/16 or NAS 1638 grade 10
Approx. weight: 1.8kg
Hydraulic system schematic
Installation connection size
