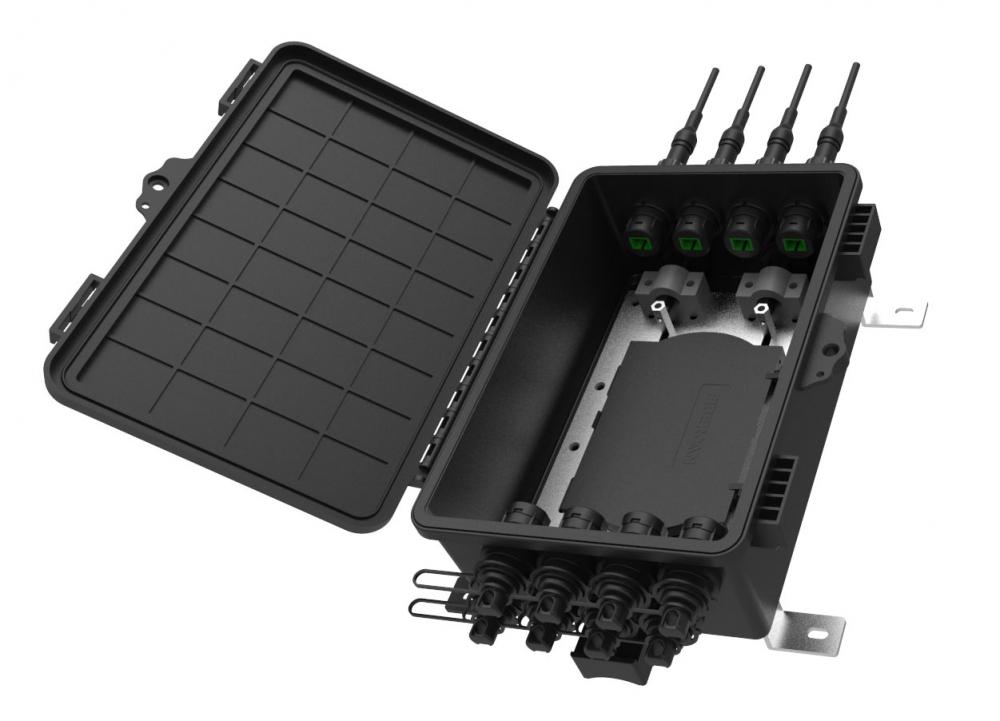

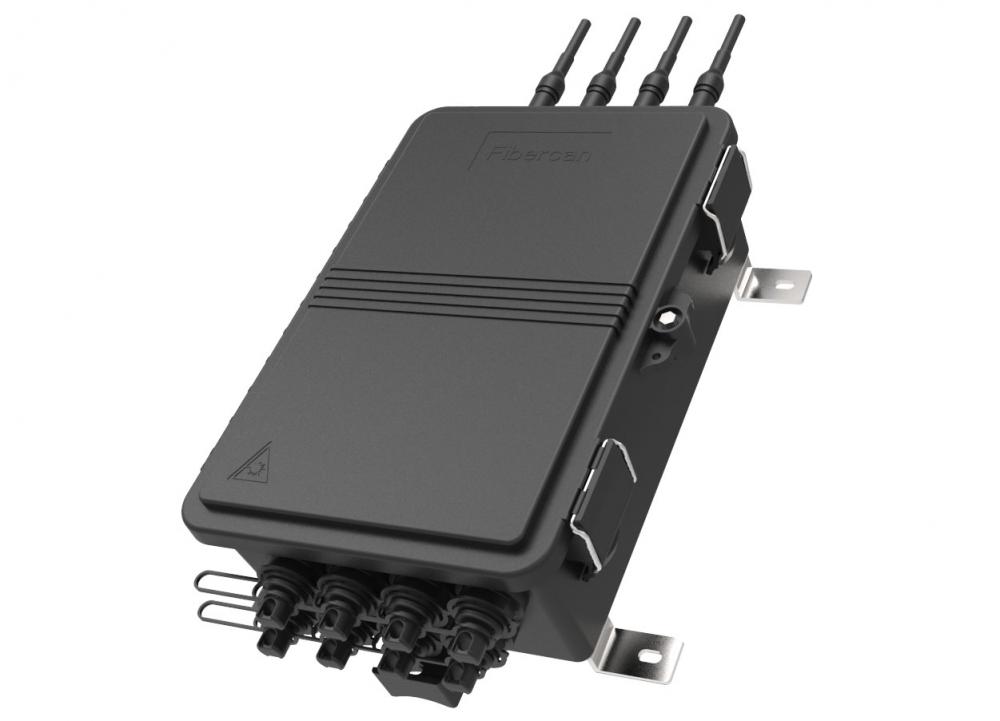

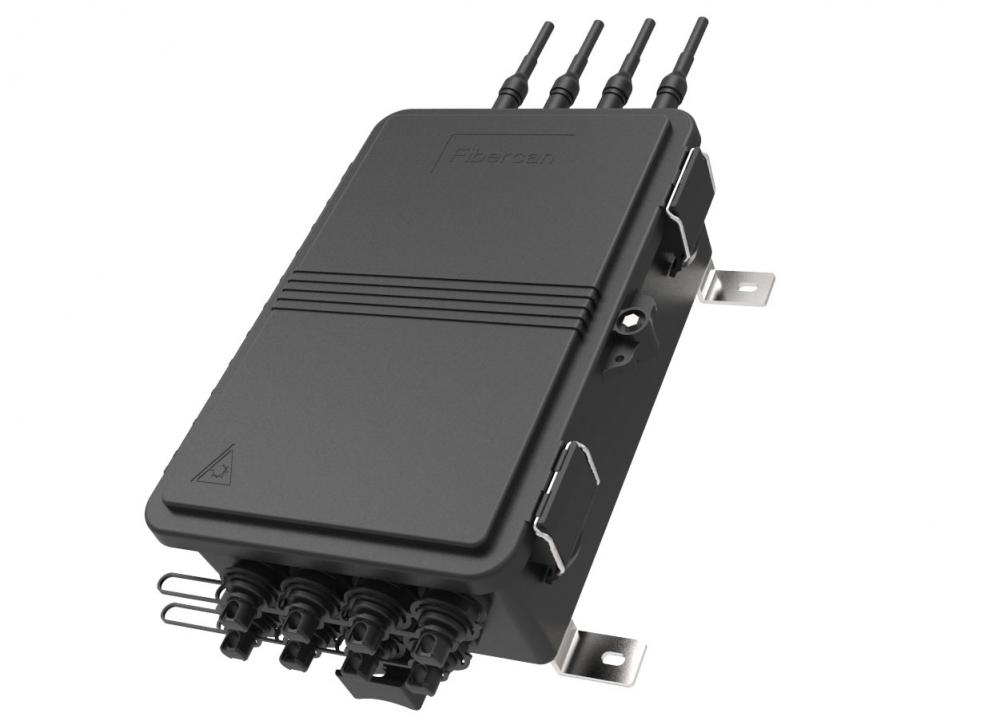

Fiber Optic IP68 Splice Box

Fiber Splice Capacity: 4-24 Fiber Splitter Capacity: 1x8 PLC Splitter Incoming Cable: Outdoor Cable 4-24 Fiber Connector Type: SC Simplex, LC Duplex, MTP/MPO in Toptap and M-SC Connector Connector Standard: Insertion Loss＜0.3db Compatible Connectors: Corning Optitap,Huawei Mini-SC,Amphenol H-Connector IP Rating: IP68 Material Type: ABS+PC Mounting Method: Hanging, Wall Mounted, Pole Mounted RoHs, Reach, UL-94-V0 compliance Package: Every piece in a paper box, full equiped or empty Pigtail Inspection Standard:       1. Endface: IEC-61300-3-35 2. Optical Performance: IEC-61300-3-34  3.Mechanical Tensile: IEC-61300-2-6,IEC-61300-2-4 4.Durability: IEC 61300-2-2 5.Vibration: IEC 61300-2-1 6.Torision:  IEC 61300-2-5 7.Drop：IEC 61300-2-12 (Method A) 8.Static Load: IEC 61300-2-42  9.Flex: GR‐326‐CORE, 4.4.3.2 10.Cold Test:  IEC 61300-2-17 11.Dry Heat:  IEC 61300-2-18 12.Damp Heat: IEC 61300-2-19 13.Temperature Change: IEC 61300-2-22 1…
