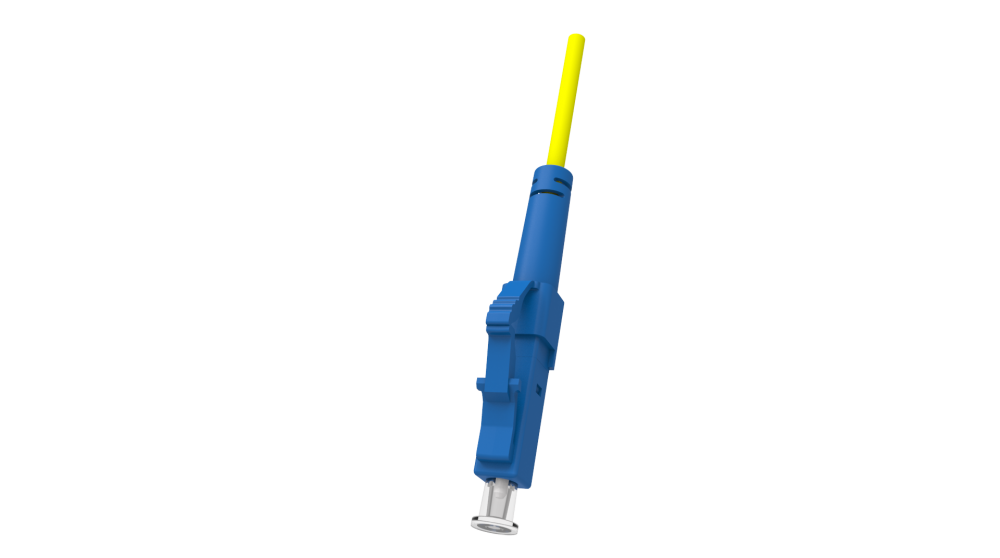

LC Fiber Optic Connector with Short Boot

Connector Type: LC/APC LC/UPC LC/PC(Multimode) Suitable Cable Type: Simplex or Duplex Indoor Optical Cable Suitable Cable Diametre: 2.0-3.0mm Fiber Type: Singlemode OS2, Multimode OM1, Multimode OM2, Multimode OM3, Multimode OM4, Multimode OM5 Coupling Tensile: 70N for 2.0mm Connector and 80N for 3.0mm Connector Standard compliance: IEC, GR-326, RoHs, Reach Compliance Quality Level: Grade A/1, Grade B/1, Grade C Test Standard: 1. Endface: IEC 61300-3-35 2. Optical Performance: IEC 61300-3-34 3. Mechanical Tensile: IEC 61300-2-6, IEC 61300-2-4 4. Durability: IEC 61300-2-2 5. Vibration: IEC 61300-2-1 6. Torsion: IEC 61300-2-5 7. Drop: IEC 61300-2-12(Method A) 8. Static Load: IEC 61300-2-42 9. Flex: GR‐326‐CORE, 4.4.3.2 10. Cold Test: IEC 61300-2-17 11. Dry Heat: IEC 61300-2-18 12. Damp Heat: IEC 61300-2-19 13. Temperature Change: IEC 61300-2-22 14. Damp Heat: IEC 60068-2-30 15. Salt Mist: IEC 61300-2-26 16. Humidity Cycling: IEC 61300-2-21 17. Dust: IEC 61300-2-27 18. Cab…
