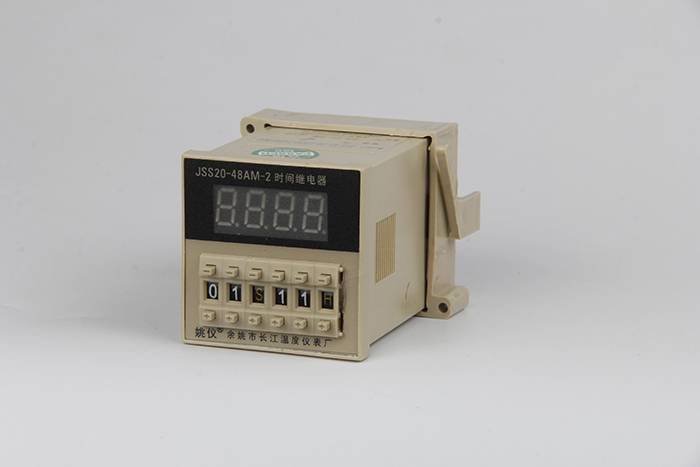

JSS20-48-2 Double Time Control Digital Display Time Relay

JSS20-48-(2*99HMS)  Double Time Control Digital Display Time Relay is the type of prolonging the connection with the electricity and one of the newly control instruments during these years，The relay adopt CPU and 4-LED display,it applies component AC 60HZ，operating voltage is 220V ，and control the circuit during the scheduled time. Ⅰ、Technical Index 1、Display method：4-LED display directly the time； 2、Distinguish ability： 1s、1min、1h； 3、Control Range：1S～99H； 4、Setting method：Second（S）、Minute（M）、hour（H）can set by selection freely； 4、Power supply：AC85~242V/24V   50Hz   5、Power consumption：﹤3W  6、Output trigger capacity:AC220V  3A(resistance negative carry) 7、Working circumstance：temperature 0～50℃，humidity﹤85%RH without corrosive gas situation. Ⅱ、Setting According to the dimension open a hole in the installation hole, install the time relay into the installation hole w…
