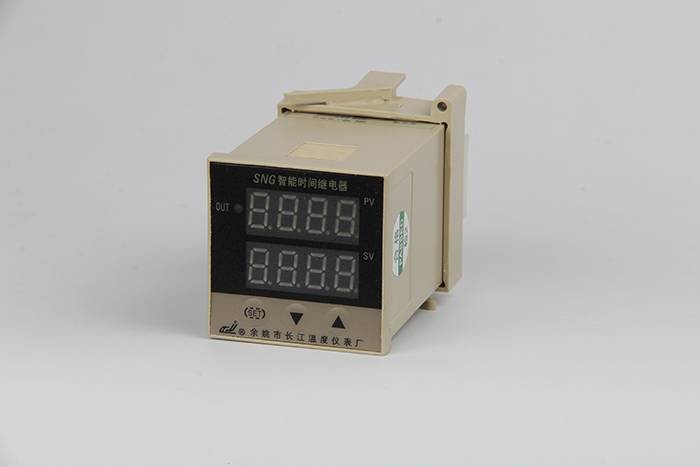

SNG Double Time Control Intelligent Time Relay

SNG Double Time Control Intelligent Time Relay is intelligent double row four-LED display meter, it is operated with three-keys, have the function of single setting、double setting time. Parameters set isfast, symbols display is  simple. The meter adopts the imported super anti-chip design, quality is reliable. Ⅰ、Technical specification: Clock accuracy:class 0.005%F.S Relay output contact capacity： AC220V 5A (resistance load) Work power :AC85～242V 50/60Hz Time range:0~9999second or 0~9999minute Work environment: temperature 0～50℃, humidity≤85%RH  without corrode and strong electric radiation Overall size and installation hole (mm):  48×48×90 ;   44×44 Ⅱ、Panel description（consult） Ⅲ、Operation the instrument Electrify after taking into the power and control circuit according to the connection scheme,and then the instrument start testing itself for 1 second. Connect the reset terminal, the meter start timin…
