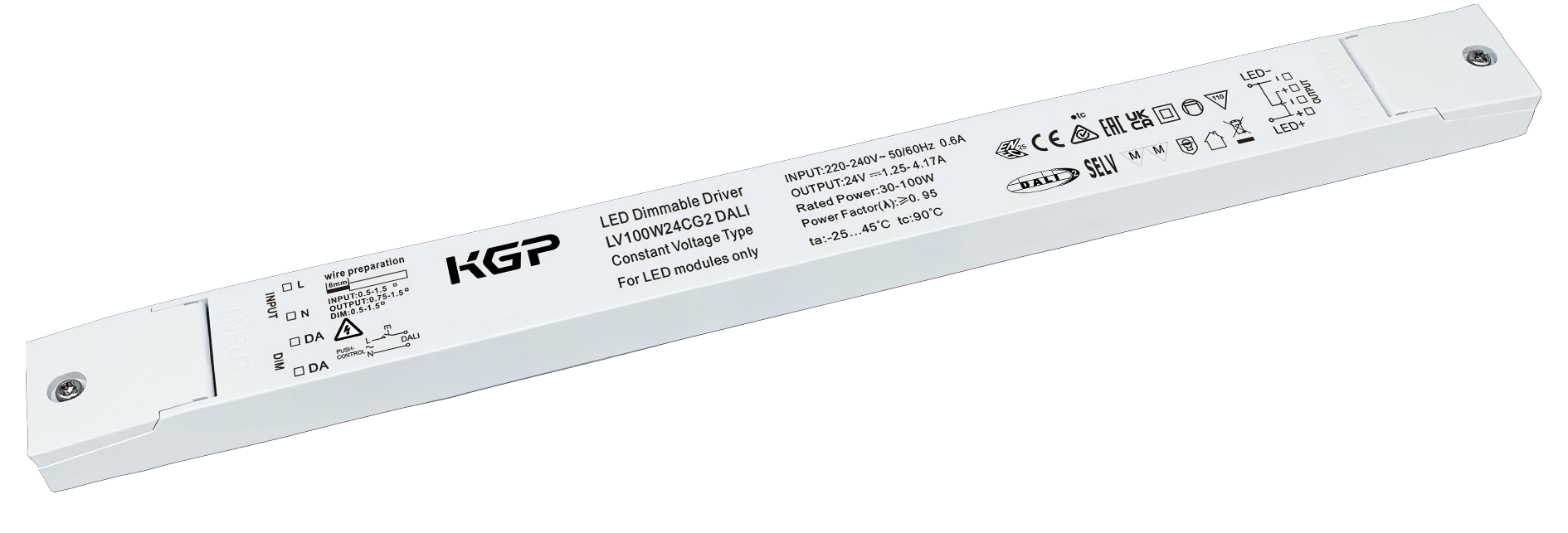

Slim CV DALI series  Led driver ,the advantages of this series are many,the thickness of the product is 16-22mm, of which LV30W-250W24CG2 DALI efficiency can reach 86%-92%,the  Led driver is suitable for line lights,lamp belts. It has the functions of Open Circuit/Short Circuit/Overload, the protection level can reach IP20, and the dimming mode has DALI-2/DT8/NFC setting parameters, which can meet the requirements of various scenarios   1.Product Feature Current ripple: ±5% Dimming range:DT6: 1%-100%, DT8: 0.1%-100% Dimming type:DALI-2, DT8 parameter setting by NFC DALI function:CLO,EL,Part251.252.253,Corridor function, Push Dim Protection: open circuit / short circuit / overload / class II Start time: ≤1S    (230VAC,full load by DALI system) Ambient Temp: -25~45℃ Storage Temp: -25~85℃ 5 years warranty Certificates: DT6: CE/ENEC/SAA/CB Application: Linear light Size:  300*30*16mm (L*W*H)  350*30*18mm (L*W*H)  400*40*22mm (L*W*…
