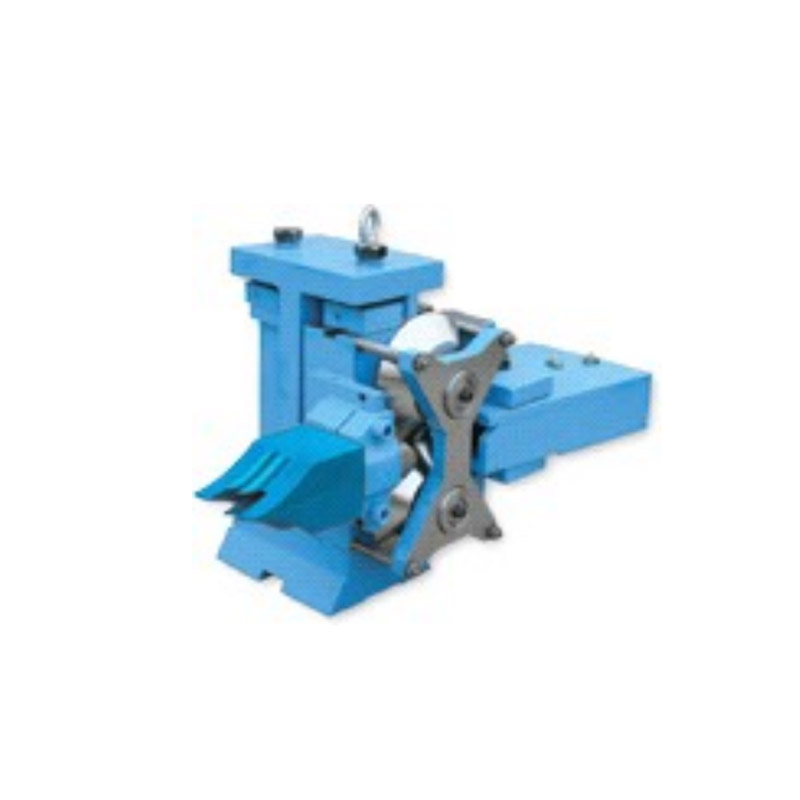

Slitting guides for steel rolling production

Cutting wheel diameter Ф164mm～Ф140mm. The cantilever installation of the cutting wheel is convenient for observation and troubleshooting, and it is not easy to accumulate iron scale. "Worm gear mechanism + eccentric shaft" adjusts the gap between a pair of split wheels, which is a single-point symmetrical adjustment. The split wheel bearings are lubricated with oil, air or grease. There are cooling water holes on the box body, and water is sprayed to cool the cutting wheel. The slitting guide wheel has a large diameter and is suitable for two-cut or three-cut rolling with a specification of Ф10mm～Ф22mm.
