MGXTSV Central tube mining optical cable for outdoor use

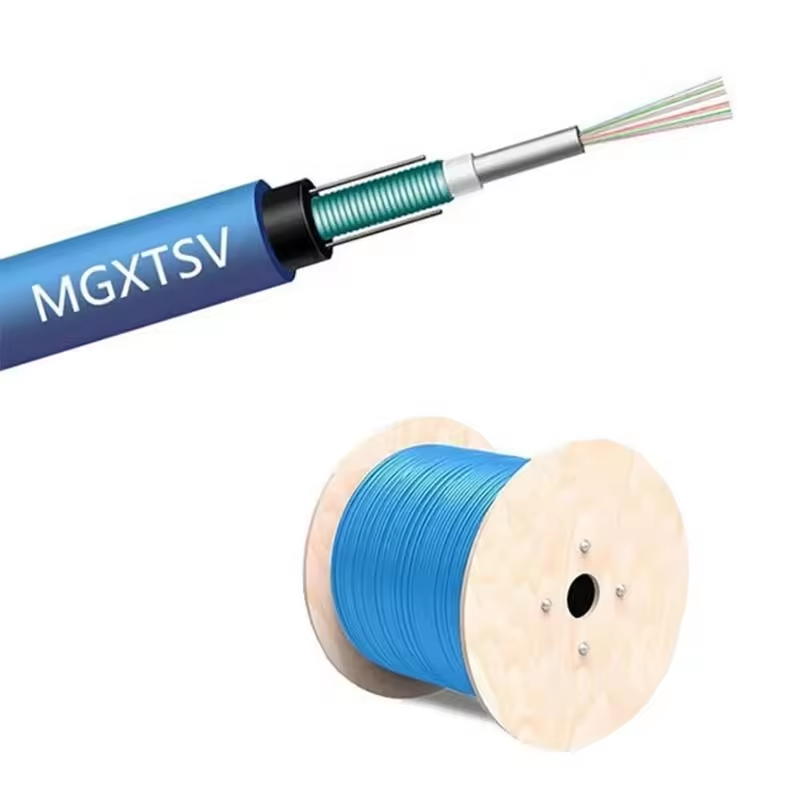

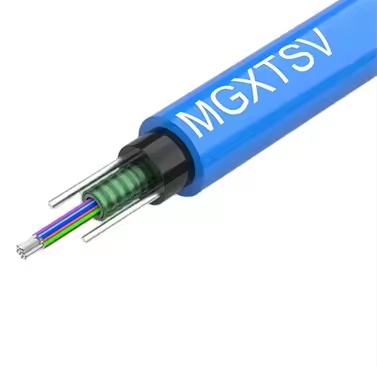

The MGXTSV fiber optic cable structure will be 250 μ M optical fiber put into a loose tube made of high modulus material, Mining Fiber Cable and the loose tube is filled with a waterproof compound. The loose tube is longitudinally wrapped with a layer of double-sided plastic-coated steel strip (PSP), outdoor mining and water-blocking material is added between the steel strip and loose tube to ensure the compact and longitudinal water resistance of the optical cable. understanding mining Two parallel steel wires are placed on both sides to extrude the polyethylene inner sheath, and a layer of polyethylene outer sheath is extruded outside the inner sheath to form the cable.
Item:
MGXTSV
Type
Air blown Cable
Number of Fiber
2-24 Cores
Place of Origin
Guangdong, China
Cable outer diameter
8.5-10.5(mm)
MOQ
2km
cable weight(Kg)
85-116(Kg/Km)
Single package size
45X29X45…
