GYFTY Aerial Outdoor Fiber Optic Cable

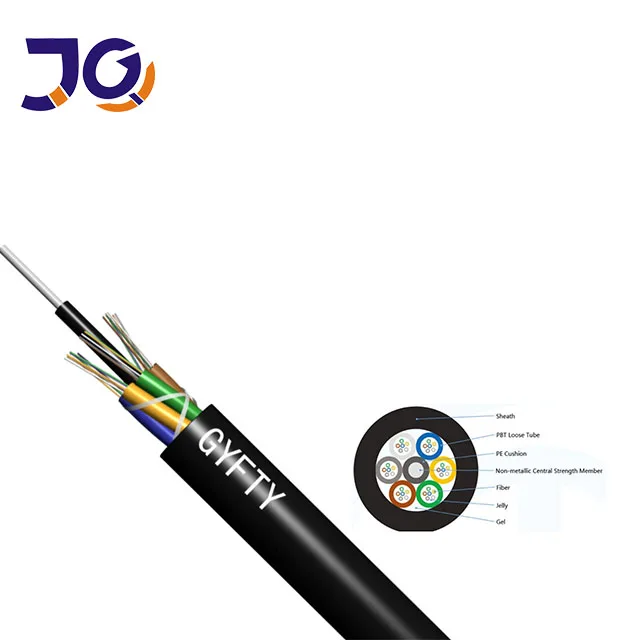

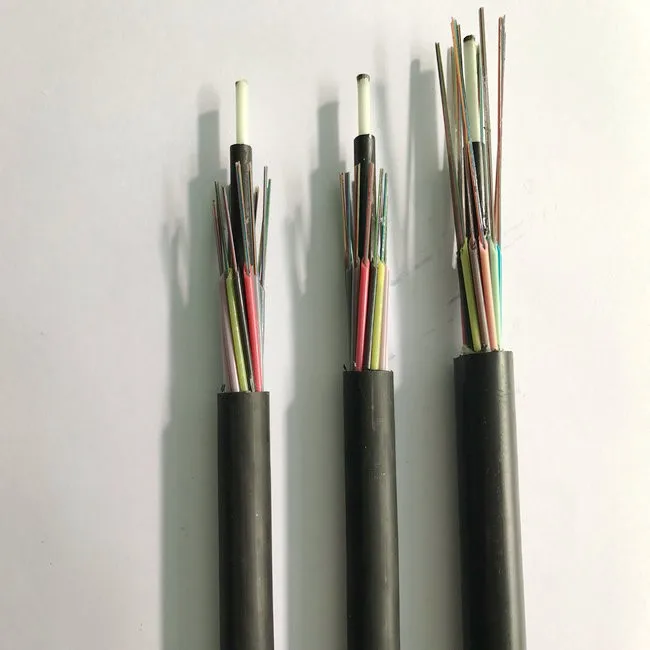

A fiber corroborated polymer line( FPR), sometimes faced with polyethylene( PE) for high fiber count string, is located in the center of the string as a strength member. PBT tubes( and paddings) are stranded around the strength member into a compact and round shape. also the string is completed with a PE jacket. The GYFTY upstanding out-of-door fiber optic string is designed for out-of-door use, featuring a compact and featherlight construction. It's suitable for upstanding installations and offers high- viscosity fiber counts.
Fiber core
Diameter (mm)
weight (kg/km)
Max fiber per tube
Filler+tubes
Allowable tensile load N
Allowable crush resistances (N/100MM)
2-36
10.2
85
6
6
1500 600
1000 300
38-72
11.1
100
12
6
1500 600
1000 300
74-96
12.6
130
12
8
1500 600
1000 300
98-120
14.1
152
12
10
1500 600
1000 300
