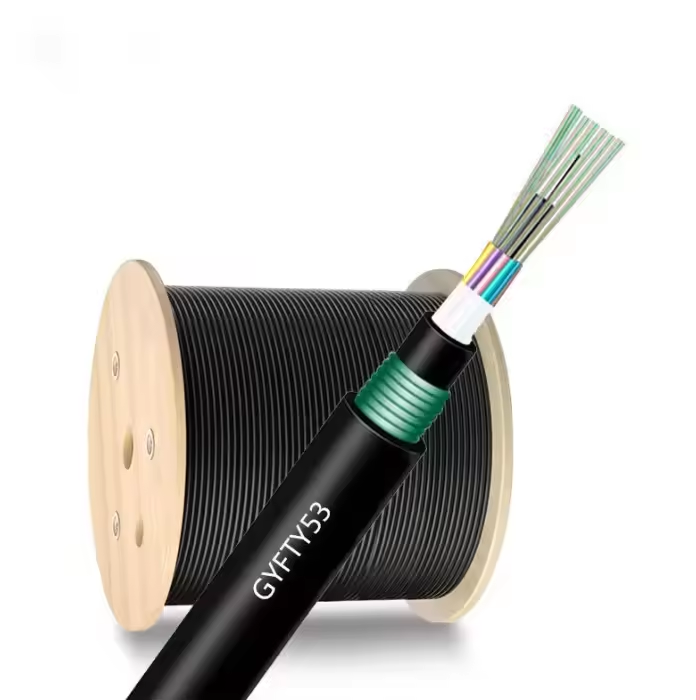

GYFTY53 Stranded Fiber Optic Cable
Our stranded loose tube armored cable is designed for direct burial fiber optic applications. A steel wire or FRP core provides strength, surrounded by stranding tubes and fillers. A compact, circular cable core is then coated with a filling compound and a thin PE inner sheath. A PSP layer follows, with a PE or LSZH outer sheath applied last. Flame retardant options are available upon request. This durable cable excels in direct buried installations.
Item
Parameters
Loose tube
Material
Color
PBT
Full-color spectrum
Filler
Material
Color
PE
Black
CSM
Material
Phosphating steel wire / FRP
Inner jacket
Material
Color
MDPE
Jacket
Outer armoured
Material
Plastic coated steel strip
Outer jacket
Material
Color
MDPE / LSZH
Black
Min. bending radius
Static
Dynamic
12.5 times cable diameter
25 times cable diameter
Repeating bending
Load:150N;number of cycles:30 No obvious a…
