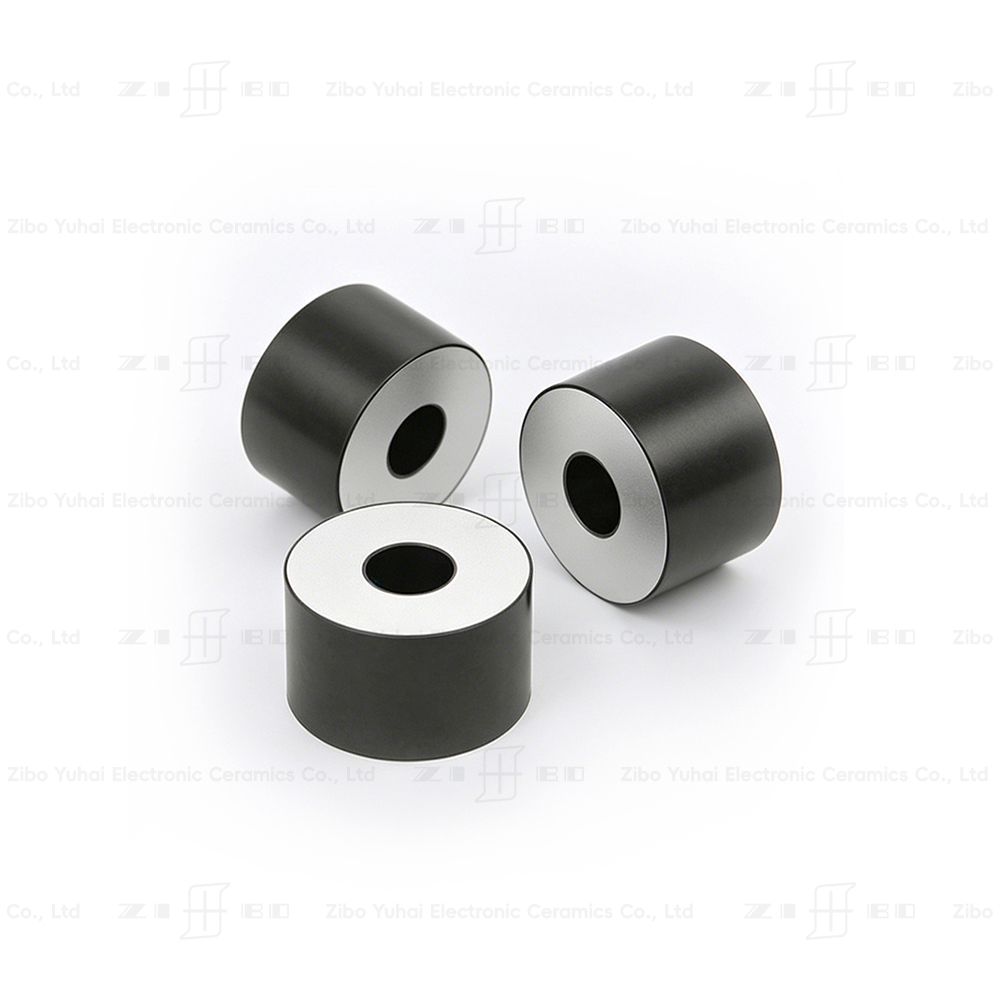

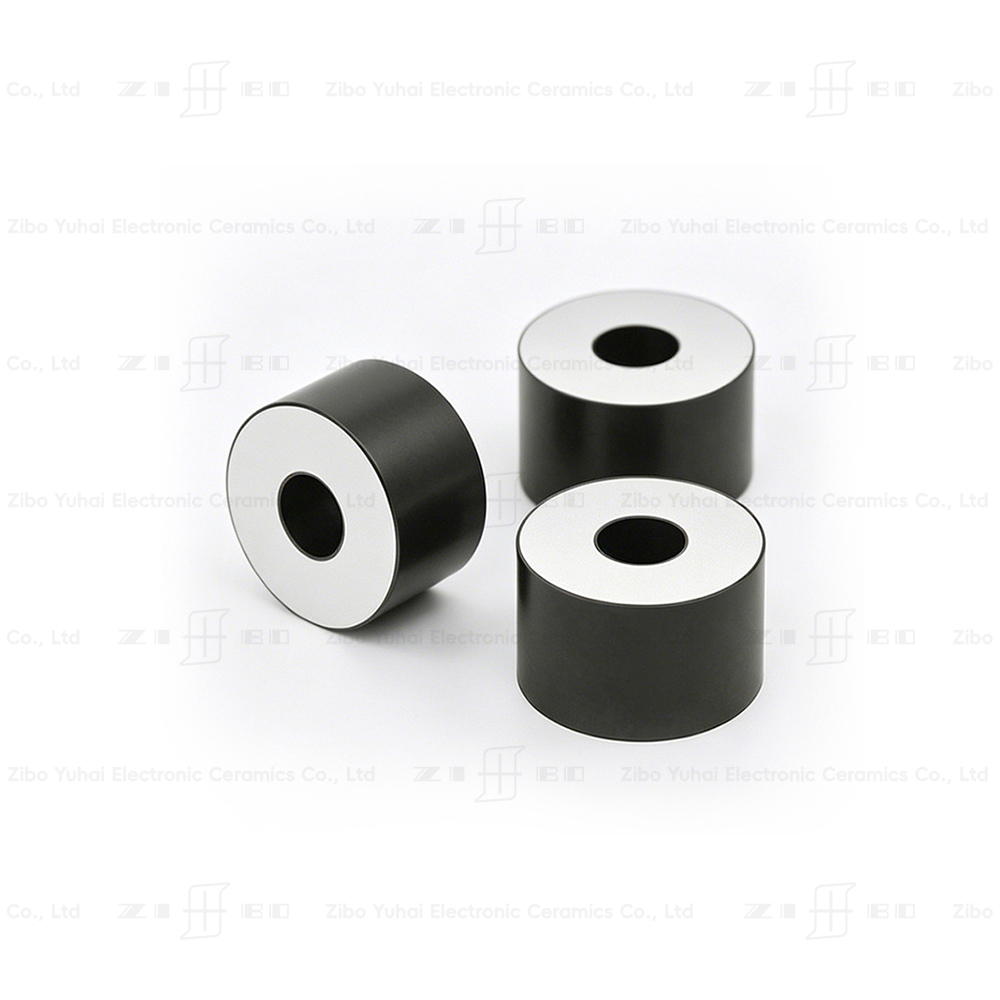

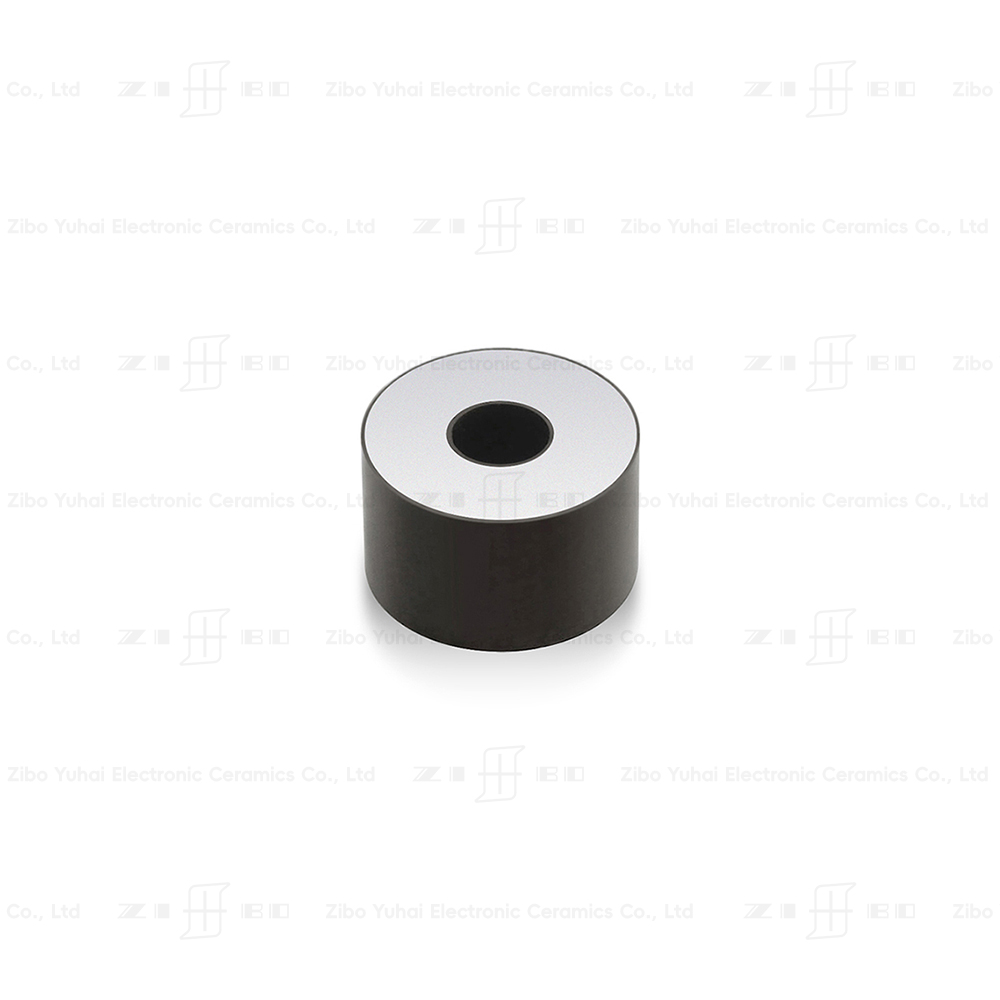

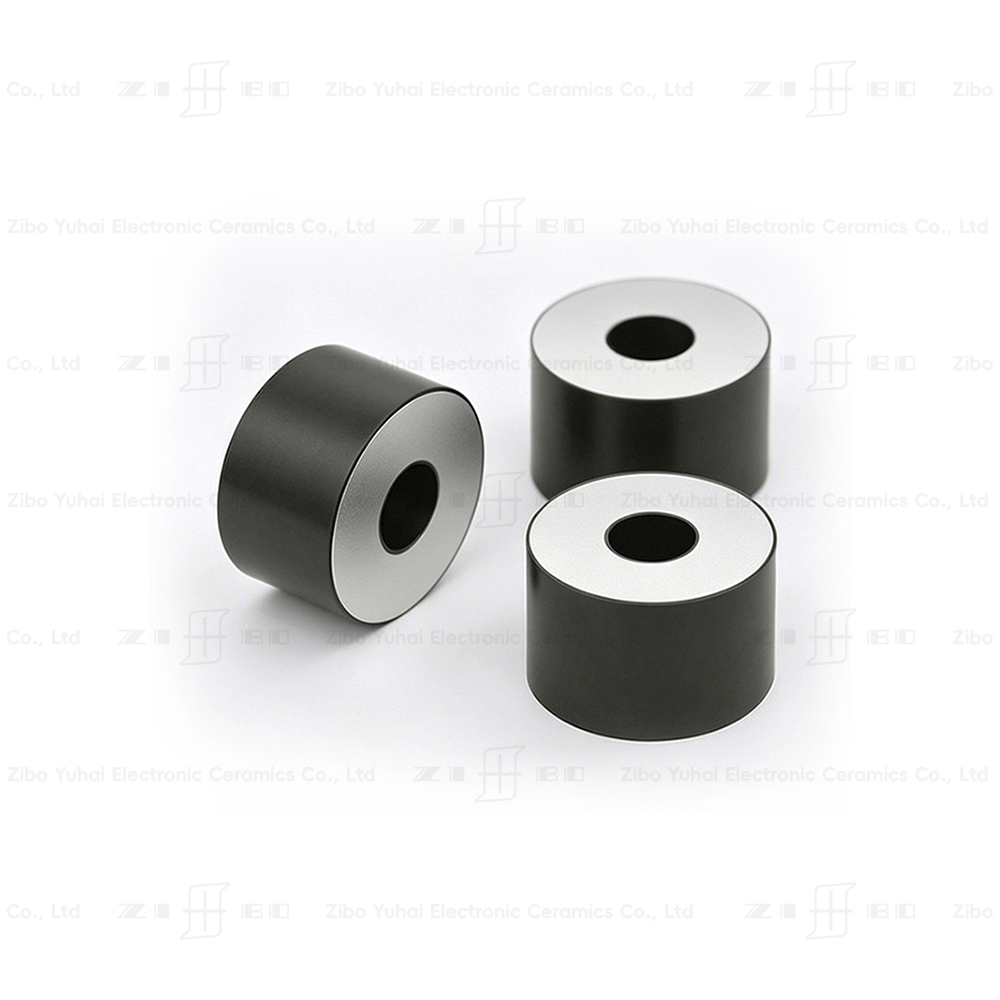

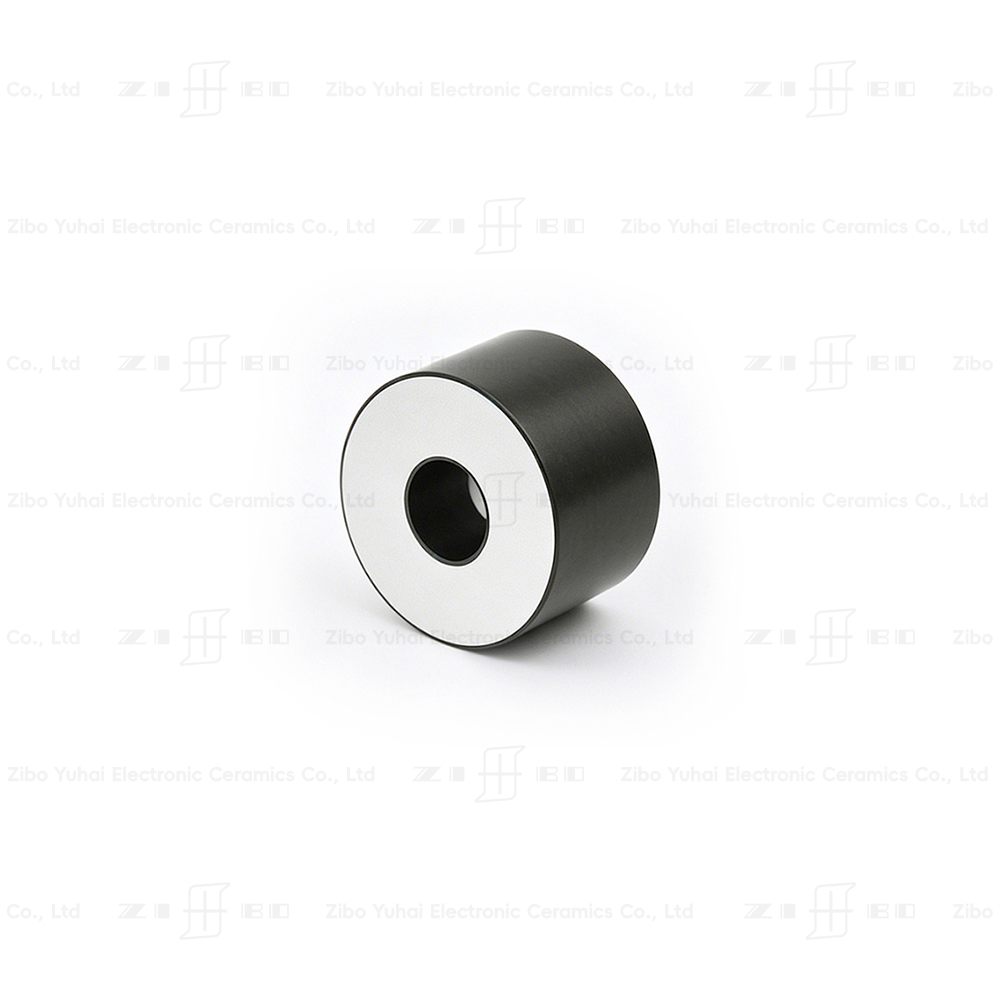

Piezo ceramic ring
Material: PCrN-4 (also called PZT-SF, hard PZT material, dielectric constant 1600)
PCrN-4 is a modified hard PZT dual function of receiver and transmiting transducer.
Piezoelectric Technical data:
Dimensions: OD 12mm, ID7mm, thickness 4mm
Radial Frequency Fr: 385KHz ± 5%
Resonate Impedance R<20 Ω
Electromechanical coupling coefficient K33: > 0.60
Dielectric Loss tg δ: <0.5
Static capacitance Cs: 271pF± 12.5%
Piezo discharge constant d33 > 320
Test Condition: 25±3 °C 40~70% R.H.
fr, Zm, Kr => Radial mode vibration
Cs tanδ => LCR meter at 1KHz 1Vrms
SYMBOL
DEFINITION
UNITS
ε 33 T , ε 11 T
&nb…
