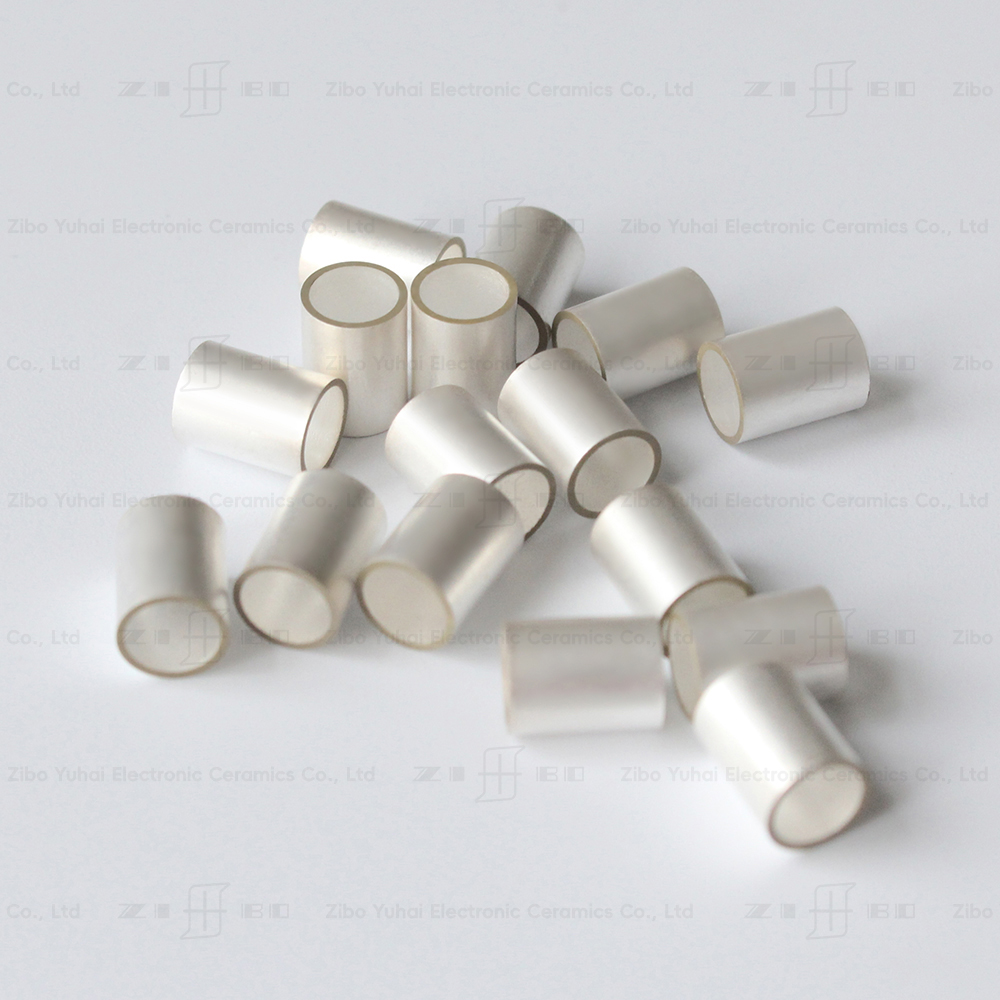

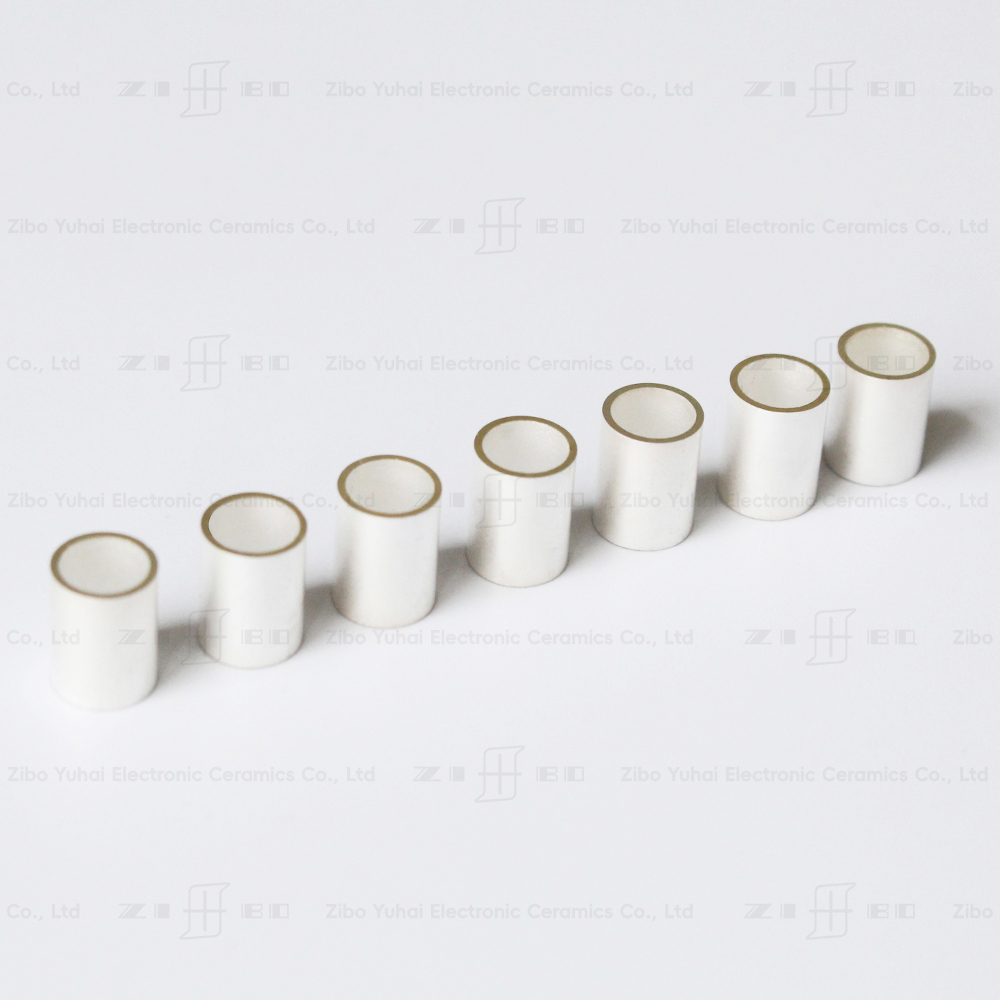

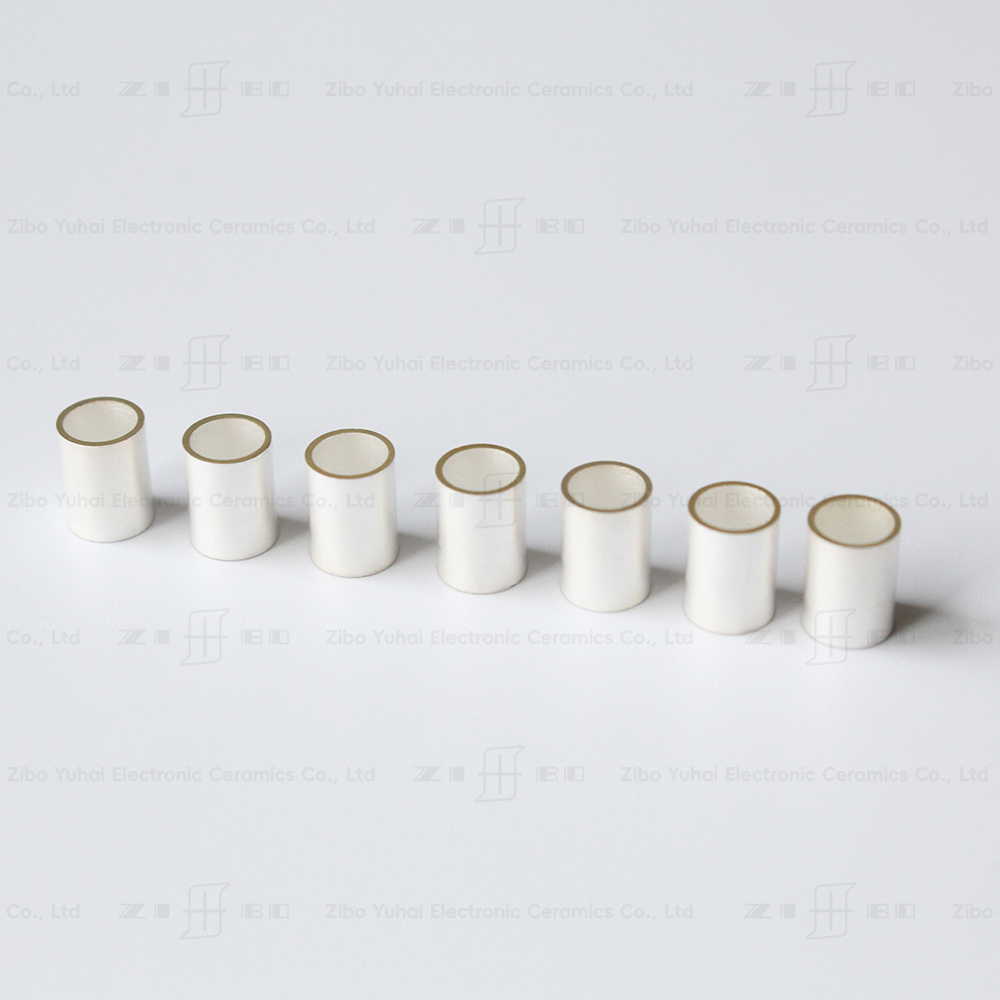

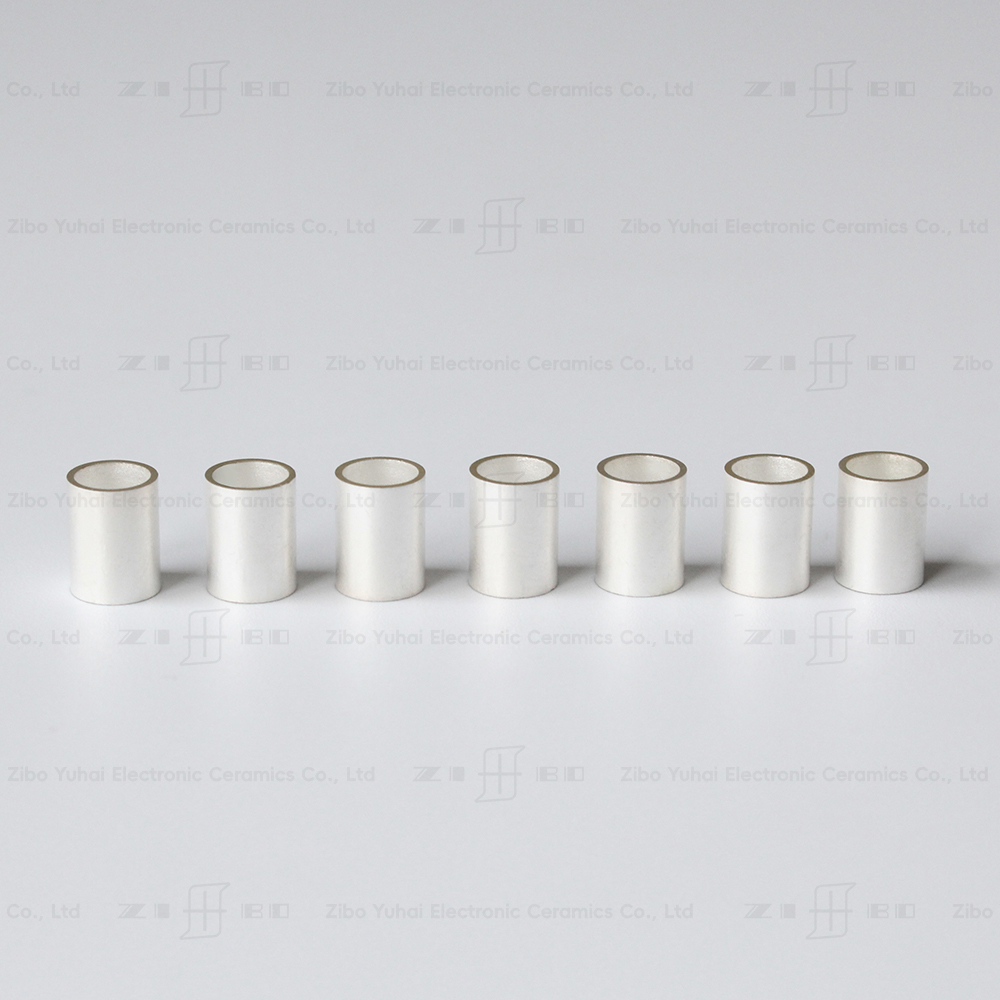

Small Size Piezo Ceramic Tubes 165KHz

Small size piezoelectric ceramic tube, customs piezo tube component Features :    Sizes from 6mm up to 180mm Thickness from 0.5mm up to 15mm Choice of metallisation (Silver, Nickel, Gold and others on request) Wide choice of PZT formulations Application: high sensitive ultrasonic pickups,  hydrophones Piezoelectric Ceramic Material:  PZT-52 (modified PZT-5A, dielectric constant 2400) Piezoelectric elements technical data: Dimensions:  outer diameter 6mm, inner diamter 5mm,  height 8 mm  Radial Frequency Fr:   165KHz ± 2KHz Bandwidth ΔF  > 2200Hz Dielectric Loss tg δ:  ≤ 2% Static capacitance Cs: …
