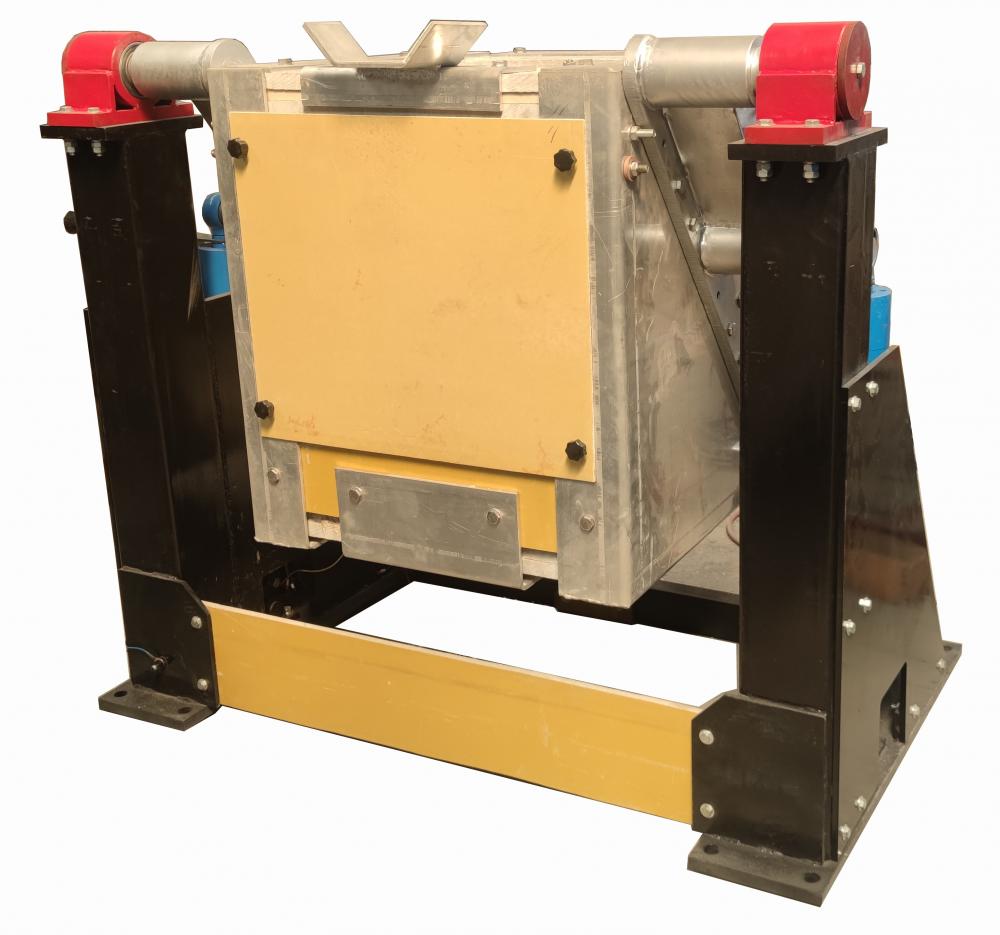

150kg medium frequency melting furnace with servo control

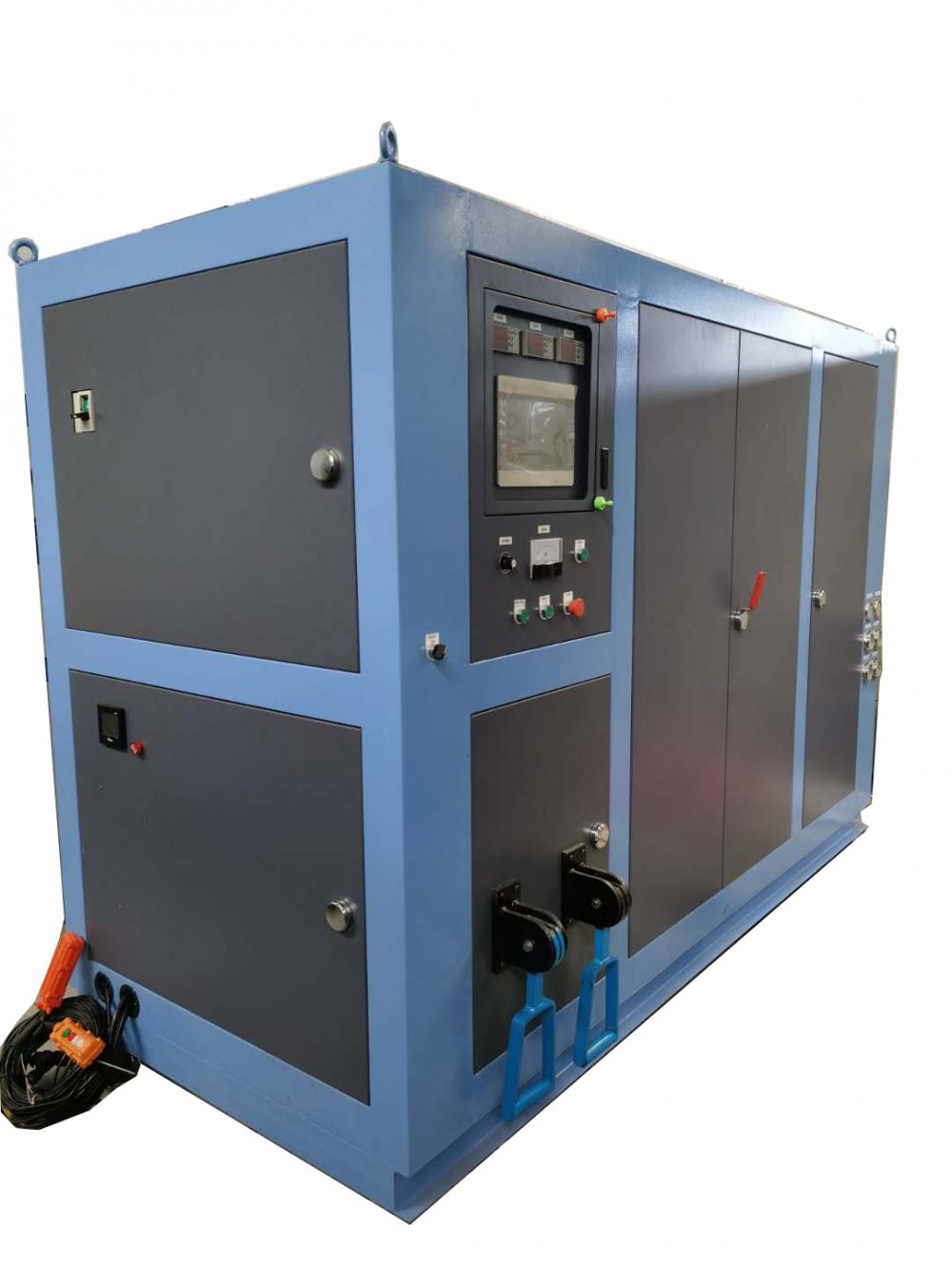

150kg medium frequency melting furnace with servo control 1. rated power: 250KW; 2. power factor 0.95; 3. melting rate ≤ 28min/ furnace; 4. the maximum temperature of molten steel is 1750 ℃; 5. the rated capacity of furnace body is 150kg*2; 6. furnace output voltage 1800V; 7. the new generation control board is adopted to improve the protection performance of the equipment and reduce the equipment failure rate; At the same time, there is no need for resistance wire and starting thyristor, which reduces the failure rate of the equipment again; 8. servo hydraulic furnace structure; 9. adopt series inverter mode; The power consumption of 1 ton of molten steel is about 600 degrees, which is about 240 degrees less than that of ordinary medium frequency furnace; Imported Fuji switch, Grundfos water pump, British Sima inverter diode. 10. the power cabinet has plc+ touch screen; Servo hydraulic furnace body is controlled by independent touch screen +plc.
