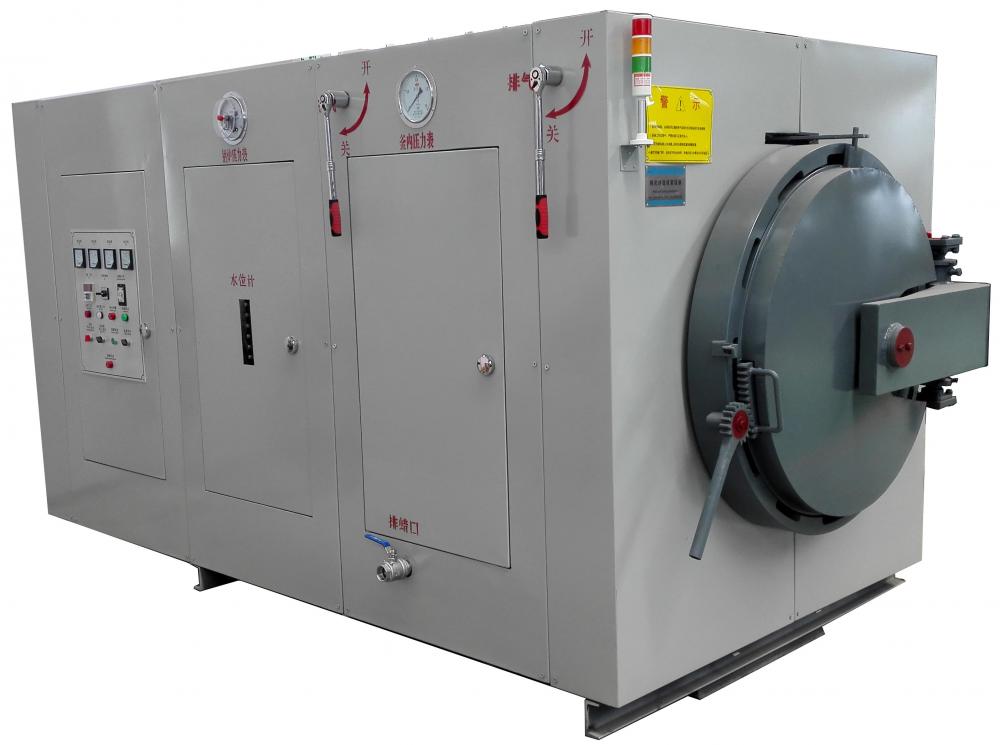

Dewaxing kettle machine 800mm
1. inner diameter of dewaxing kettle: φ eight hundred × 1000mm;
2. rated temperature: 180 ℃;
3. pressure regulating range: 0.3 ~ 0.8MPa;
4. rated steam charging time of dewaxing kettle: <5s;
5. installed power: 93kw;
6. water supply mode: full automatic + manual;
7. overall dimension: 2850mm (L) × 1700mm (W) × 2125mm (H);
8. equipment weight: 2.1t (ton);
9. stainless steel shield;
10. the sealing ring adopts U-shaped structure, and the outer door of the kettle is insulated to prevent scalding;
11. low voltage apparatus Schneider
12. thick wall heating pipe with better quality is adopted to increase its service life.
