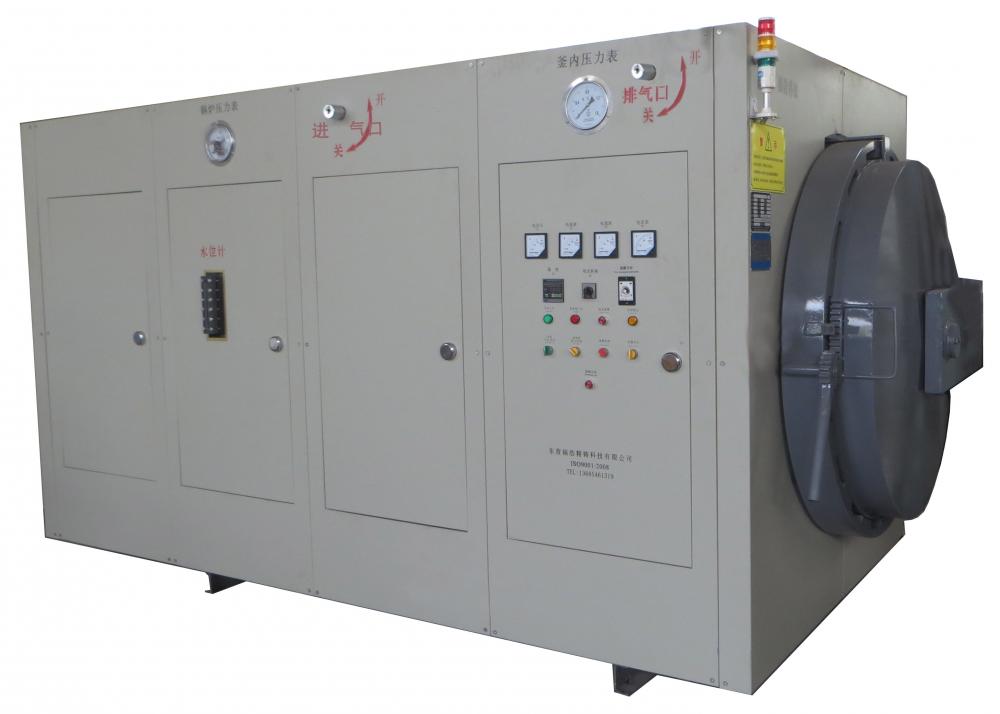

Dewaxing kettle machine 1200mm
1. inner diameter of dewaxing kettle: φ 1200 × 1400mm;
2. rated temperature: 180 ℃;
3. pressure regulating range: 0.3 ~ 0.8MPa;
4. 0.6MPa pressure balance time of dewaxing kettle: <5s;
5. installed power: 183kw;
6. water supply mode: full automatic + manual;
7. overall dimension: 3900mm (L) × 1950mm (W) × 2200mm (H);
8. double protection control of pressure and temperature, mechanical safety interlock and interlock of charging valve and kettle door.
9. stainless steel shield;
10. the sealing ring adopts U-shaped structure, and the outer door of the kettle is insulated to prevent scalding;
11. Schneider for low voltage apparatus.
12. thick wall heating pipe with better quality is adopted to increase its service life.
