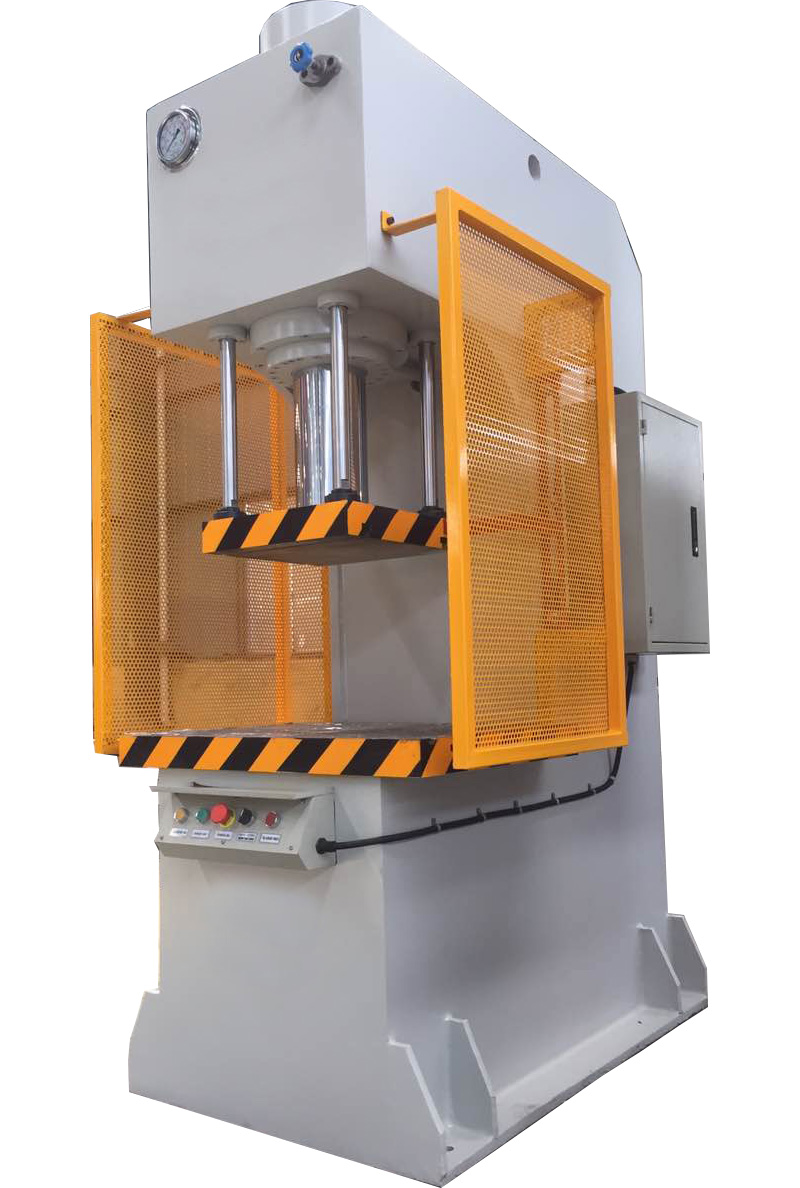

C Type Shaping Machine

C Type Shaping Machine 1. shaping pressure 100t; 2. system pressure: 22Mpa; 3. cylinder stroke 450 mm; 4. the maximum mold opening height is 750 mm; 5. the minimum clamping height is 300mm; 6. bottom worktable 700*600mm; 7. pressing plate 405*405mm; 8. equipment power: 5.5kW; 9. overall dimension: 1400*920*2560mm; 10. the machine body is welded from steel plate, with high strength and good rigidity. The machine body is an open structure, with large working space and convenient operation, which is suitable for large parts shaping; 11. the C-shaped structure is adopted, which is not constrained by the column and is convenient for taking and placing parts.
