Electronics Circuit Female PIN Connecting Component

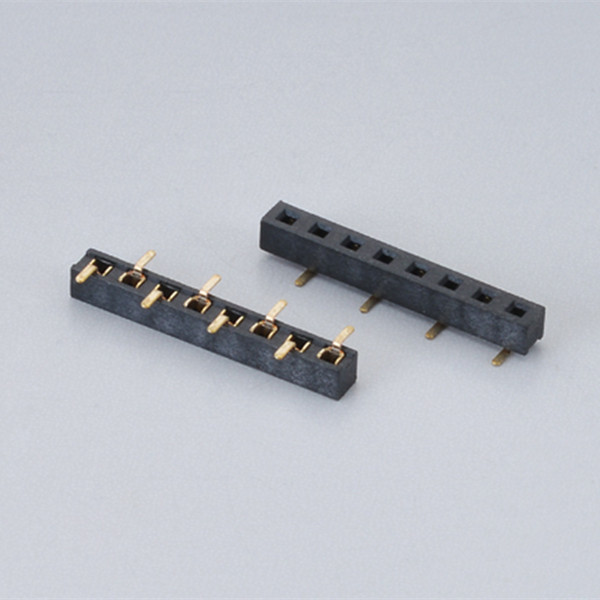

Electronics Circuit Female PIN Connecting Component 2.0mm pitch female connector-2.0x2.2 single row SMT Specification Description: Product Model:Pitch 2.0mm Nematic 2.0x2.2 Single Row SMT Plastic height: 2.20mm Pin position: 1*2P～1*40P Material: Terminal material: phosphorus copper Terminal plating: gold plated on nickel base Plastic material: PA6T,UL94V-0 Plastic colour: black    Electrical Characteristics: Rated current: 2.0 Amp Contact impedance: 20mΩ Max Insulation Resistance: 3000MΩ Min @ 500V DC Withstanding Voltage: 500V AC/1min  Mechanical Characteristics: Operating temperature: -40°C to +105°C Soldering temperature: 260+/-5°C, time: 5+/-0.5 sec Solderability: more than 90% of the soldered area @ Temperature: 230+/-5°C, Time: 3+/-0.5sec The 2.0mm Pitch Female Connector, specifically the 2.0x2.2 Single Row SMT variant, is a vital component in modern electronics and PCB (Printed Circuit Board) design. This co…
