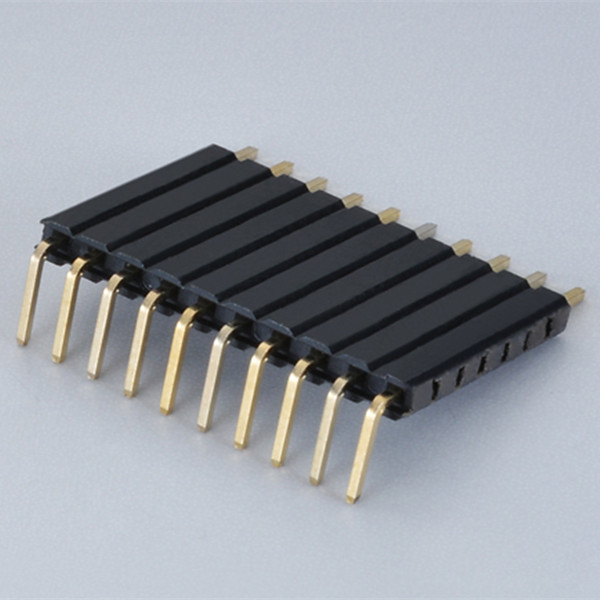

Height 14.0mm Pin Male Header Electrical Board Connector

Height 14.0mm Pin Male Header Electrical Control Board Connector 2.0mm Pitch Pin Male Header Connector-H:14.0 Single Row 90° Specification Description: Model No.: row of pins 2.0mm pitch H: 14.0 Single row 90° Plastic height: 14.0mm Pin position: 1*1P～1*40P Material: Pin material: brass Plating: nickel with gold plating / nickel with tin plating Plastic Material: PBT,UL94V-0/PA6T,UL94V-0 Plastic colour: black  Electrical Characteristics: Rated current: 2.0 Amp Contact impedance: 20mΩ Max Insulation Resistance: 3000MΩ Min @ 500V DC Withstanding Voltage: 500V AC/1min Mechanical Characteristics: Quadrature pin size: 0.50mm SQ Operating temperature: -40°C to +105°C Soldering temperature (PBT material): 230+/-5°C, time: 5+/-0.5 sec. Soldering temperature (PA6T material): 260+/-5°C, time: 5+/-0.5 sec. Solderability (PBT material): more than 90% of the soldered area @ Temperature: 230+/-5°C, Time: 3+/-0.5sec Tin-on-tin (PA6T):…
